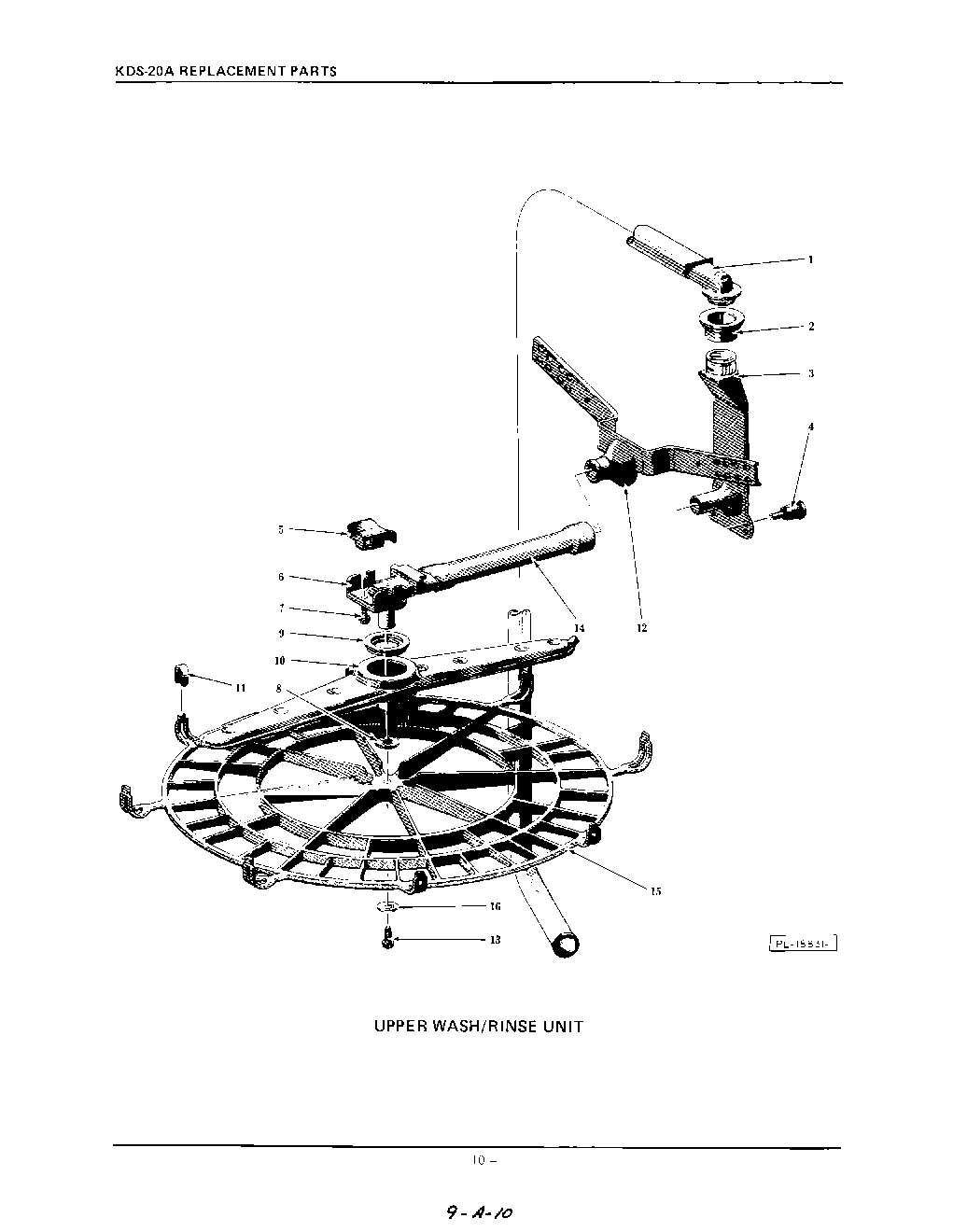

KDS20A 06 – UPPER WASH/RINSE
Written by
in
KDS20A 06 – UPPER WASH/RINSE
Products
Position
Product
1
Tube & Connector Assy
2
Connector – Vertical Conduit
3
Conduit – Vertical
4
Retainer – Conduit
5
Retainer – Manifold
6
Manifold – Upper Arm
8
Bearing – Arm (Bottom)
9
Bearing – Arm (Top)
10
Wash/Rinse Arm Assy
11
Clip – Arm Guard
12
Receiver – Manifold Tube
13
Special Screw – Hex Washer Hd
14
Tube (Manifold to Receiver)
15
Guard – Arm (KDS-21, KDI-61, KDI-21D, KDC-21D)
16
Washer
←
