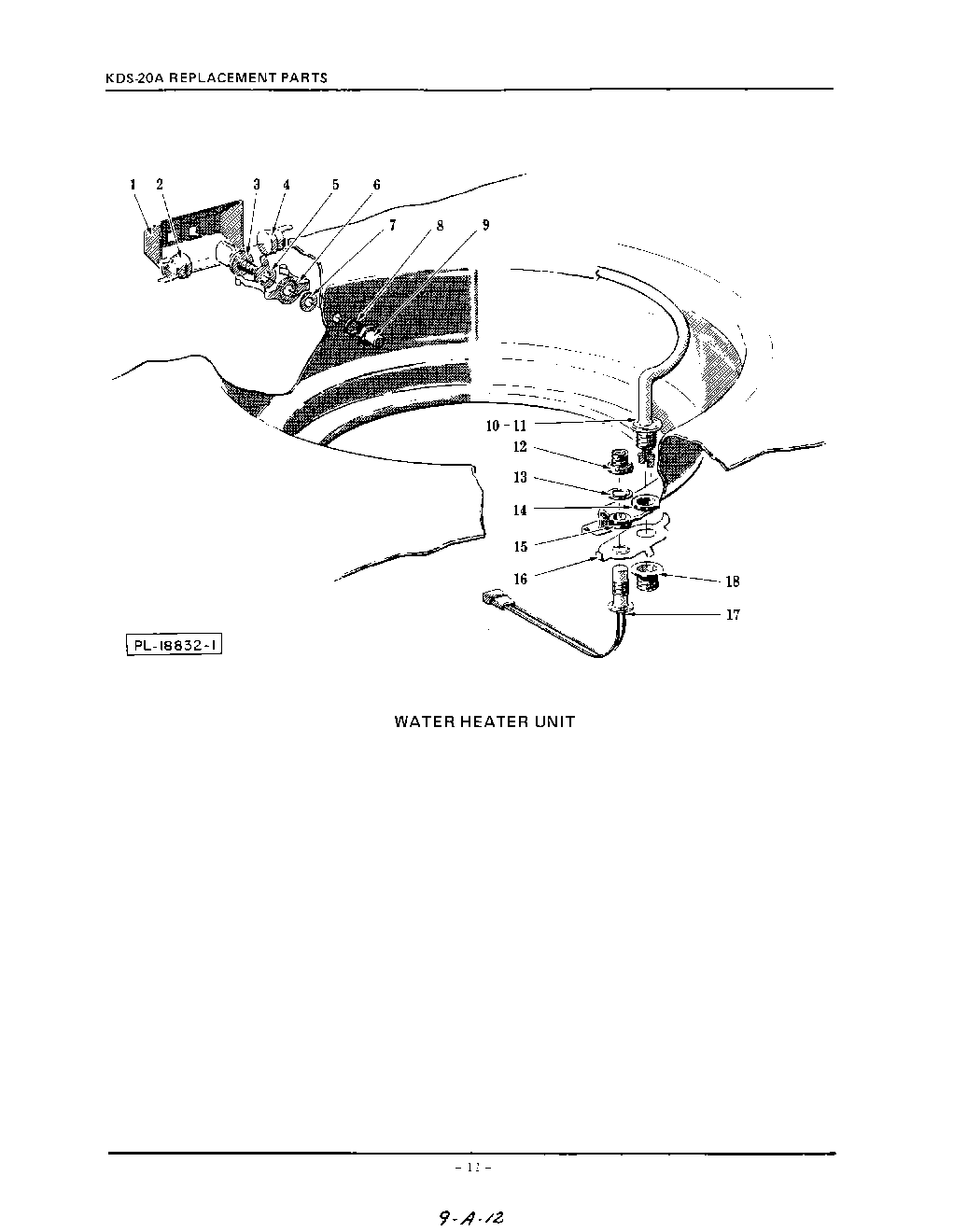

KDS20A 07 – WATER HEATER

Products

PositionProduct
1Cover – Thermostat
2Protector – Control
3Thumb Screw – Thermostat Mounting
4Thermostat
5Terminal – Grounding
6Spring – Thermostat Mounting
7Gasket – Heat Transfer
8“D“ Ring
9Nut – Heat Sensing
10Water Heat Element Assy. (115 V., 60 Hz.) (Incls. items No.11, 14 & 18)
11Washer
12Nut – Thermostat Mounting
13Washer – Thermostat
14Grommet – Heat Element
15Grommet – Thermostat
16Clip – Ground & Anti-Rotate
17Thermostat & Plug Assy
18Nut – Heat Element
