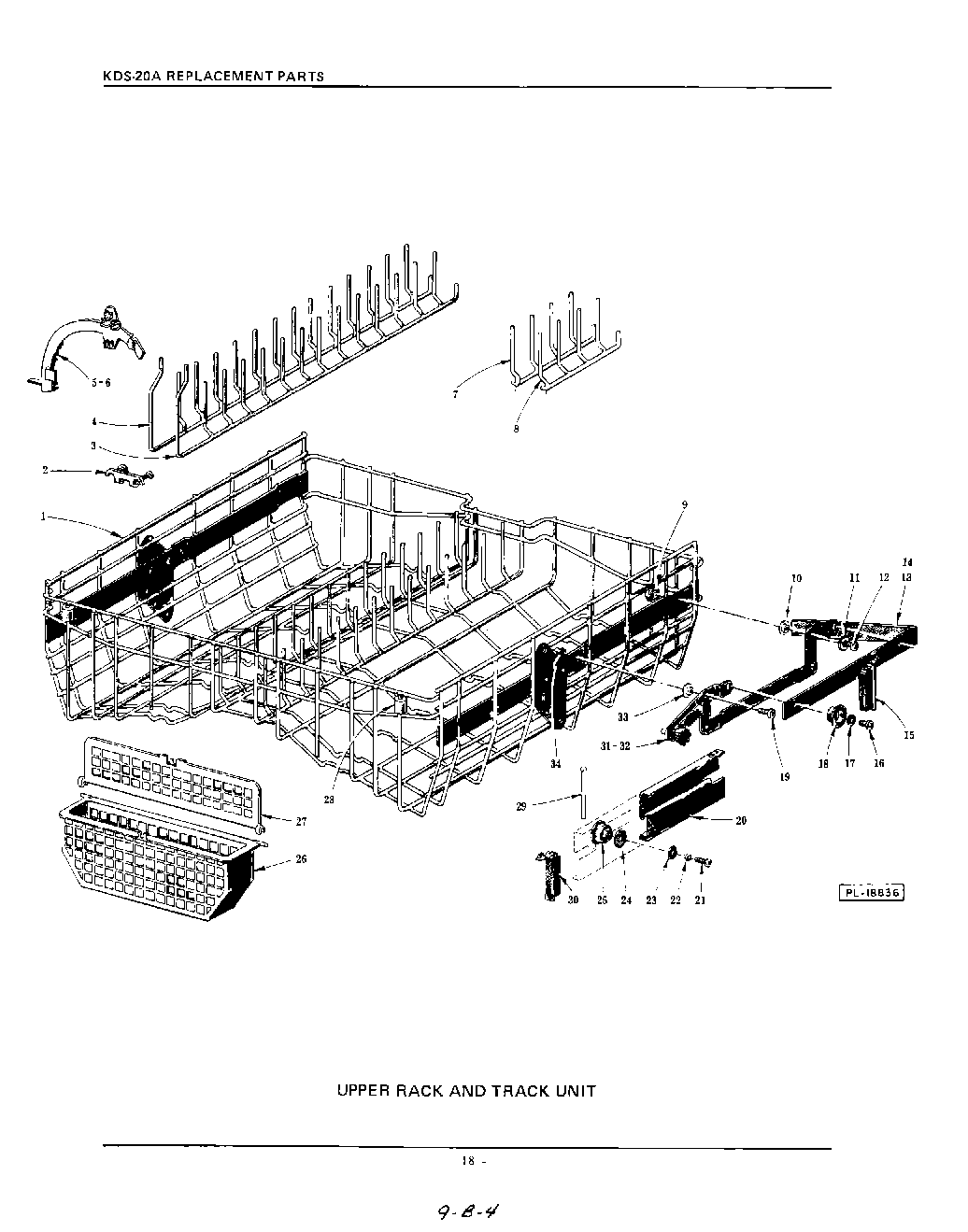

KDS20A 11 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assy. (Incls. items No.2 thru 8 & 28)
2	Clip - Partition Retaining
5	Quadrant - Flexo Divider (L.H.)
6	Quadrant - Flexo Divider (R.H.) (Not Shown)
7	Partition - Upper Rack (R.H., Inside)
8	Partition - Upper Rack (R.H., Outside)
11	Washer - Rack
13	Lift - Receiver (R.H.)
14	Lift - Receiver (L.H.) (Not Shown)
16	Mach. Screw 8-32 x 1/4 Phil. Pan Hd. ``Nylok``
17	Washer
18	Roller - Upper Rack
19	Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., Type B
20	Track - Rack
21	Mach. Screw - No.10-32 x 7/16`` Phil. Truss Hd
22	Washer - No.10 ``Nyltite``
23	Washer - Sealing
24	Washer - Spacing (1/32`` Thk.)
25	Stud & Roller Assy
26	Basket - Small Items
27	Lid - Small Items Basket
28	Bumper - Upper Rack
29	Stud - Bumper Retaining
30	Bumper - Rack Track
31	R.H. Adjustable Rack Track Mech
32	L.H. Adjustable Rack Track Mech. (Not Shown)
33	Bearing & Spacer - Rack Roller
34	Nut - Roller
