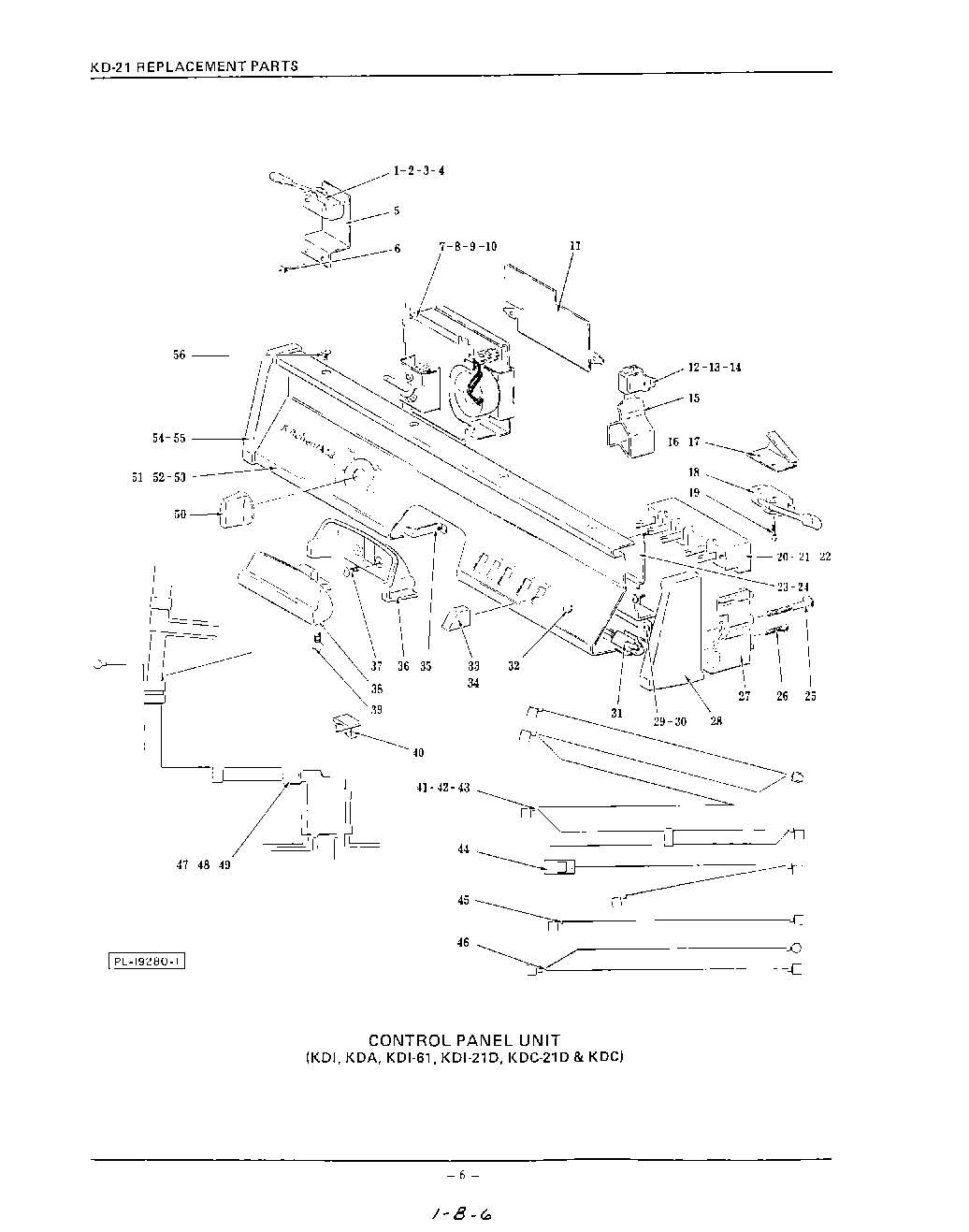

KDS21 04 – KDI, KDA, KDI-61, KDI-21D, KDC-21,

Products

Position	Product
1	Interlock Switch & Bracket Assy. (Incls. items No.2, 3, 4 & 5) (KDA)
3	Washer
5	Mounting Bracket – Interlock Switch
7	Timer Assy. (115 V., 60 Hz.) (KDI)
8	Timer Assy. (115 V., 60 Hz.) (KDA)
9	Timer Assy. (115 V., 60 Hz.) (KDC)
11	Insulator – Harness
12	Anchor – Cancel Spring
13	Spacer – Spring
14	Pop Rivet – 1/8“ Open End
15	Spring – Switch Cancel
16	Bracket – Interlock Switch (KDA)
17	Special Nut – No.6-32 “Palnut“
18	Switch – Interlock
19	Mach. Screw – No.6-32 x 7/8“ Rd. Hd
20	Switch – Program (KDI) (5 Button)
21	Switch – Program (KDB-21)
22	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
23	Bracket – Program Switch
25	Screw & Washer Assy
26	Self-Tapping Screw – No.8-32 x 7/8“ Phil. Pan Hd., Type F
27	Spacer – End Cap (R.H.)
28	Cap – End (R.H.)
29	Clip – Grounding (Front Panel)
30	WPL SD1311
31	WPL 241572
32	WPL 2411572
33	WPL 242406
34	326789 Whirlpool Surface Element 8 Inch
35	Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd.,
36	WPL 242422
37	WPL SC11752
38	WPL 242414
39	WPL SC1714
40	WPL 242641
41	WPL 2424421
42	WPL 2424422
43	WPL 242444
44	WPL 116193
45	Lead Assy. (Interlock Switch to Program Switch)
46	WPL 242445
47	WPL 242439
48	WPL 242441
49	WPL 242601
50	WPL 241537
51	WPL 2424203
51	WPL 242612
52	WPL 2424204
53	WPL 242518
54	WPL 2424132
55	WPL 2424942
56	WPL 2424214
56	WPL 106311
56	WPL 2424213
56	WPL SD2227
56	WPL 242519
