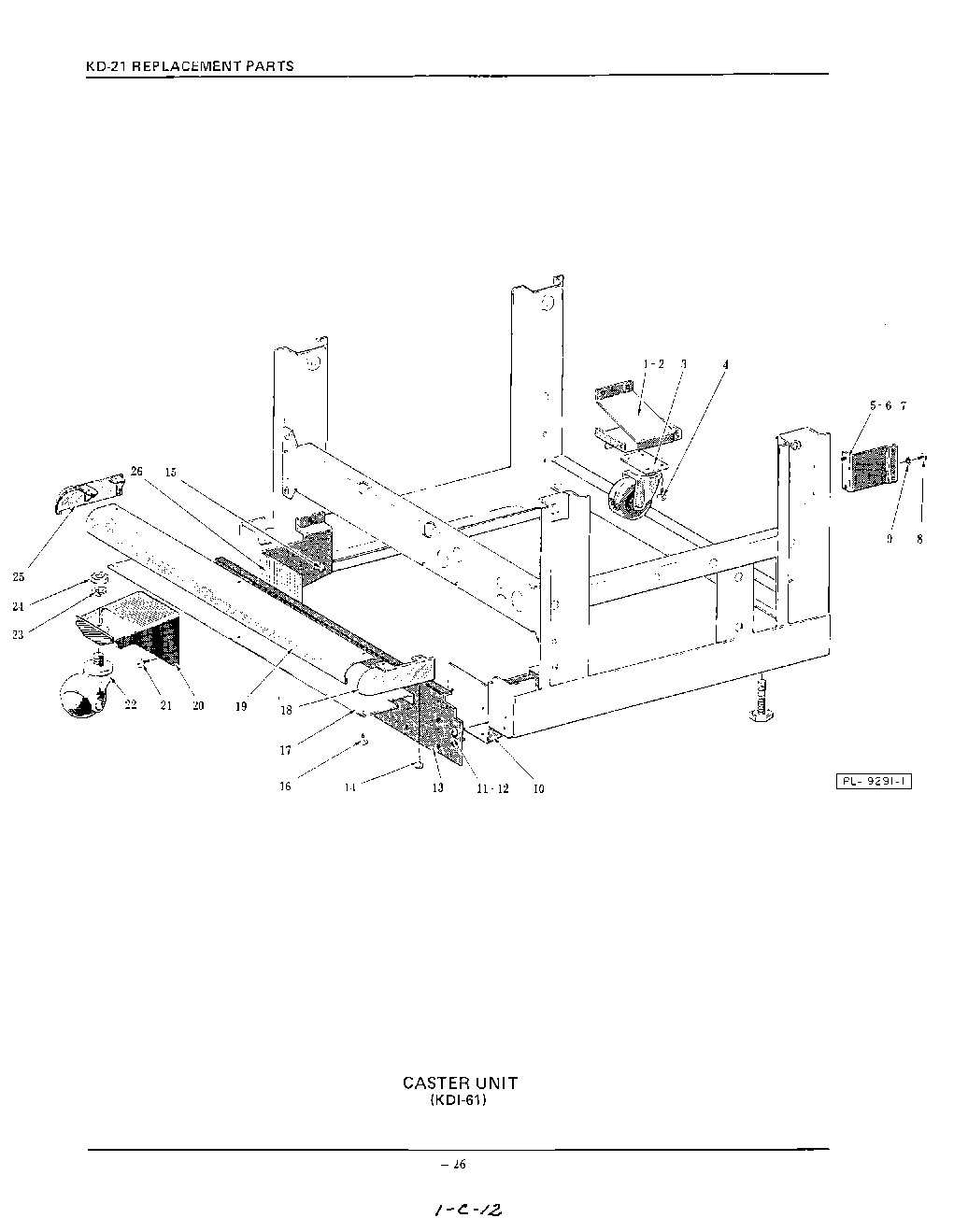

KDS21 15 – CASTER KDI-61

Products

Position	Product
1	Bracket – Rear Caster
3	Caster – Rear
5	Bracket – Side Panel Mounting
8	Self-Tapping Screw 10-16 x 5/16 Phil. Truss Hd., Type AB
10	Support – Front Caster Bracket (R.H.)
11	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
12	Lock Washer
13	Kickboard
14	Self-Tapping Screw 10-16 x 3/8 Ind. Hex Hd., Type AB
15	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
16	Self-Tapping Screw 6-20 x 3/8 Phil. Rd. Hd., Type AB
17	Barrier – Front Panel
18	End Cap – Caster Trim (R.H.)
19	Trim – Front Caster
20	Bracket – Front Caster
21	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
22	Caster – Front
23	Lock Washer – 3/8“ Light
24	Jam Nut 3/8-16 Hex Fin
25	End Cap – Caster Trim (L.H.)
26	Support – Front Caster Bracket (L.H.)
