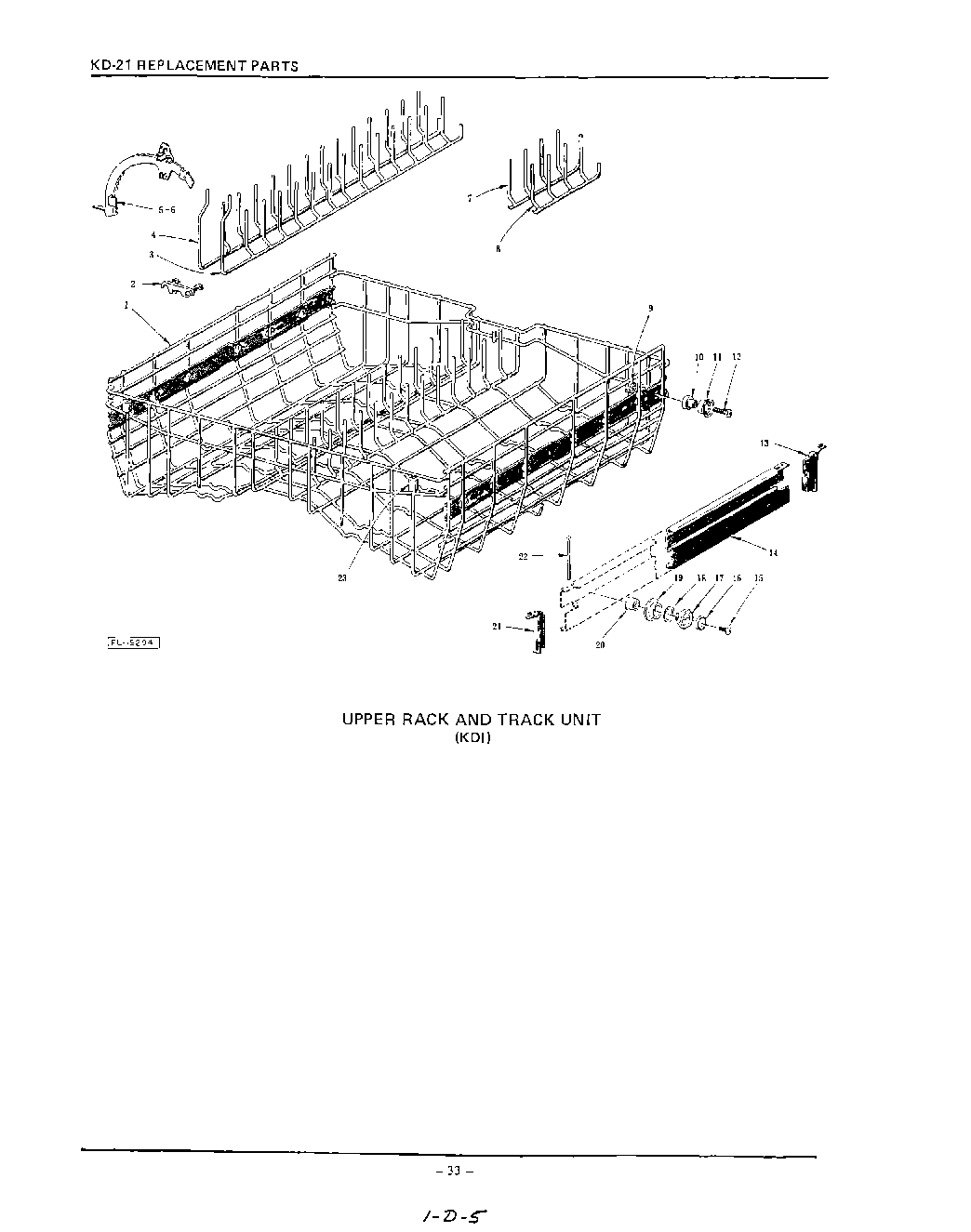

KDS21 19 – KDI

Products

Position	Product
1	Upper Rack Assy. (KDB-21SE)
1	Upper Rack Assy. (Incls. items No.2 thru 12 & 26) /KDI-21
2	Clip – Partition Retaining
5	Quadrant – Flexo Divider (L.H.)
6	Quadrant – Flexo Divider (R.H.) (Not Shown)
7	Partition – Upper Rack (R.H., Inside)
8	Partition – Upper Rack (R.H., Outside)
9	Nut – Roller
10	Bearing & Spacer – Rack Roller
11	Roller – Upper Rack Track
12	Self-Tapping Screw 10-16 x 1 Phil. Pan Hd., Type B
14	Track – Rack
15	Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B
16	Gasket – Rack Stud
17	Stud – Rack Roller
18	Washer – Roller Spacing
19	Roller – Rack Track
20	Bushing – Rack Track
21	Bumper – Rack Track
22	Stud – Bumper Retaining
23	Bumper – Upper Rack
