KDSC21A 03 – KDS

Products

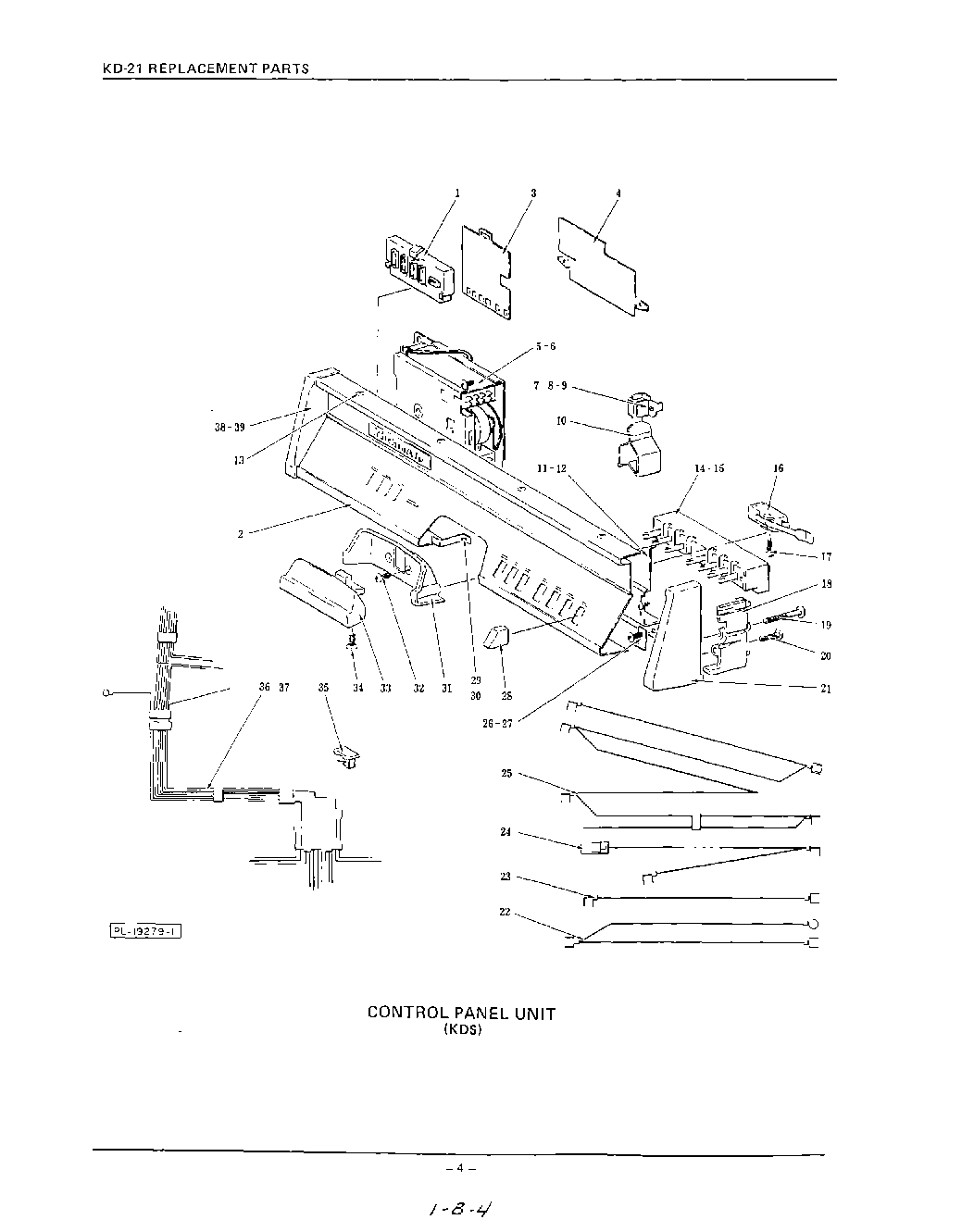

Position	Product
1	Sequence Light Assy
2	Control Panel (KDS-21)
2	Control Panel (KDSM-21) & KDSM-21A
2	Control Panel (KDM-21)
2	Control Panel (KDSC-21) & KDSC-21A
3	Insulator – Light Package
4	Insulator – Harness
5	Timer Assy. (115 V., 60 Hz.)
7	Anchor – Cancel Spring
8	Spacer – Spring
9	Pop Rivet – 1/8“ Open End
10	Spring – Switch Cancel
11	Bracket – Program Switch
13	WPL SD2227
14	Switch – Program
15	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
16	Switch – Interlock
17	Self-Tapping Screw 6-32 x 7/8 Phil. Pan Hd., Type F
18	Spacer – End Cap (R.H.)
19	Screw & Washer Assy
20	Self-Tapping Screw – No.8-32 x 7/8“ Phil. Pan Hd., Type F
21	Cap – End (R.H.)
22	WPL 242445
23	Lead Assy. (Interlock Switch to Program Switch)
24	WPL 116193
25	WPL 2424421
26	Clip – Grounding (Front Panel)
27	WPL SD1311
28	WPL 242406
29	326789 Whirlpool Surface Element 8 Inch
30	Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd.,
31	WPL 242422
32	WPL SC11752
33	WPL 242414
34	WPL SC1714
35	WPL 242641
36	WPL 242437
37	WPL SD843
38	WPL 2424132
39	WPL 2424942
39	WPL 2424211
