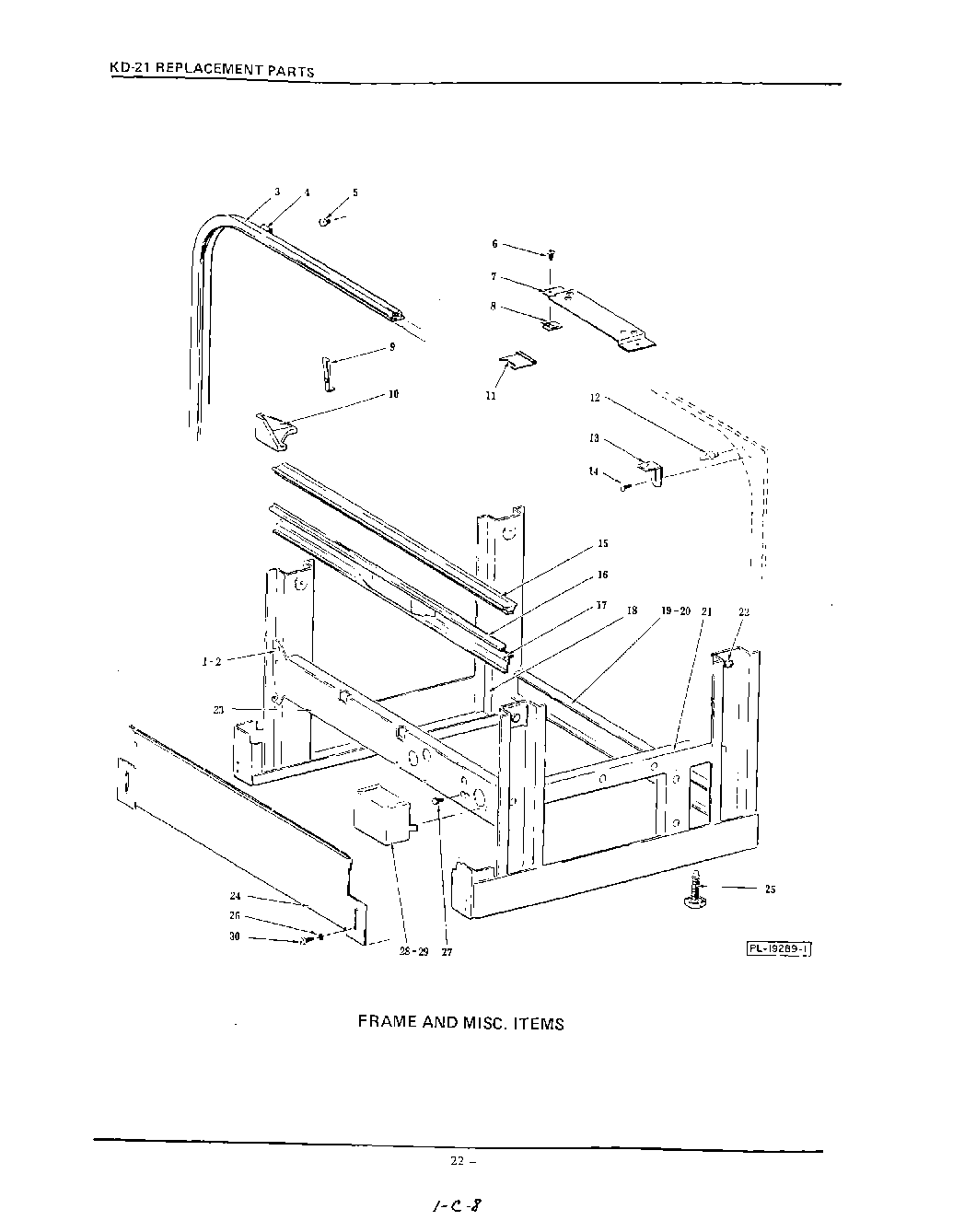

KDSC21A 13 – FRAME AND MISCELLANEOUS

Products

Position	Product
	WPL M83745
	WPL 242630
1	Short Frame Assy. (Incls. items No.2, 18, 19, 20, 21 & 23)
3	Door Seal Assy. (Incls. item No.4)
4	Clip - Seal
5	Bumper - Door
6	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
7	Protector - Upper Water Inlet
8	Speed Nut - No.10, Type U
9	Clip - Corner Seal
10	Seal - Corner
11	Keeper - Latch
12	Actuator - Interlock Switch
13	Bracket - Top Panel Anchor
14	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
15	Channel - Evaporation
16	Support - Evaporation Channel
17	Mach. Screw - No.10-32 x 1/2`` Phil. Truss Hd., CA Pt. ``Taptite``
18	Frame Assy. (L.H.)
19	Cross Frame - Rear
20	Screw & Lock Washer Assy. 10-16 x 5/8 Phil. Truss Hd., Type AB
21	Frame Assy. (R.H.)
22	Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT
23	Cross Frame - Front
24	Kick Board
25	Foot - Leveling (5/16`` -18 Thd.)
26	Lock Washer
27	Self-Tapping Screw 10-32 x 3/8 Indented Hex Washer Hd., Type T
28	Enclosure - Electrical Supply
29	Self-Tapping Screw 8-18 x 1/2 Phil. Bin
30	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
30	Tank & Frame As
