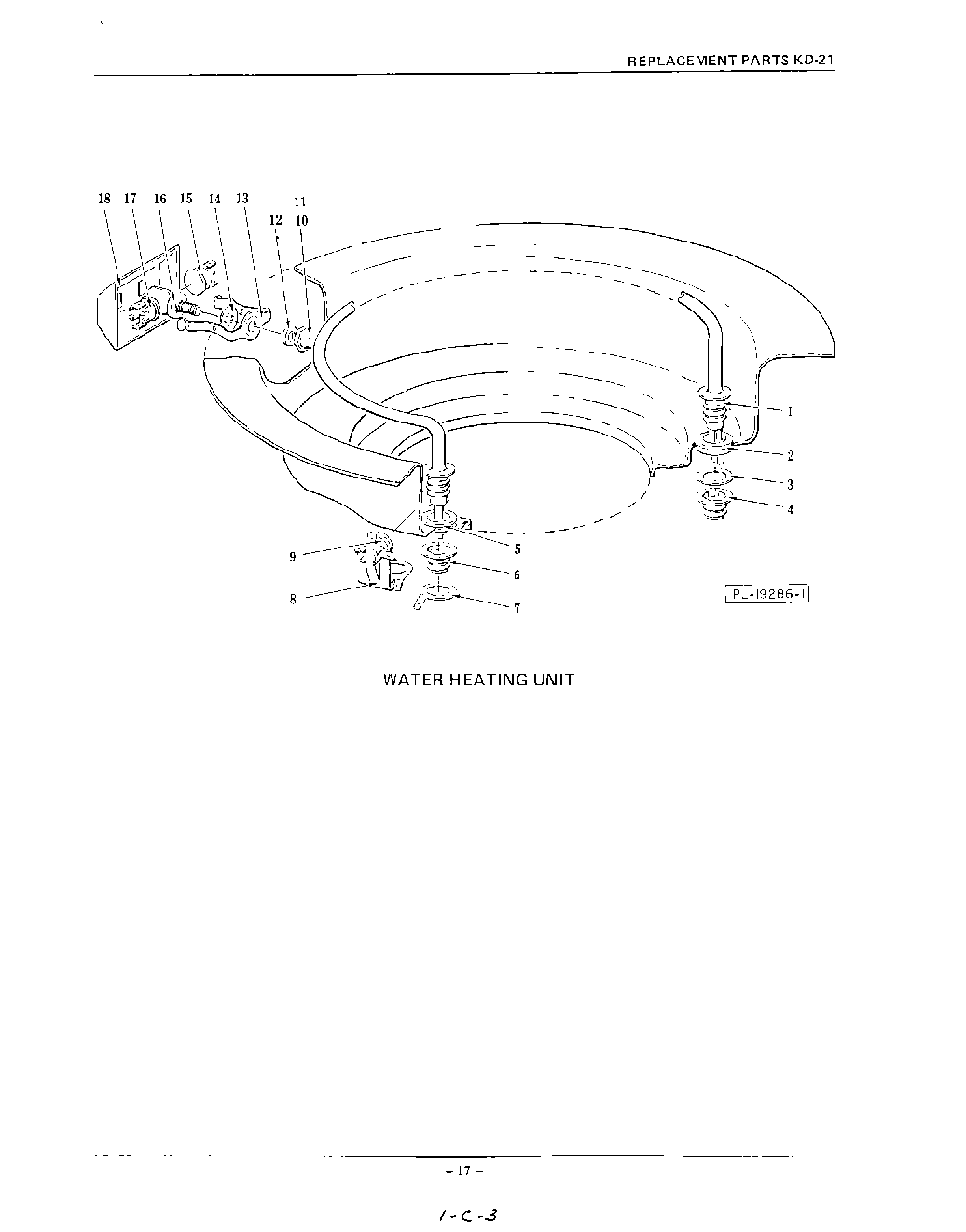

KDSM21 10 – WATER HEATING

Products

Position	Product
1	Water Heating Element Assy. (Incls. items No.2, 4, 5 & 6)
3	Washer
5	Grommet - Heat Element
6	Nut - Heat Element
7	Terminal - Grounding (Heat Element)
8	Bracket - Thermostat
9	Thermostat
10	Nut - Heat Sensing
11	``O`` Ring
12	Gasket - Heat Transfer
13	Spring - Thermostat Mounting
14	Terminal - Grounding
15	Thermostat - Heat Control
16	Screw - Thermostat Thumb
17	Protector - Heat Control
18	Cover - Thermostat
18	Lead Assy. (Thermoprotector) (Not Shown)
