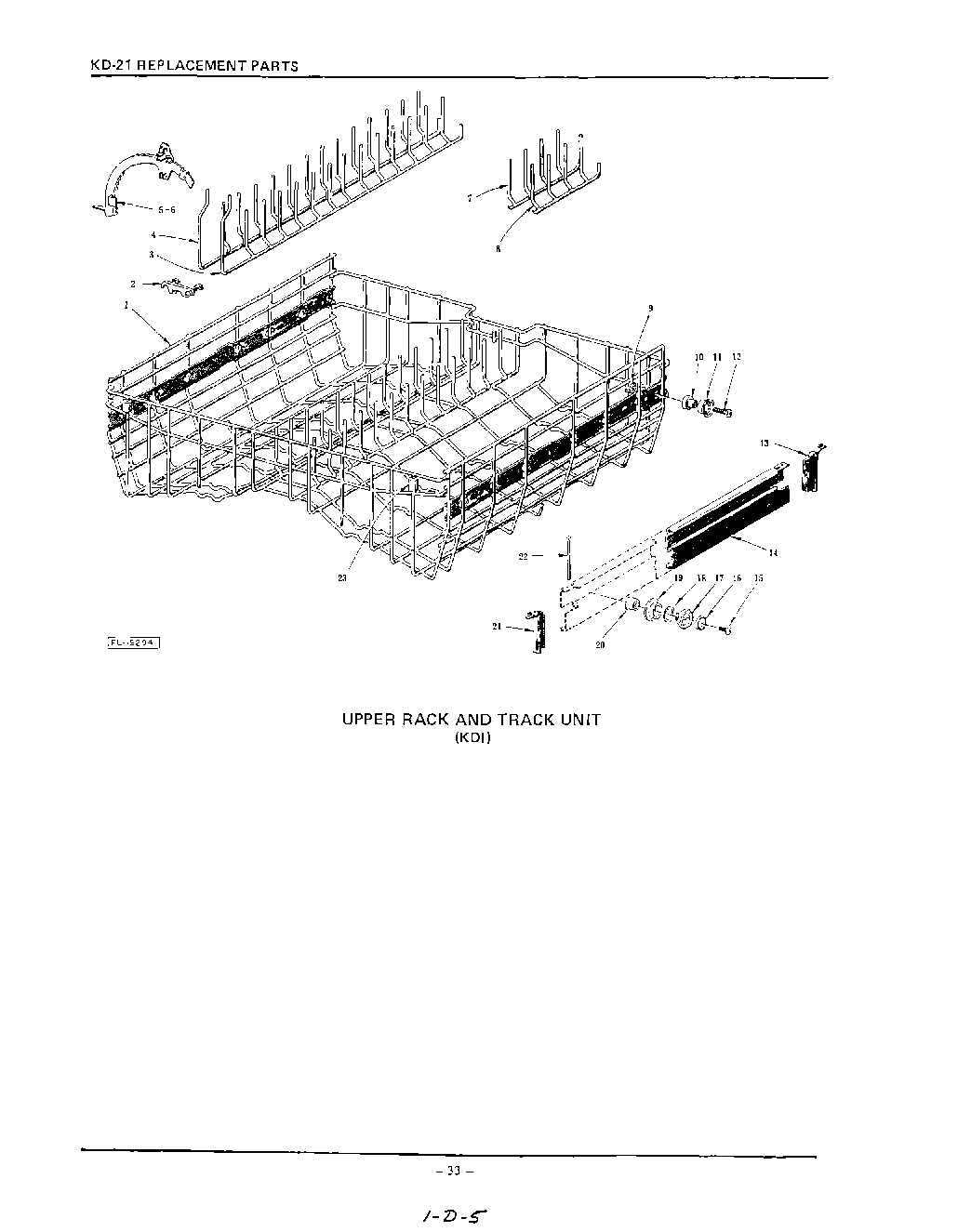

| 1 | Upper Rack Assy. (KDB-21SE) |
| 1 | Upper Rack Assy. (Incls. items No.2 thru 12 & 26) /KDI-21 |
| 2 | Clip - Partition Retaining |
| 5 | Quadrant - Flexo Divider (L.H.) |
| 6 | Quadrant - Flexo Divider (R.H.) (Not Shown) |
| 7 | Partition - Upper Rack (R.H., Inside) |
| 8 | Partition - Upper Rack (R.H., Outside) |
| 9 | Nut - Roller |
| 10 | Bearing & Spacer - Rack Roller |
| 11 | Roller - Upper Rack Track |
| 12 | Self-Tapping Screw 10-16 x 1 Phil. Pan Hd., Type B |
| 14 | Track - Rack |
| 15 | Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B |
| 16 | Gasket - Rack Stud |
| 17 | Stud - Rack Roller |
| 18 | Washer - Roller Spacing |
| 19 | Roller - Rack Track |
| 20 | Bushing - Rack Track |
| 21 | Bumper - Rack Track |
| 22 | Stud - Bumper Retaining |
| 23 | Bumper - Upper Rack |
