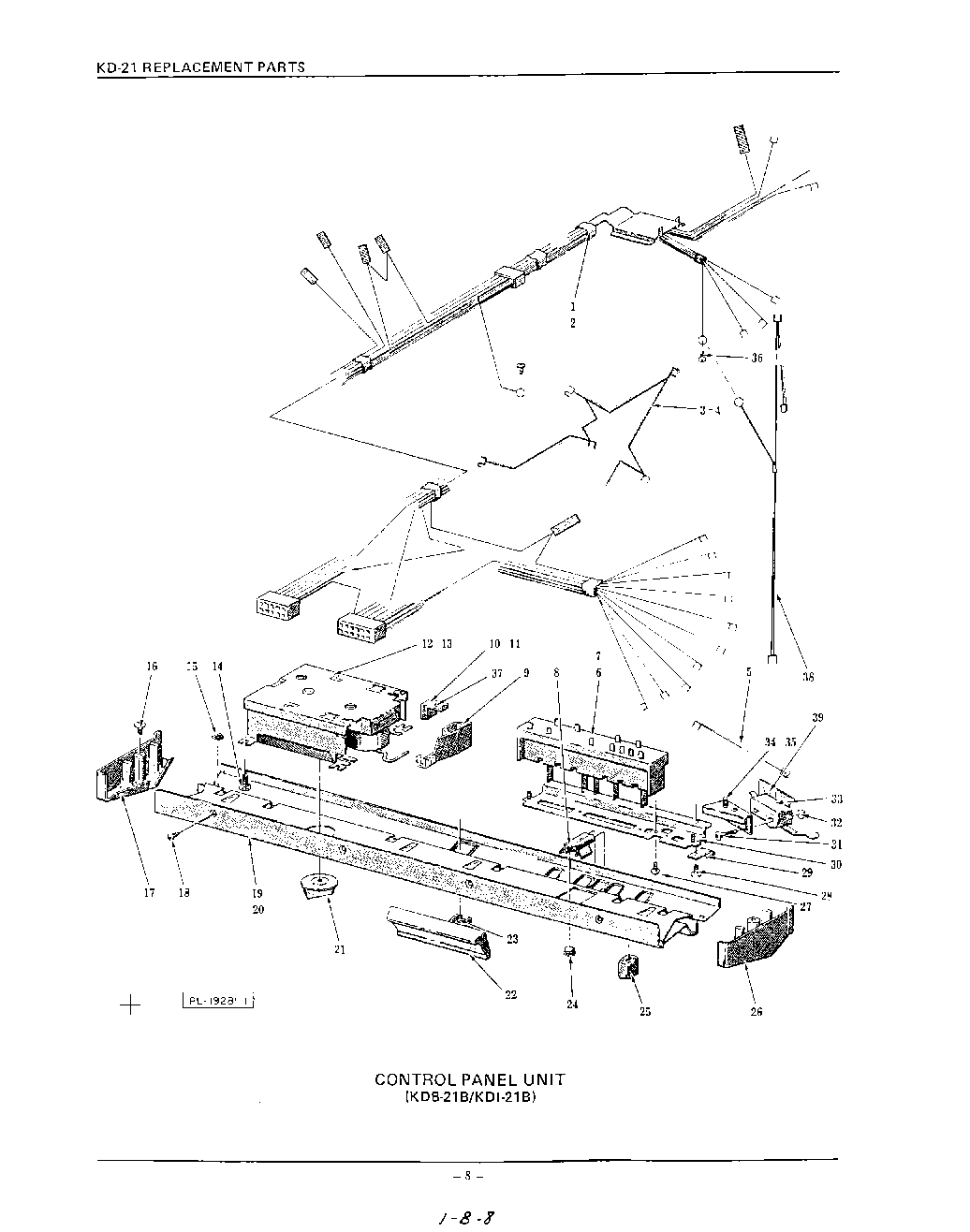

KDSM21A 05 – KDB-21B/KDI-21B

Products

Position	Product
1	Wiring Harness (Main) (KDB-21B)
2	WPL 242439
3	Wiring Harness (Lower) (KDB-21B)
4	WPL 2424422
5	Lead Assy. (Interlock Switch to Program Switch)
6	Switch - Program (KDB-21)
7	Switch - Program (KDI-21B) (5 Button)
8	WPL 241572
9	Spring - Switch Cancel
10	Spacer - Spring
11	Anchor - Cancel Spring
12	Timer - Interval (115 V., 60 Hz.) (KDB-21B)
13	Timer - Interval (115 V., 60 Hz.) (KDI-21B)
15	Special Nut - 1/8`` Stud ``Palnut``
16	Screw & Washer Assy
17	Cap - End (L.H.)
18	WPL SD2227
19	Trim Panel & Insert Assy. (KDB-21B)
20	WPL 242612
21	WPL 241537
22	Handle - Latch
23	WPL SC1714
24	WPL 2411572
25	Button - Push
26	Cap - End (R.H.)
27	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
29	Clip - Grounding (Front Panel)
30	Bracket - Program Switch
31	Mach. Screw - No.6-32 x 7/8`` Rd. Hd
32	Special Nut - No.6-32 ``Palnut``
33	Switch - Interlock
34	Bracket - Interlock Switch (KDA)
35	WPL SD1311
36	WPL SD843
37	Pop Rivet - 1/8`` Open End
38	WPL 242445
39	WPL 241302
39	WPL 242609
39	WPL 242613
