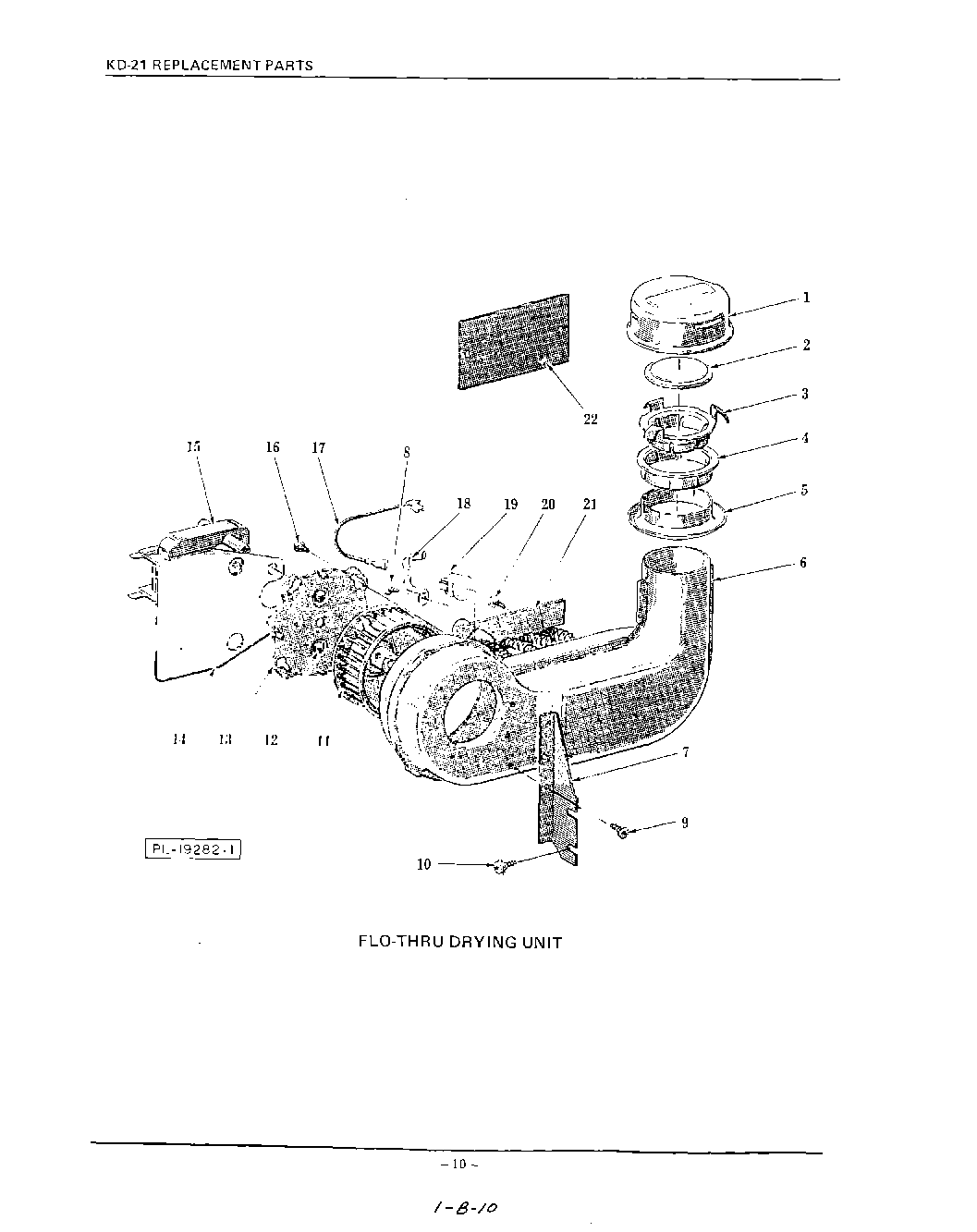

KDSM21A 06 – FLO-THRU DRYING

Products

Position	Product
1	Cover – Air Inlet
2	Float – Check Valve
3	Support – Air Inlet Cover
4	Deflector – Air (Upper)
5	Deflector – Air (Lower)
6	Dryer Housing & Bracket Assy. (Incls. items No.7 & 9)
7	Bracket – Housing Support
10	Screw & Lock Washer Assy. 10-16 x 5/8 Phil. Truss Hd., Type AB
11	Wheel – Blower (Incls. screw)
12	Self-Tapping Screw 10-24 x 5/16 Phil. Pan Hd. “Taptite“
13	Plate – Blower Motor Mounting
14	Cover – Dryer Motor
15	Motor – Blower (115 V., 60 Hz.)
17	Lead (Heater to Thermostat) (115 V.)
18	Clip – Thermoprotector
19	Protector – Control
20	Self-Tapping Screw – No.8-18 x 5/16“ Phil. Pan Undercut Hd., Type AB
21	Heater – Open Coil (Dryer Unit) (115 V.)
22	Cover – Heater Hole
