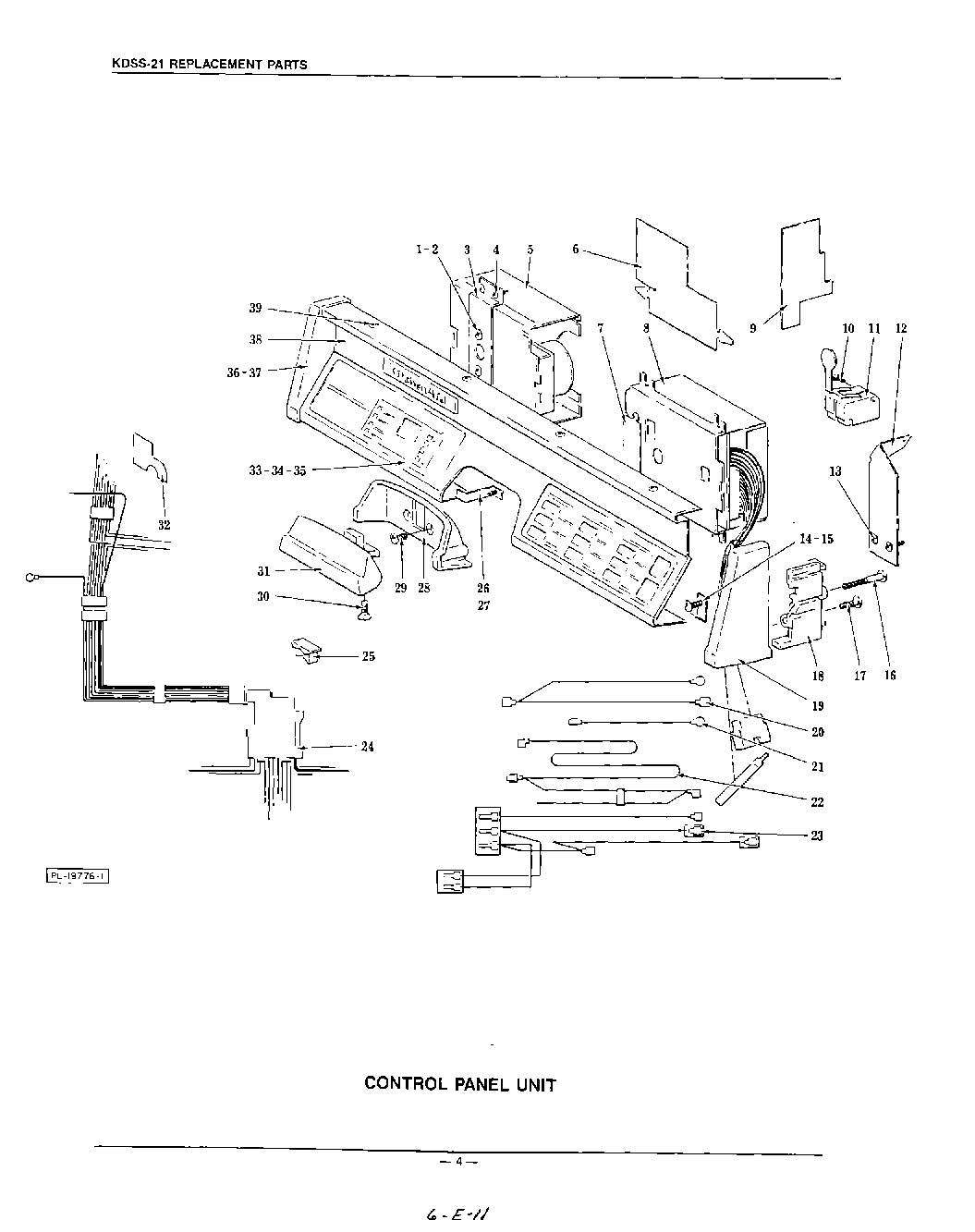

KDSS21 03 – CONTROL PANEL

Products

Position	Product
1	Mach. Screw 10-32 x 3/8 Phil. Pan Hd
2	Lock Washer
3	Bracket – Rotary Switch
5	Rotary Switch Assy. (Incls. items 1, 2 & 3)
6	Insulator – Harness
7	Insulator – Controller
8	Controller Assy. (Solid State)
9	Insulation – Switch
10	Self-Tapping Screw 4-40 x 1 1/8 Phil. Pan Hd., Type F
11	Door Interlock Switch Assy. (Incls. items 10 & 12)
12	Bracket – Door Switch Assy
14	Clip – Grounding (Front Panel)
15	WPL SD1311
16	Screw & Washer Assy
17	Self-Tapping Screw 8-32 x 7/8 Phil. Pan Hd., Type TT
18	Spacer – End Cap (R.H.)
19	Cap – End (R.H.)
20	WPL 242445
21	Harness Ground Wire
22	Wiring Harness (Lower) (KDB-21B)
23	Harness Assy. (Thermostat)
24	Main Wiring Harness Assy
25	WPL 242641
26	326789 Whirlpool Surface Element 8 Inch
27	Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd.,
28	WPL 242422
29	WPL SC11752
30	WPL SC1714
31	WPL 242414
32	Insulator – Integral Bracket
33	Displ
34	WPL 242857
35	WPL 242917
36	WPL 2424132
37	WPL 2424942
38	WPL 242977
38	WPL 243151
39	WPL SD2227
39	WPL 242849
