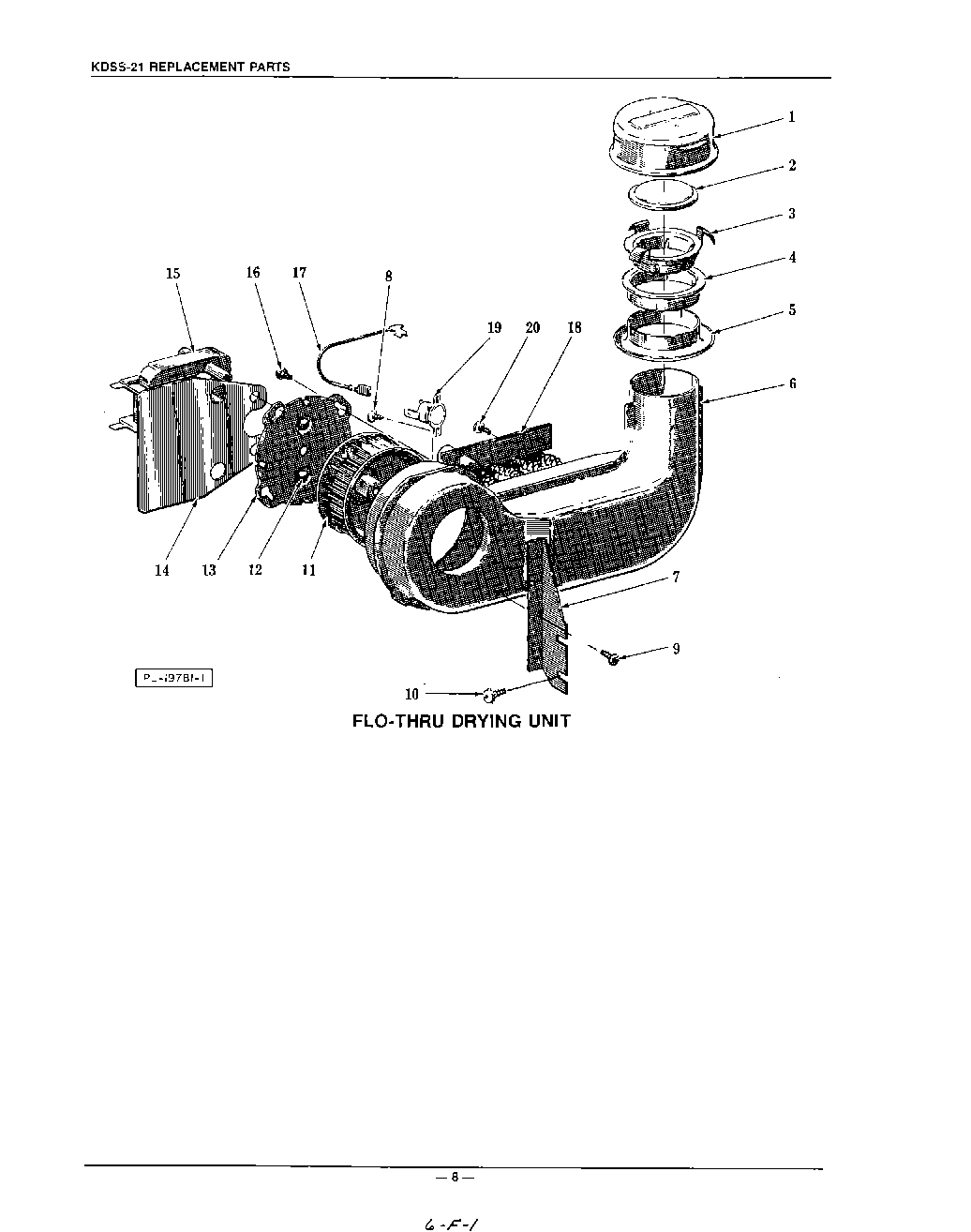

KDSS21 05 – FLO-THRU DRYING

Products

Position	Product
1	Cover – Air Inlet
2	Float – Check Valve
3	Support – Air Inlet Cover
4	Deflector – Air (Upper)
5	Deflector – Air (Lower)
6	Dryer Housing & Bracket Assy. (Incls. items 7 & 9)
7	Bracket – Housing Support
10	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
11	Wheel – Blower (Incls. screws)
12	Self-Tapping Screw 10-24 x 5/16 Phil. Pan Hd. “Taptite“
13	Pate – Blower Motor Mounting
14	Cover – Dryer Motor
15	Motor – Blower (115 V., 60 Hz.)
17	Lead (Heater to Thermostat) (115 V.)
18	Heater – Open Coil (Dryer Unit) (115 V.)
19	Protector – Control
20	Dryer Unit Assy. (115 V., 60 Hz.) (Incls. items 6, 8 & 11 thru 20)
20	Air Inlet Cover Assy. (Incls. items 1, 2 & 3)
20	Self-Tapping Screw – No.8-18 x 5/16“ Phil. Pan Undercut Hd., Type AB
20	Blower Unit Assy. (115 V., 60 Hz.) (Incls. items 11 thr u 15)
