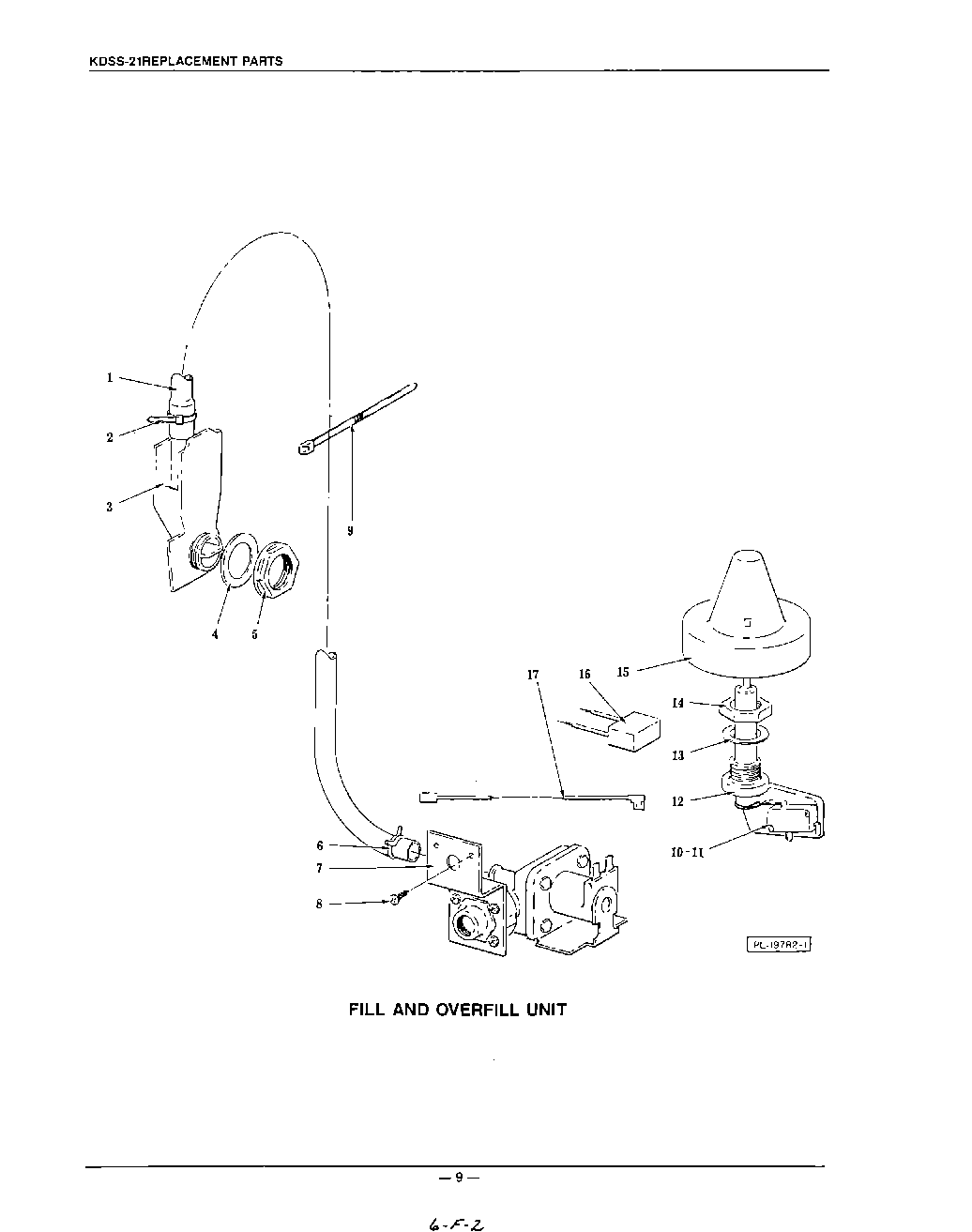

KDSS21 06 – FILL AND OVER FILL

Products

Position	Product
1	Hose - Flexible (Fill Valve to Air Gap)
2	Strap - Retaining (Cord)
3	Air Gap - Fill Assy. (Incls. items 1 & 2)
4	Gasket - Rubber
5	Nut (Fill Air Gap)
6	Clamp - Hose
7	CANNING, UNIT KIT
8	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
9	Wire Tie (8``) (Fill Hose)
10	Self-Tapping Screw 4-40 x 3/4 Phil. Pan Hd., Type F
11	Switch - Overfill Control (115 V., 60 Hz.)
12	Standpipe - Overfill
13	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14	Nut - Standpipe
15	Float & Retainer Assy
16	Filter - Resistor/Capacitor
17	Lead Assy. (Fill Control Switch to Fill Valve)
