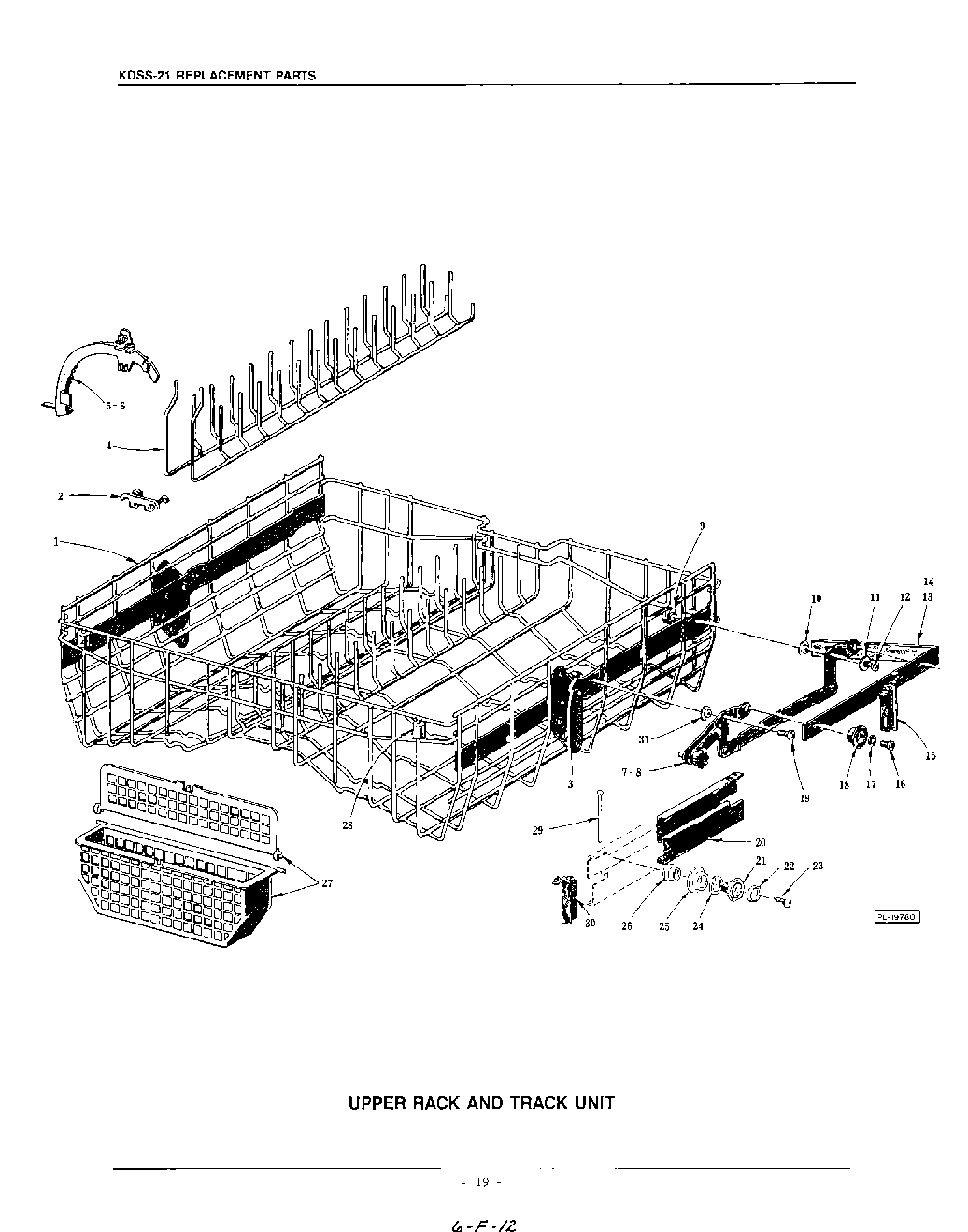

KDSS21 12 – UPPER RACK AND TRACK

KDSS21 12 – UPPER RACK AND TRACK

Written by

in

KDSS21 12 – UPPER RACK AND TRACK

Products

PositionProduct
1Upper Rack Assy. (KDC-21D)
2Clip – Partition Retaining
4Partition – Upper Rack
5Quadrant – Flexo Divider (L.H.)
6Quadrant – Flexo Divider (R.H.) (Not Shown)
7Adjustable Rack Track Mech. (R.H.)
8Adjustable Rack Track Mech. (L.H.) (Not Shown)
9Nut – Roller
11Washer – Rack
13Lift – Receiver (R.H.)
14Lift – Receiver (L.H.) (Not Shown)
16Mach. Screw 8-32 x 1/4 Phil. Pan Hd. “Nylok“
17Washer
18Roller – Upper Rack
19Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., Type B
20Track – Rack
21Stud – Rack Roller
22Gasket – Rack Stud
23Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., “Plascrew“
24Washer – Roller Spacing
25Roller – Rack Track
26Bushing – Rack Roller
27Small Items Basket & Lid Assy
28Bumper – Upper Rack
29Stud – Bumper Retaining
30Bumper – Rack Track
31Bearing & Spacer – Rack Adjusting
