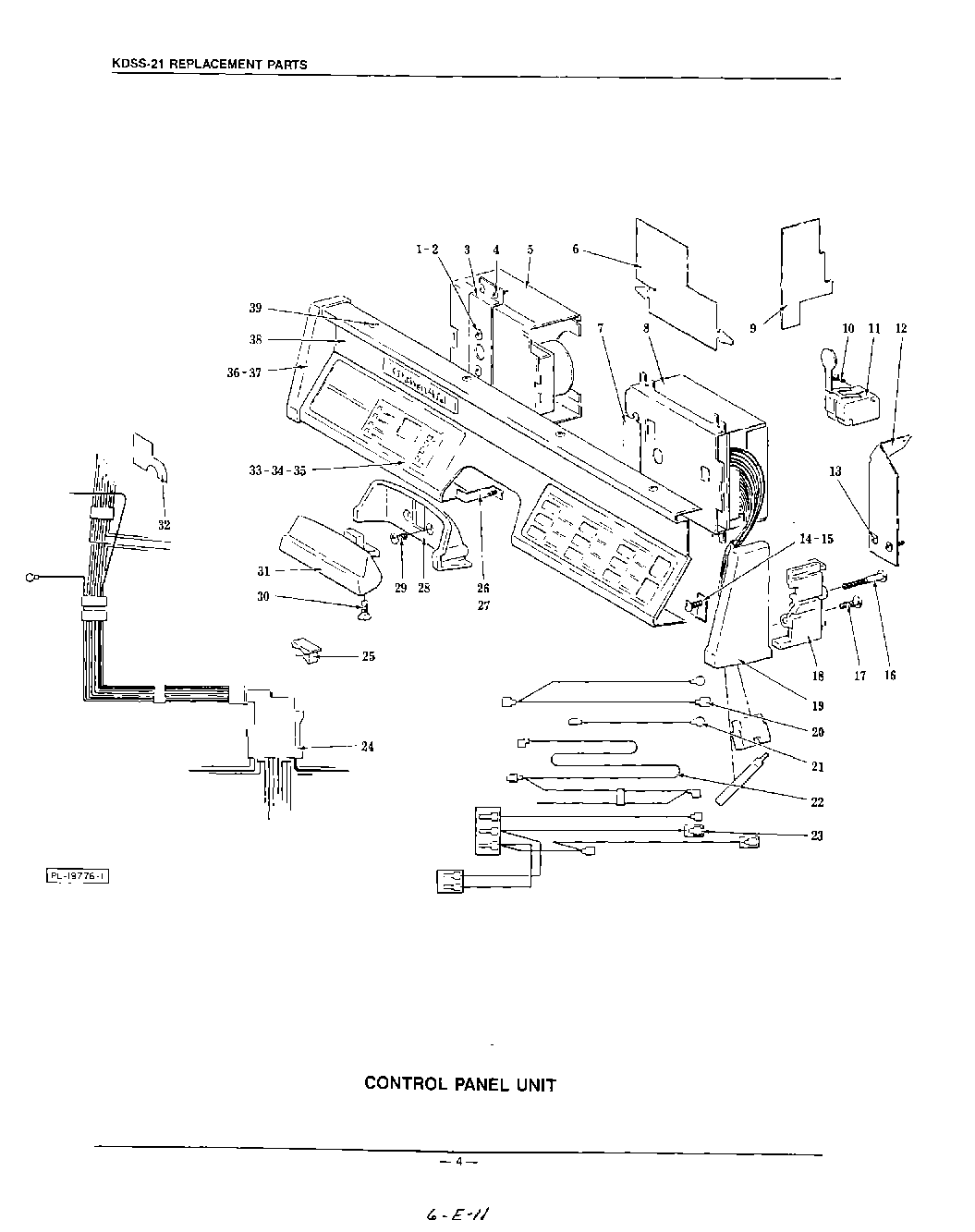

KDSS21A 03 – CONTROL PANEL

KDSS21A 03 – CONTROL PANEL

Written by

in

KDSS21A 03 – CONTROL PANEL

Products

PositionProduct
1Mach. Screw 10-32 x 3/8 Phil. Pan Hd
2Lock Washer
3Bracket – Rotary Switch
5Rotary Switch Assy. (Incls. items 1, 2 & 3)
6Insulator – Harness
7Insulator – Controller
8Controller Assy. (Solid State)
9Insulation – Switch
10Self-Tapping Screw 4-40 x 1 1/8 Phil. Pan Hd., Type F
11Door Interlock Switch Assy. (Incls. items 10 & 12)
12Bracket – Door Switch Assy
14Clip – Grounding (Front Panel)
15WPL SD1311
16Screw & Washer Assy
17Self-Tapping Screw 8-32 x 7/8 Phil. Pan Hd., Type TT
18Spacer – End Cap (R.H.)
19Cap – End (R.H.)
20WPL 242445
21Harness Ground Wire
22Wiring Harness (Lower) (KDB-21B)
23Harness Assy. (Thermostat)
24Main Wiring Harness Assy
25WPL 242641
26326789 Whirlpool Surface Element 8 Inch
27Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd.,
28WPL 242422
29WPL SC11752
30WPL SC1714
31WPL 242414
32Insulator – Integral Bracket
33Displ
34WPL 242857
35WPL 242917
36WPL 2424132
37WPL 2424942
38WPL 242977
38WPL 243151
39WPL SD2227
39WPL 242849
