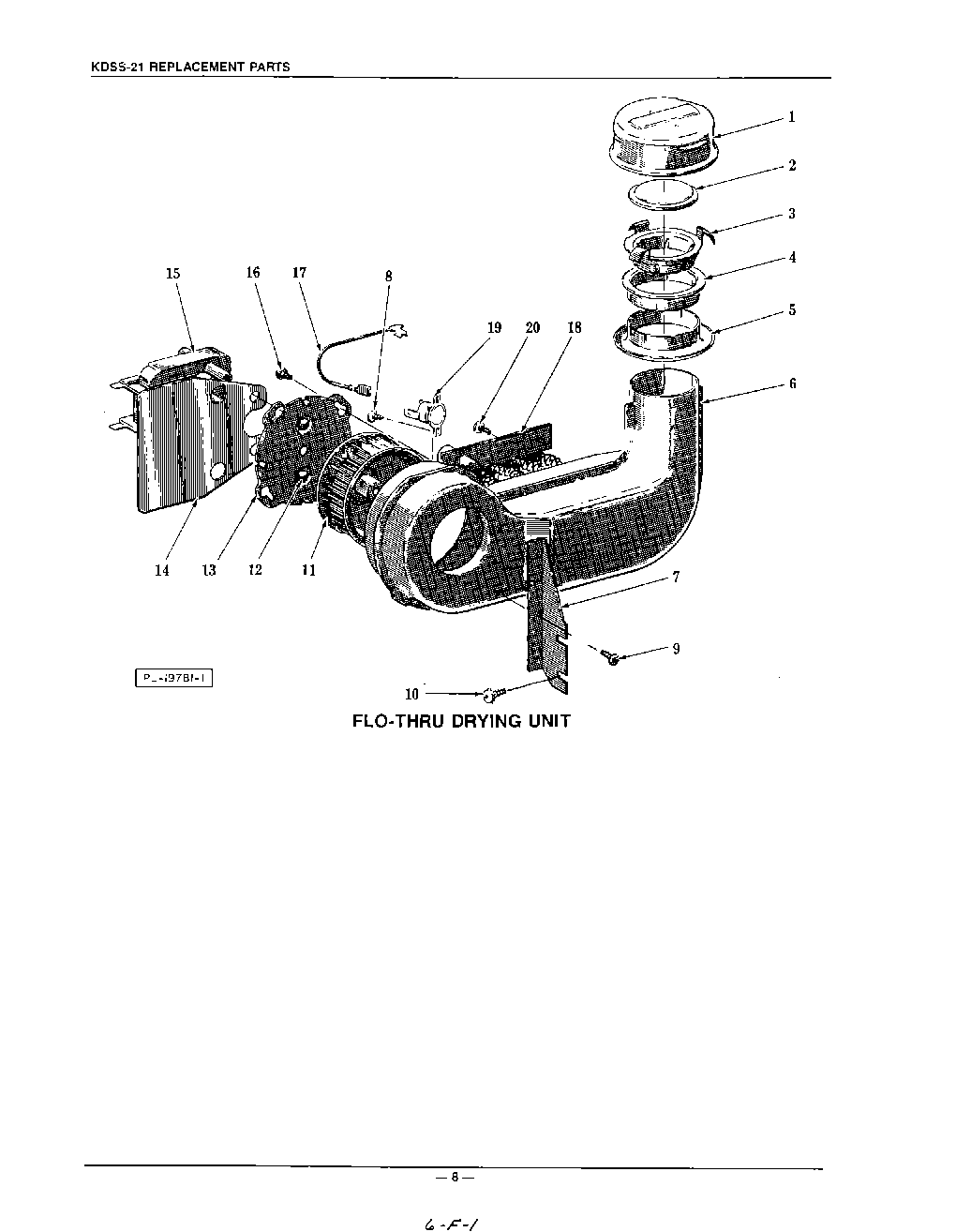

KDSS21A 05 – FLO-THRU DRYING
Written by
in
KDSS21A 05 – FLO-THRU DRYING
Products
Position
Product
1
Cover – Air Inlet
2
Float – Check Valve
3
Support – Air Inlet Cover
4
Deflector – Air (Upper)
5
Deflector – Air (Lower)
6
Dryer Housing & Bracket Assy. (Incls. items 7 & 9)
7
Bracket – Housing Support
10
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
11
Wheel – Blower (Incls. screws)
12
Self-Tapping Screw 10-24 x 5/16 Phil. Pan Hd. “Taptite“
13
Pate – Blower Motor Mounting
14
Cover – Dryer Motor
15
Motor – Blower (115 V., 60 Hz.)
17
Lead (Heater to Thermostat) (115 V.)
18
Heater – Open Coil (Dryer Unit) (115 V.)
19
Protector – Control
20
Dryer Unit Assy. (115 V., 60 Hz.) (Incls. items 6, 8 & 11 thru 20)
20
Air Inlet Cover Assy. (Incls. items 1, 2 & 3)
20
Self-Tapping Screw – No.8-18 x 5/16“ Phil. Pan Undercut Hd., Type AB
20
Blower Unit Assy. (115 V., 60 Hz.) (Incls. items 11 thr u 15)
←
