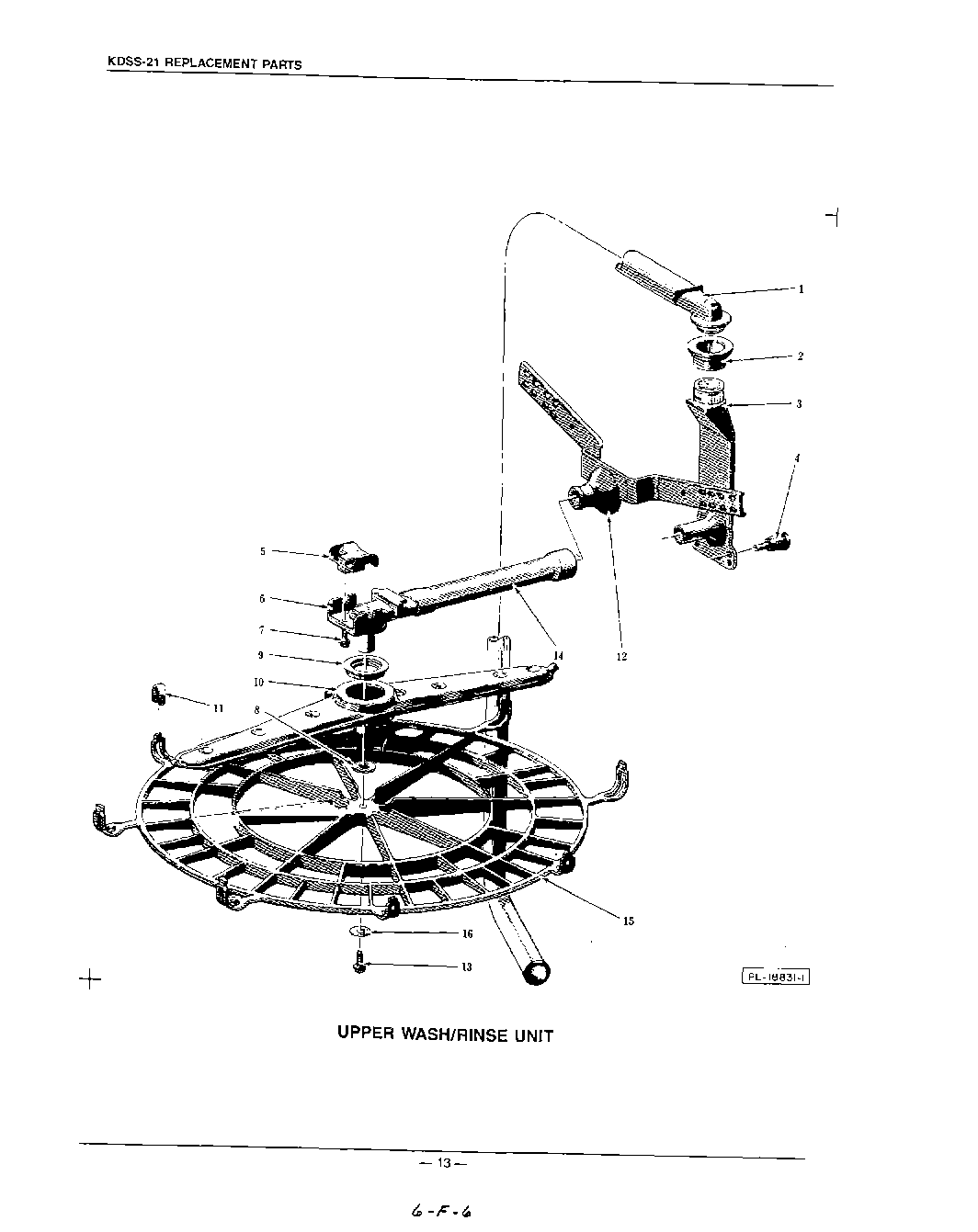

KDSS21A 09 – UPPER WASH/RINSE

Products

Position	Product
1	Tube & Connector Assy
2	Connector – Vertical Conduit
3	Conduit – Vertical
4	279570 Whirlpool Dryer Door Latch Kit
5	Retainer – Manifold
6	Manifold – Upper Arm
8	Bearing – Arm (Bottom)
9	Bearing – Arm (Top)
10	Wash/Rinse Arm Assy
11	Clip – Arm Guard (KDC-61A & KDI-21A)
12	Receiver – Manifold Tube (KDC-61A)
13	Special Screw – Hex Washer Hd
14	Tube (Manifold to Receiver)
15	Guard – Arm (KDC-61A & KDI-21A)
16	Washer
