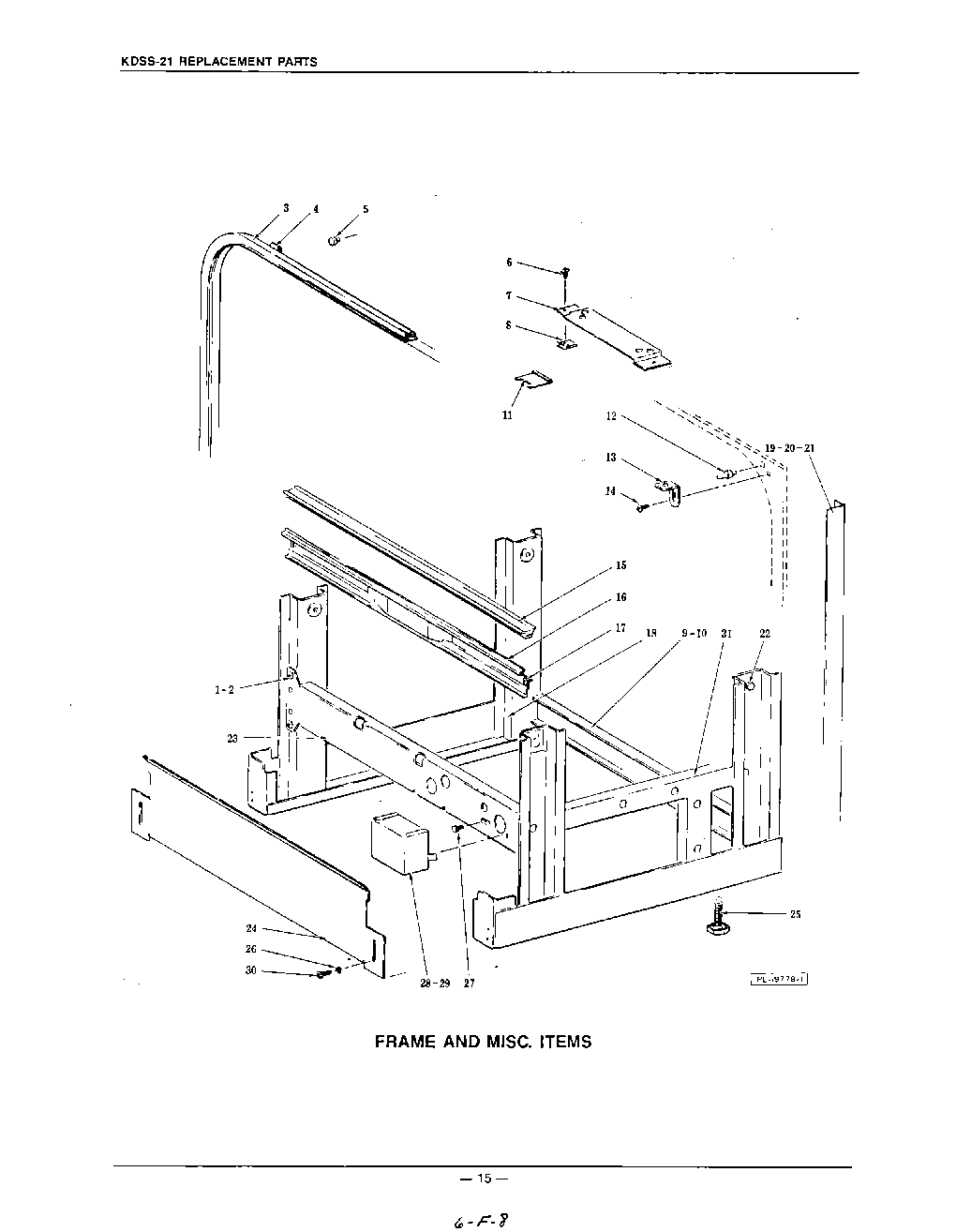

KDSS21A 10 – FRAME AND MISCELLANEOUS

Products

Position	Product
1	Short Frame Assy. (Incls. items 2, 18, 19, 20, 21 & 23)
3	Door Seal Assy. (Incls. item 4)
4	Clip – Seal
5	Bumper – Door
7	Protector – Upper Water Inlet
8	Speed Nut 10, Type U
9	Cross Frame – Rear
10	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
11	Keeper – Latch
12	Actuator – Interlock Switch
13	Bracket – Top Panel Anchor
15	Channel – Evaporation
16	Support – Evaporation Channel
17	Mach. Screw 10-32 x 1/2 Phil. Truss Hd., CA Pt. “Taptite“
18	Frame Assy. (L.H.)
19	WPL 115904
20	WPL 115903
21	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
22	Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT
23	Cross Frame – Front
24	Kick Board
25	Foot – Leveling (5/16-18 Thd.)
26	Lock Washer
27	Self-Tapping Screw 10-32 x 3/8 Indented Hex Washer Hd., Type T
28	Enclosure – Elec. Supply
29	Self-Tapping Screw 8-18 x 1/2 Phil. Bin
30	Tank & Frame As
30	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
30	Tank & Frame Assy.
