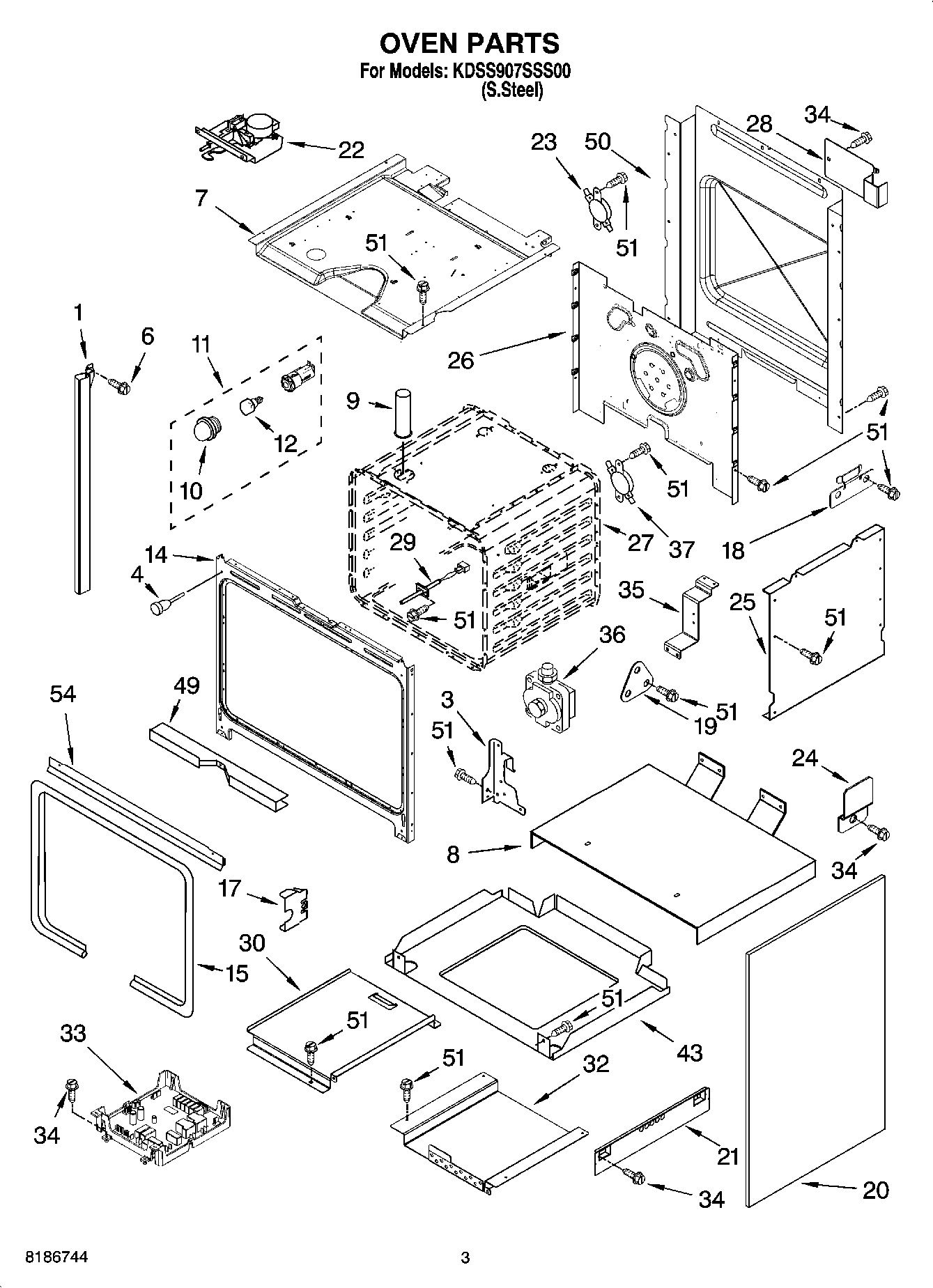

KDSS907SSS00 02 – OVEN PARTS
Written by
in
KDSS907SSS00 02 – OVEN PARTS
Products
Position
Product
1
Trim, Side (Left)
1
Trim, Side (Right)
3
WP4455606 Whirlpool Right Hand Hinge
3
WP4455605 Whirlpool Left Hand Hinge
4
W10105790 Whirlpool Bumper
6
WP3400832 Whirlpool Screw
7
Top Chassis
8
Support, Insulation
9
W10861715 Whirlpool Vent Tube
10
Lens, Light (2)
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
14
WPW10115831 Whirlpool Front Frame
15
W11675844 Whirlpool Oven Gasket
17
4452152 Whirlpool Oven Mounting Bracket
18
WP9757685 Whirlpool Guide Panel
19
BRACKET,SIDE PANEL
20
BODY, SIDE BLACK
21
Brace, Side Panel
22
WP9760889 Whirlpool Door Latch
23
WP9757807 Whirlpool High Limit Thermostat
24
Clip, Side Panel
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
Liner, Oven (Not serviceable)
28
Cover, Rear Standoff
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
Bracket, GOC
32
W10083460 Whirlpool Slide Assembly
33
Central, Appliance
34
WP3196557 Whirlpool Screw
35
Bracket, Regulator
36
WP9759091 Whirlpool Regulator
37
WP9759242 Whirlpool Thermostat
43
Base, Chassis
49
WP4448933 Whirlpool Retainer
50
WPL 9758583
51
WP4449809 Whirlpool Screw
54
Vent, Bottom Upper (S. Steel)
54
WPL 9756470
54
FOLLOWING PARTS NOT ILLUSTRATED INSULATION
54
WPL 9756817
←
