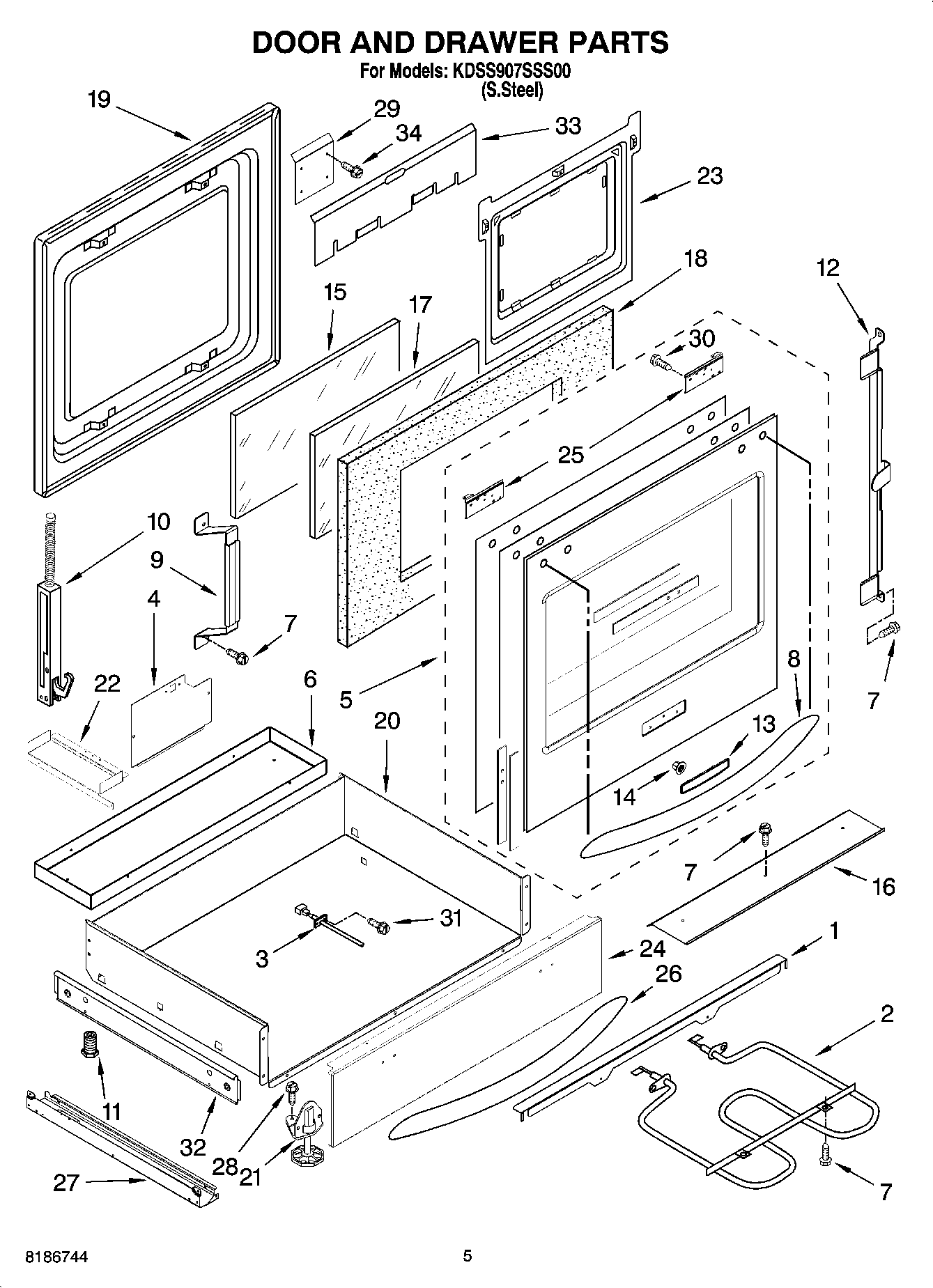

KDSS907SSS00 03 – DOOR AND DRAWER PARTS

KDSS907SSS00 03 – DOOR AND DRAWER PARTS

Written by

in

KDSS907SSS00 03 – DOOR AND DRAWER PARTS

Products

PositionProduct
1Support, Element
29760775 Whirlpool Oven Warm Element
3WP8274149 Whirlpool Sensor Assembly
4Cover, Access
5W10155557 Whirlpool Glass Door
6Panel, Drawer
7WP4449809 Whirlpool Screw
8Door Handle
9Bracket (3rd Glsss)
10WP9760579 Whirlpool Right Door Hinge
10HINGE-DOOR LH/SS DOOR SPRING
11WPW10058460 Whirlpool Appliance Levelling Leg
12WP9759229 Whirlpool Mounting Bracket
13Nameplate (S.Steel)
14WP3400832 Whirlpool Screw
15WP9757706 Whirlpool Door Inner Glass
164457114 Whirlpool Oven Heat Shield
17WP9759225 Whirlpool Inner Door Glass
18WP4451722 Whirlpool Door Insulation Assembly
19WP9759413 Whirlpool Door Liner
20Drawer Assy
21WP3196037 Whirlpool Leveling Foot
22Cover, Terminal
23WP4457132 Whirlpool Retainer
24Front, Drawer (S.Steel)
25Bracket, Handle (Left)
25Bracket, Handle (Right)
26Handle, Drawer (Stainless)
27Side, Base (L.Side)
27Side, Base (R.Side)
28WP4449743 Whirlpool Screw
29Shield, Heat
30WP8533988 Whirlpool Screw Fastener
31WP3196557 Whirlpool Screw
32WPW10155633 Whirlpool Drawer Slide Rail
32WPW10155632 Whirlpool Slide Drawer Assembly
33Shield, Heat
34W10491985 Whirlpool Screw
