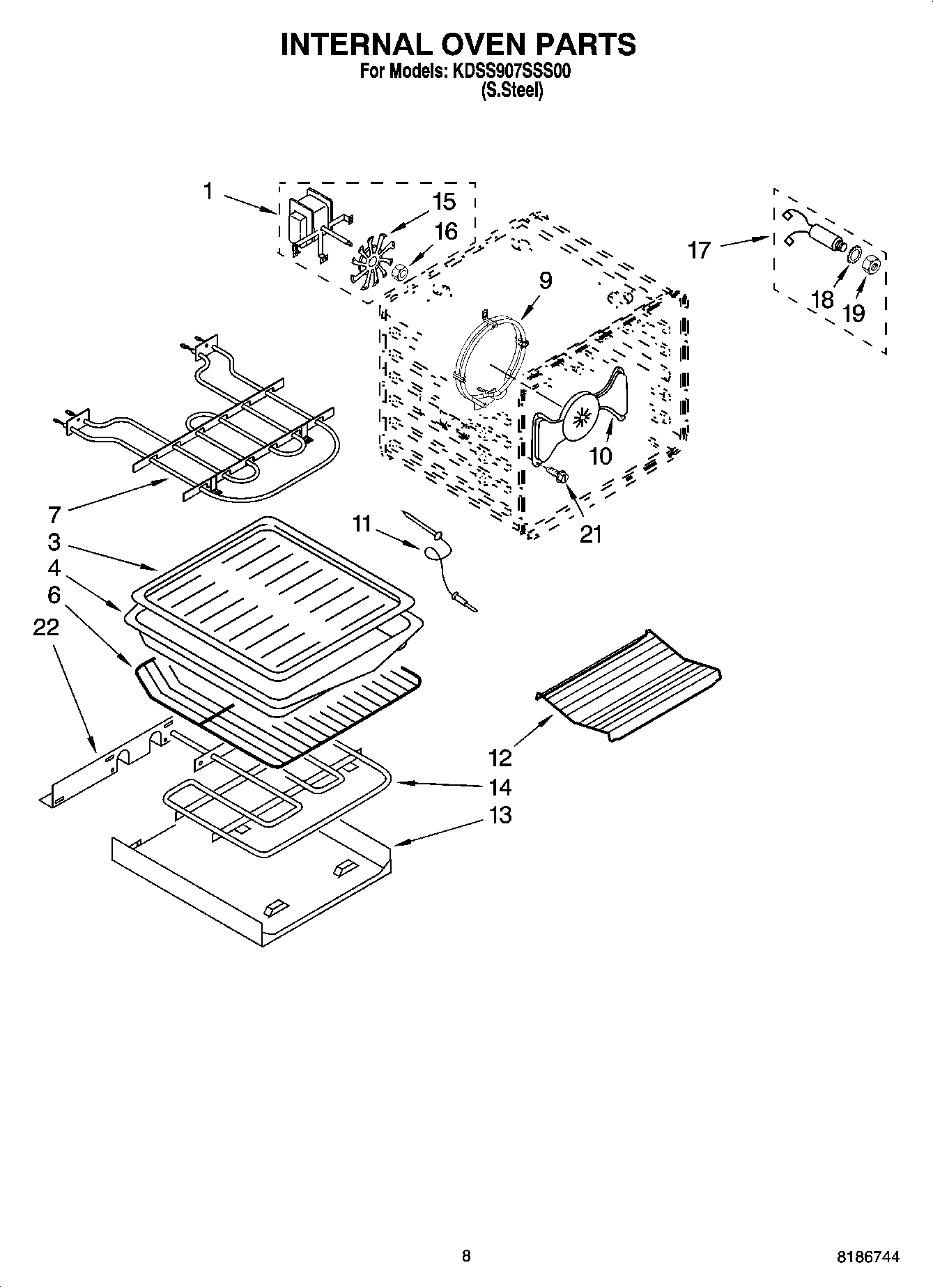

KDSS907SSS00 05 – INTERNAL OVEN PARTS

KDSS907SSS00 05 – INTERNAL OVEN PARTS

Written by

in

KDSS907SSS00 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1Motor Convection
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
6WPW10179152 Whirlpool Rack Oven
7ELMNT-BROL
9WP9760769 Whirlpool Element Assembly
10W10860133 Whirlpool Convection Baffle
11WP9755542 Whirlpool Oven Meat Probe
12Rack, Roasting
13Tray, Hidden Bake
14ELMNT-BAKE
15WP4452226 Whirlpool Convection Fan
16Nut
178186589 Whirlpool Jack Probe
18WP9755547 Whirlpool Lockwasher
19WP9755546 Whirlpool Locknut
21WP4449154 Whirlpool Screw
224450039 Whirlpool Oven Access Cover
