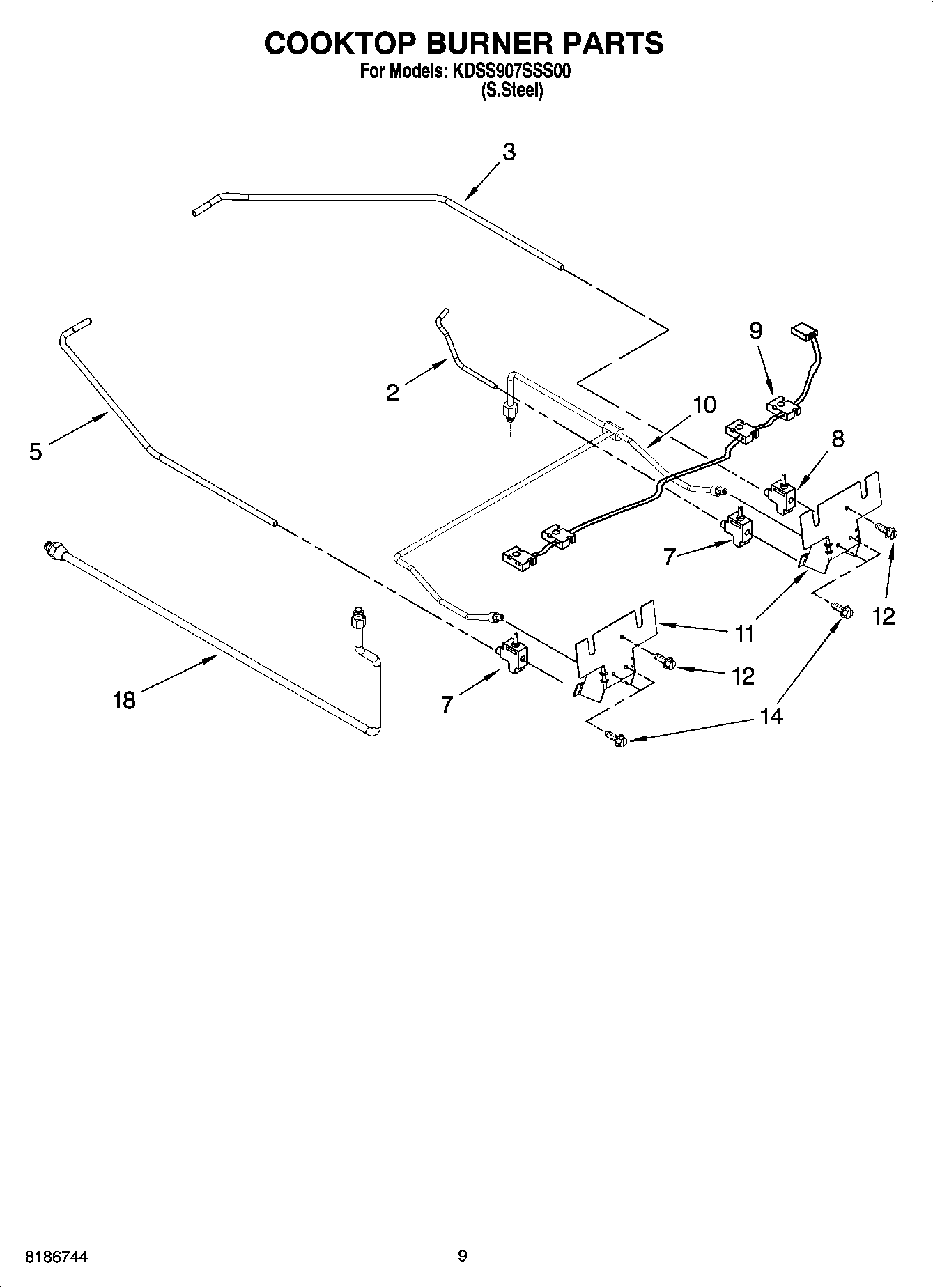

KDSS907SSS00 06 – COOKTOP BURNER PARTS
Written by
in
KDSS907SSS00 06 – COOKTOP BURNER PARTS
Products
Position
Product
2
TUBING, BURNER(RF)
3
TUBING, BURNER(RR)
5
TUBING, BURNER(LR)
7
WP4456816 Whirlpool Burner Valve
8
WP4456817 Whirlpool Burner Valve
9
WP9756824 Whirlpool Wire Harness
10
Tube, Manifold
11
9761642 Whirlpool Manifold Pipe
11
9761641 Whirlpool Oven Manifold Pipe
12
WP3196557 Whirlpool Screw
14
WP3186217 Whirlpool Screw
18
Tubing DF to Regulator
←
