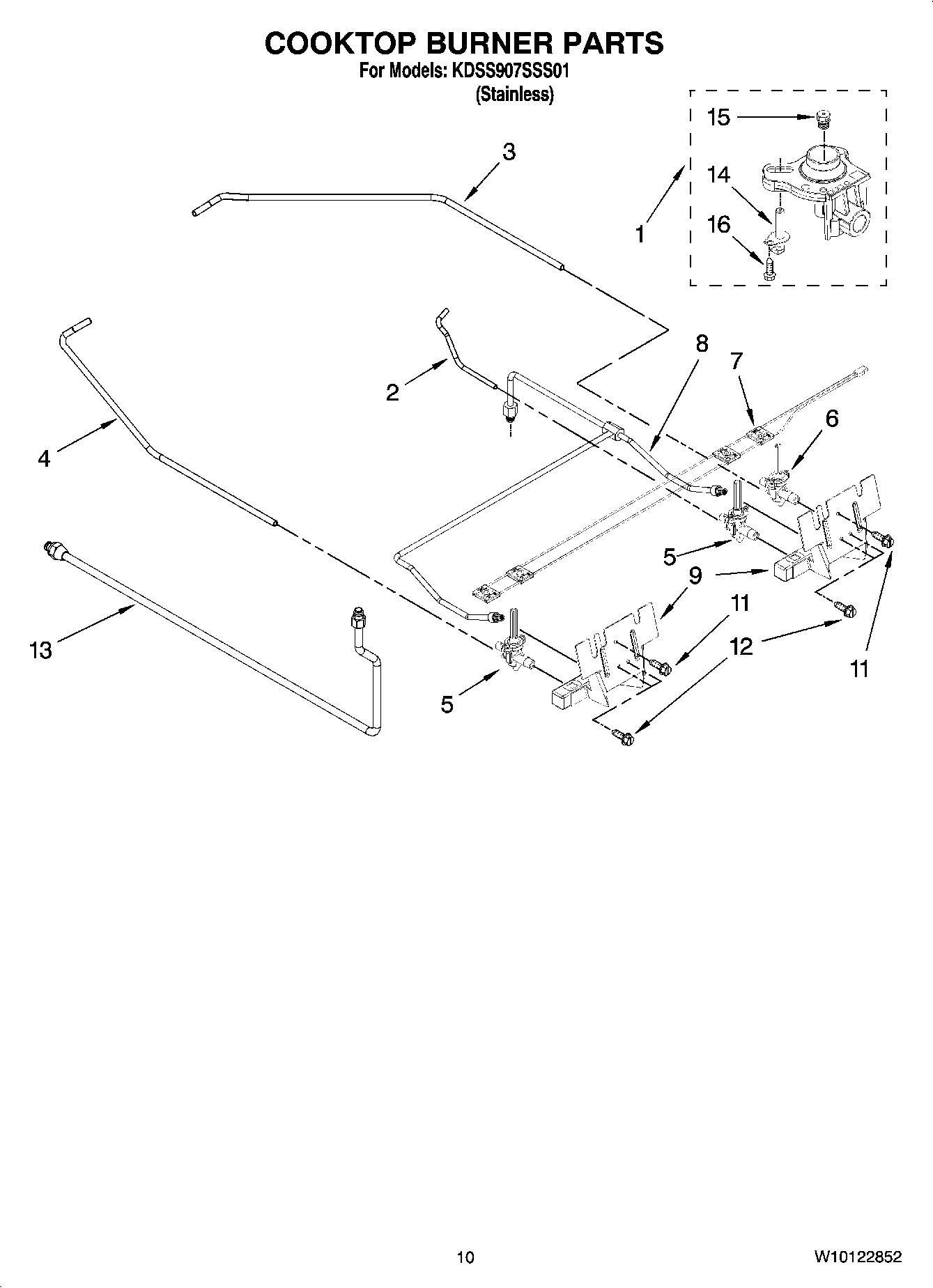

KDSS907SSS01 07 – COOKTOP BURNER PARTS

Products

PositionProduct
1WPW10128446 Whirlpool Orifice Holder
1WPW10128455 Whirlpool Orifice Holder
2TUBING, BURNER(RF)
3TUBING, BURNER(RR)
4TUBING, BURNER(LR)
5WP4456816 Whirlpool Burner Valve
6WP4456817 Whirlpool Burner Valve
7WP9756824 Whirlpool Wire Harness
8Tube, Manifold
99761641 Whirlpool Oven Manifold Pipe
99761642 Whirlpool Manifold Pipe
11WP3196557 Whirlpool Screw
12WP3186217 Whirlpool Screw
13Tubing DF to Regulator
14WPW10110378 Whirlpool Surface Igniter
15Orifice (RR)
159762937 Whirlpool Oven Orifice
16WP8273062 Whirlpool Screw
