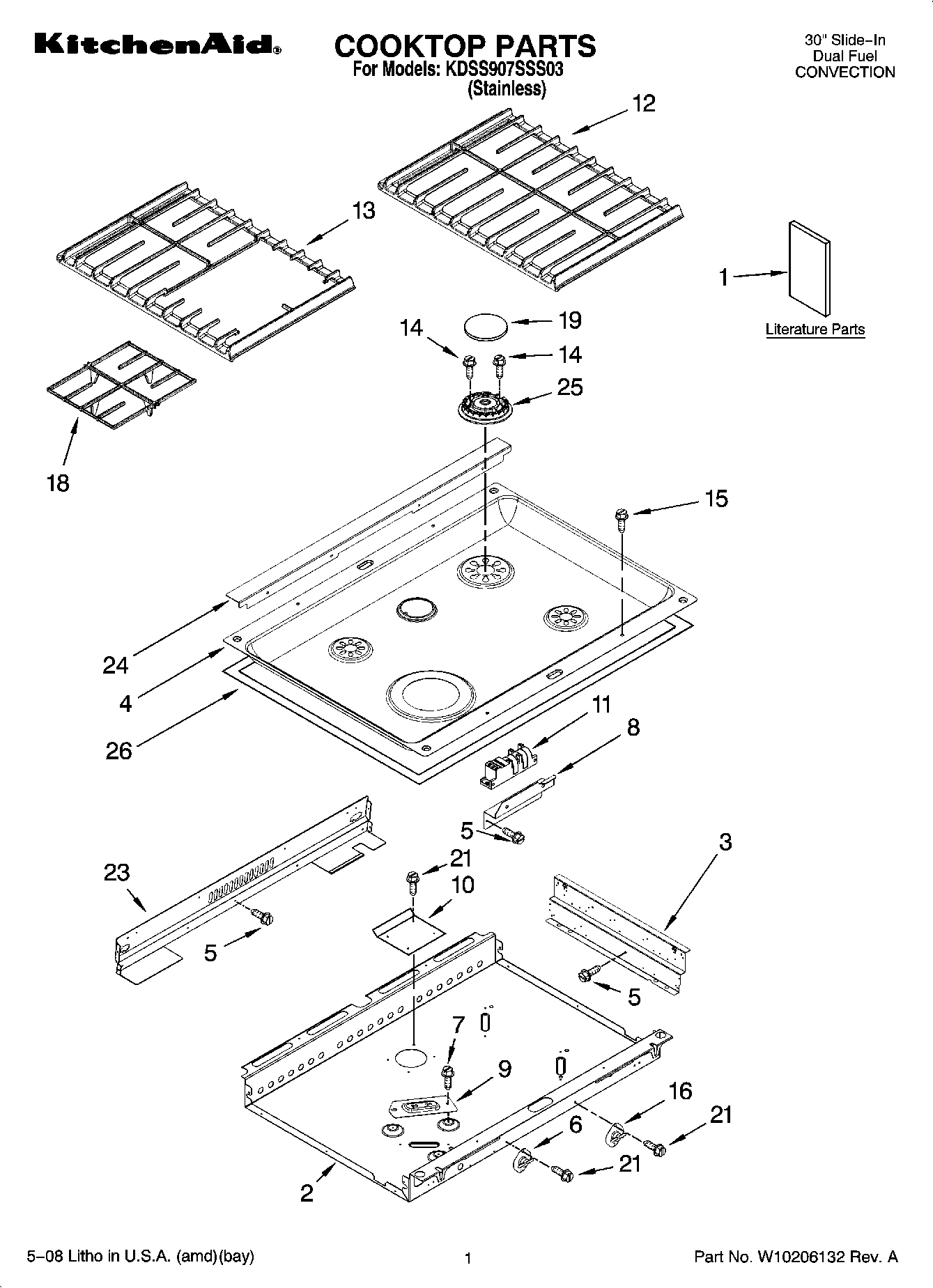

KDSS907SSS03 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	Tech Sheet
1	Anti-Tip Instruct.
1	Easy Set Guide
2	Burner Box
3	Bracket, Mounting
4	Cooktop
5	WP3196557 Whirlpool Screw
6	WP9757807 Whirlpool High Limit Thermostat
7	WP12990527 Whirlpool Microwave Screw
8	Bracket, Spark Module
9	Bracket, Burner
10	Shield, Heat
11	WPW10110491 Whirlpool Spark Module
12	Grate, Burner (RH)
13	Grate, Burner (LH)
14	WP3368921 Whirlpool Screw
15	W10129030 Whirlpool Screw
16	WP9759944 Whirlpool Thermostat
18	GRATE-BRNR
19	WP8284669 Whirlpool Burner Cap
19	9761563CB Whirlpool Burner Cap
21	W10491985 Whirlpool Screw
23	Cover, Cooktop Rear
24	WP9763436 Whirlpool Rear Cover
25	WPW10406243 Whirlpool Burner Head Auxiliary 6K
25	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
26	Gasket
