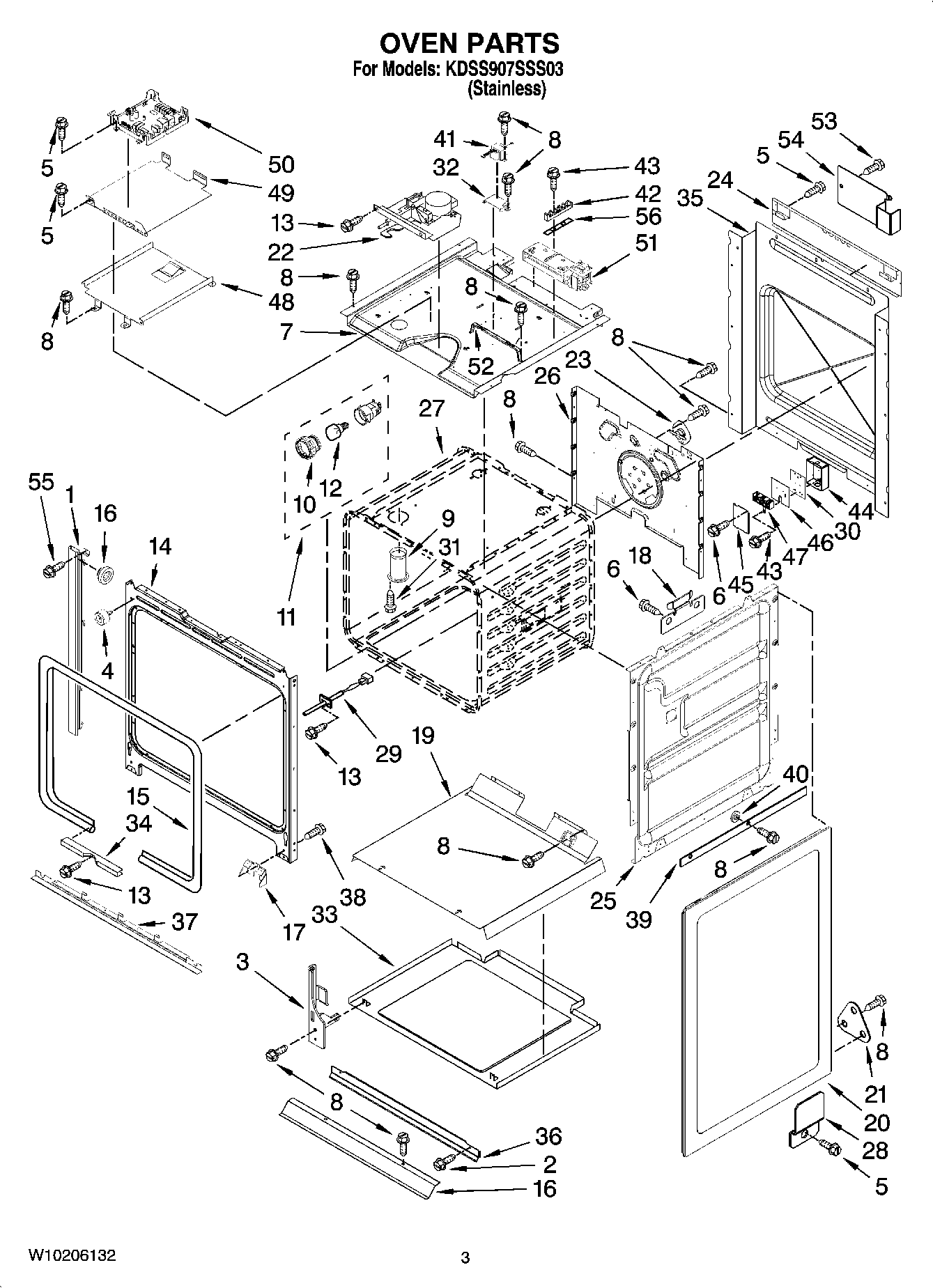

KDSS907SSS03 02 – OVEN PARTS

KDSS907SSS03 02 – OVEN PARTS

Written by

in

KDSS907SSS03 02 – OVEN PARTS

Products

PositionProduct
Following Parts Not Illustrated
WPL 9756470
WPL 9756817
Insulation
1TRIM, SIDE (RIGHT STAINLESS)
1TRIM, SIDE (LEFT STAINLESS)
2WP3400832 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
6W10491985 Whirlpool Screw
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4449154 Whirlpool Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16WP4448444 Whirlpool Grommet
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20BODY, SIDE BLACK
21BRACKET,SIDE PANEL
22WP9760889 Whirlpool Door Latch
23WP9759242 Whirlpool Thermostat
24Brace, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Clip, Side Panel
29WPW10131825 Whirlpool Oven Temperature Sensor
30Insulation
31SCREW
32WP9757829 Whirlpool Mounting Bracket
33Base, Chassis
34WP4448933 Whirlpool Retainer
35WPL 9758583
36Vent, Bottom Upper (Stainless)
37Vent, Bottom Lower (Stainless)
38WP4449743 Whirlpool Screw
39WPL 9759722
40WPL 9760481
41WPW10111628 Whirlpool Transformer
43Screw
44W10115858 Whirlpool Box Terminal
45Cover, Term Box
469759721 Whirlpool Oven Insulator
47WP9761958 Whirlpool Range Terminal Block
48Bracket, GOC
49W10083460 Whirlpool Slide Assembly
50APPLIANCE, MANAGER
51W10810687 Whirlpool Blower Assembly
52WP9756821 Whirlpool Support
53WP3196557 Whirlpool Screw
54Cover, Rear Standoff
55WP3400805 Whirlpool Screw Assembly
56WPL 9759885
