KDSS907SSS03 03 – DOOR PARTS

KDSS907SSS03 03 – DOOR PARTS

Written by

in

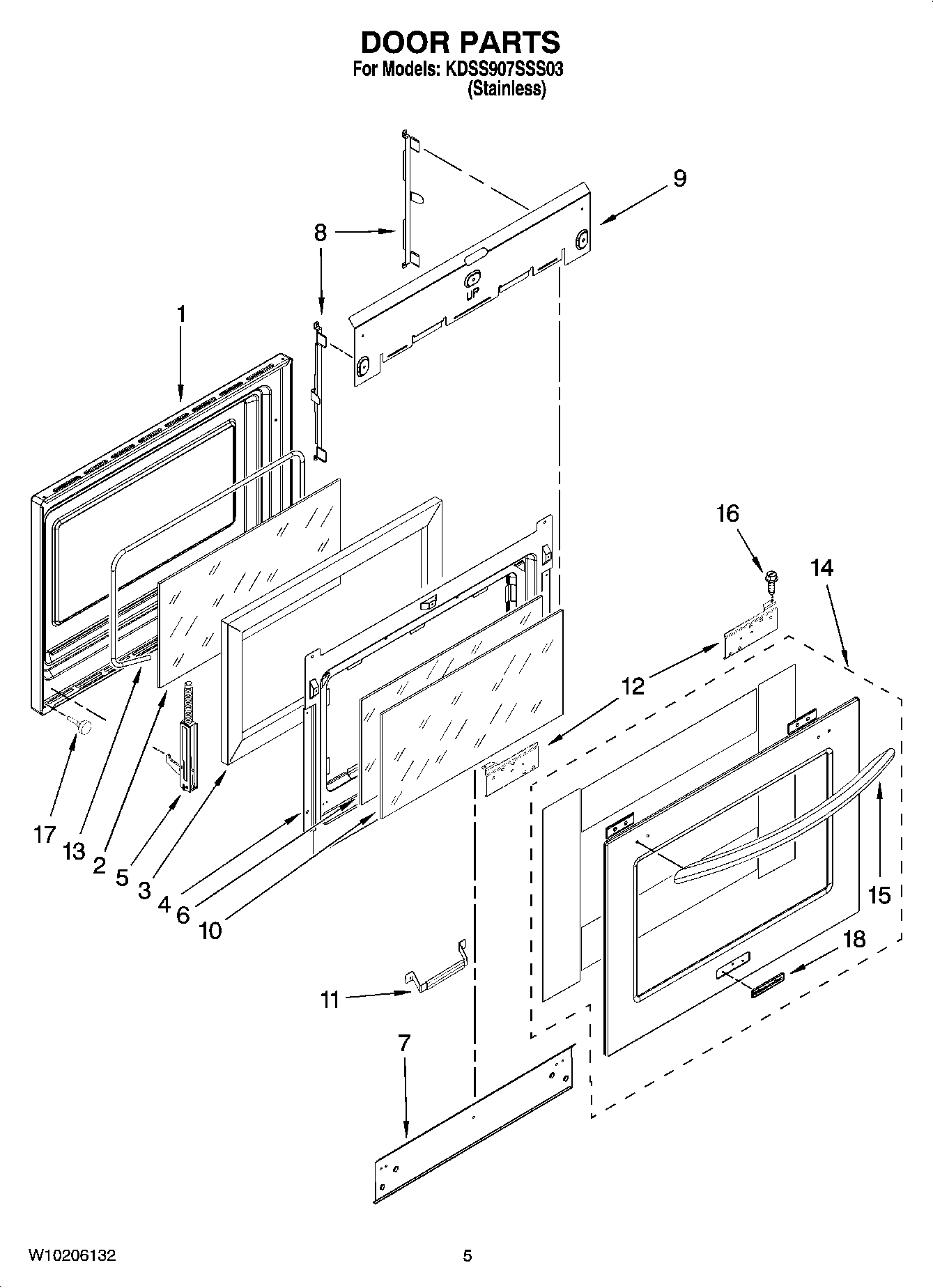

KDSS907SSS03 03 – DOOR PARTS

Products

PositionProduct
1Panel, Door
2WP9757706 Whirlpool Door Inner Glass
3WP4451722 Whirlpool Door Insulation Assembly
4WP4457132 Whirlpool Retainer
5WP9760579 Whirlpool Right Door Hinge
5HINGE-DOOR LH/SS DOOR SPRING
74457114 Whirlpool Oven Heat Shield
8WP9759229 Whirlpool Mounting Bracket
9Shield, Heat
10WP9759225 Whirlpool Inner Door Glass
11Bracket (3rd Glsss)
12Bracket, Handle (Right)
12Bracket, Handle (Left)
138522415 Whirlpool Oven Wind Gasket
14W10155557 Whirlpool Glass Door
15Door Handle
16WPW10132940 Whirlpool Dishwasher Screw
174448520 Whirlpool Oven Bumper
18Badge (Stainless)
