KDSS907SSS04 01 – COOKTOP PARTS

KDSS907SSS04 01 – COOKTOP PARTS

Written by

in

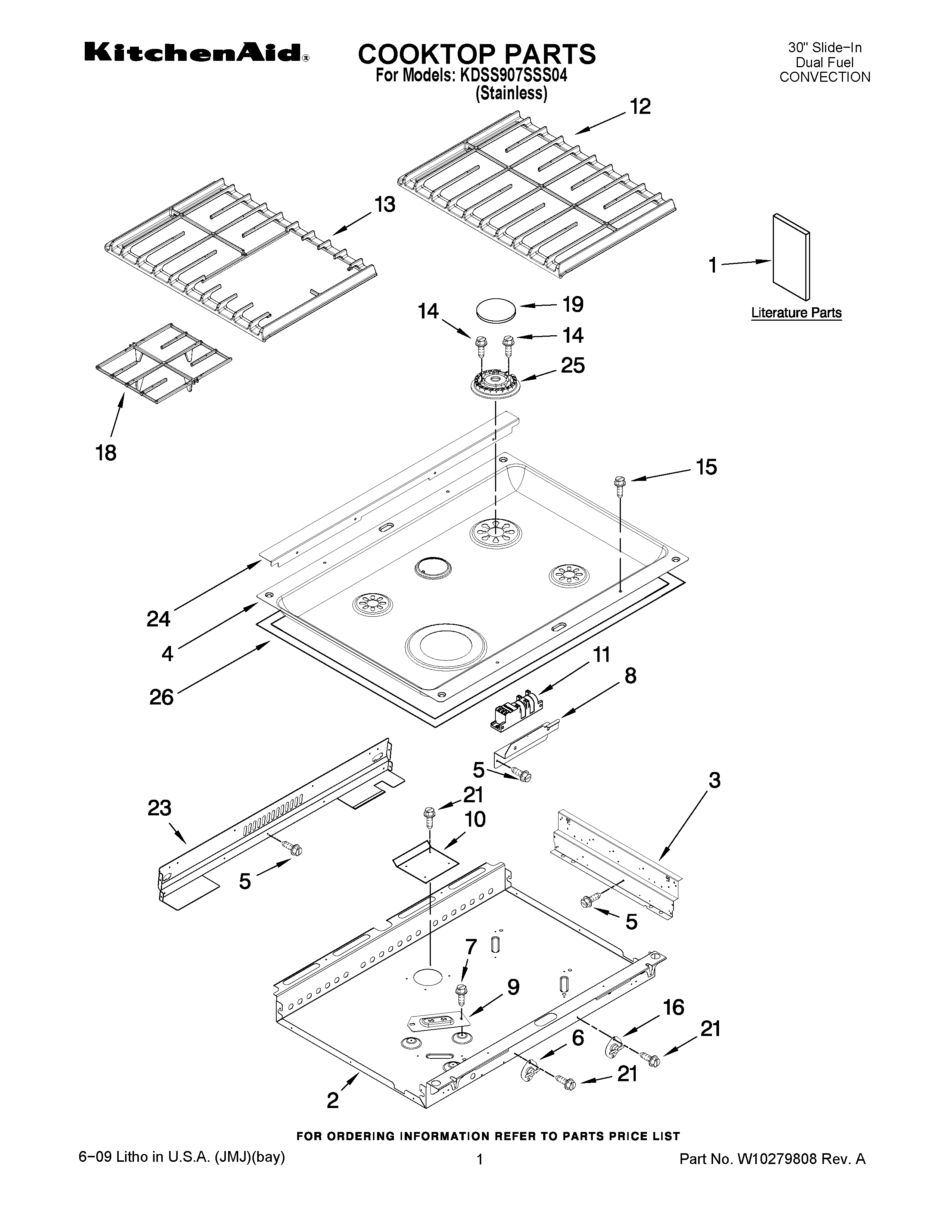

KDSS907SSS04 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Installation Instructions
1Tech Sheet
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Easy Set Guide
1Anti-Tip Instruct.
2BURNER BOX
3Bracket, Mounting
4Cooktop
5WP3196557 Whirlpool Screw
6WP9757807 Whirlpool High Limit Thermostat
7WP12990527 Whirlpool Microwave Screw
8Bracket, Spark Module
9Bracket, Burner
10Shield, Heat
11WPW10110491 Whirlpool Spark Module
12Grate, Burner (RH)
13Grate, Burner (LH)
14WP3368921 Whirlpool Screw
15W10129030 Whirlpool Screw
16WP9759944 Whirlpool Thermostat
18GRATE-BRNR
19WP8284669 Whirlpool Burner Cap
199761563CB Whirlpool Burner Cap
21W10491985 Whirlpool Screw
23Cover, Cooktop Rear
24WP9763436 Whirlpool Rear Cover
25WPW10406243 Whirlpool Burner Head Auxiliary 6K
25WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
26Gasket
