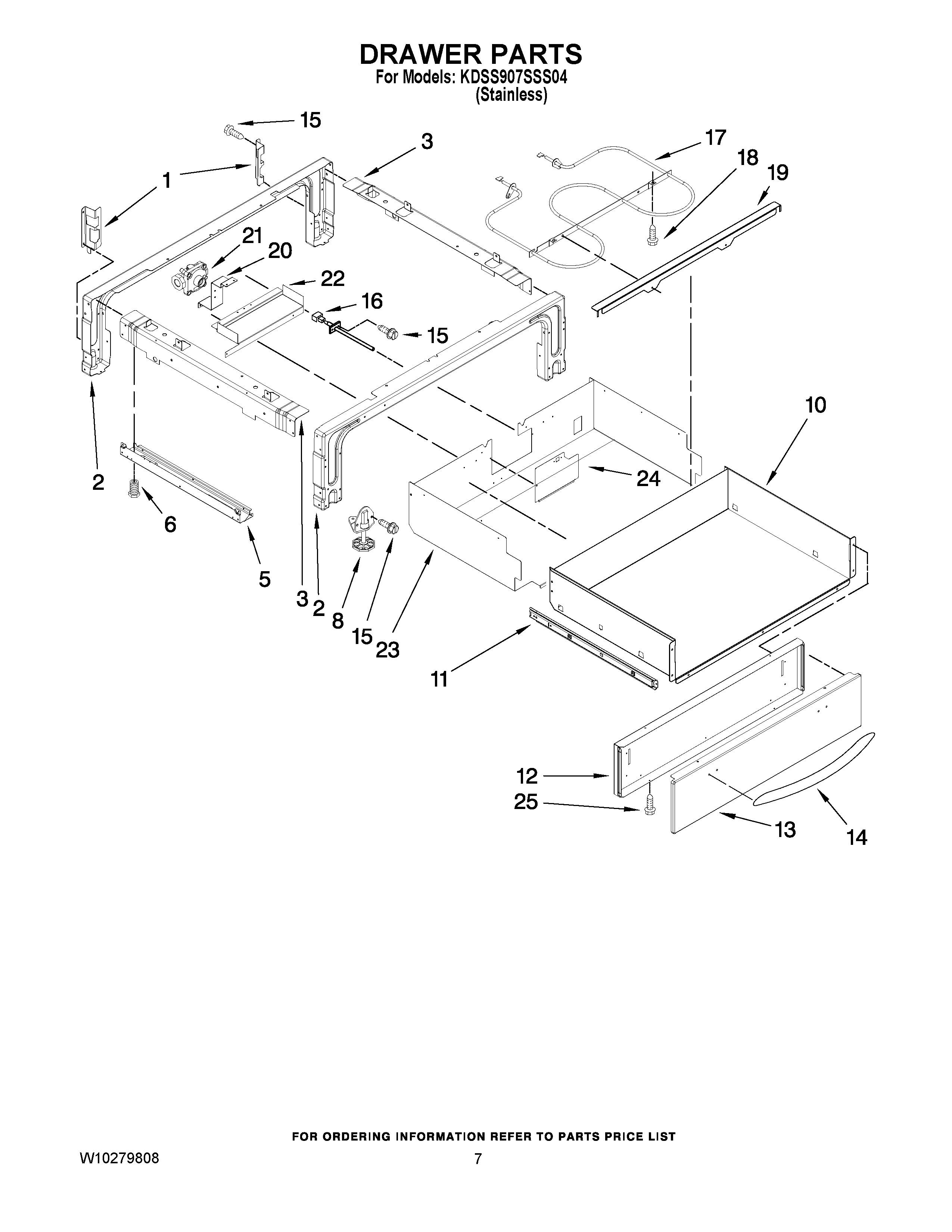

KDSS907SSS04 04 – DRAWER PARTS
Written by
in
KDSS907SSS04 04 – DRAWER PARTS
Products
Position
Product
1
Support (R.Hand)
1
Support (L.Hand)
2
Support, Front & Rear
3
Brace, Drawer (Right)
3
Brace, Drawer (Left)
5
Side, Base (L.Side)
5
Side, Base (R.Side)
6
WPW10058460 Whirlpool Appliance Levelling Leg
8
WP3196037 Whirlpool Leveling Foot
10
DRAWER
11
WPW10155632 Whirlpool Slide Drawer Assembly
11
WPW10155633 Whirlpool Drawer Slide Rail
12
PANEL, DRAWER
13
Front, Drawer (Stainless)
14
Handle, Drawer (Stainless)
15
Screw
16
WP8274149 Whirlpool Sensor Assembly
17
ELEMENT, WARMING DRAWER
18
WP4449809 Whirlpool Screw
19
Support, Element
20
Bracket, Regulator
21
Regulator
22
Cover, Terminal
23
Enclosure, Warming Drawer
24
Cover, Access
25
W10162096 Whirlpool Screw
←
