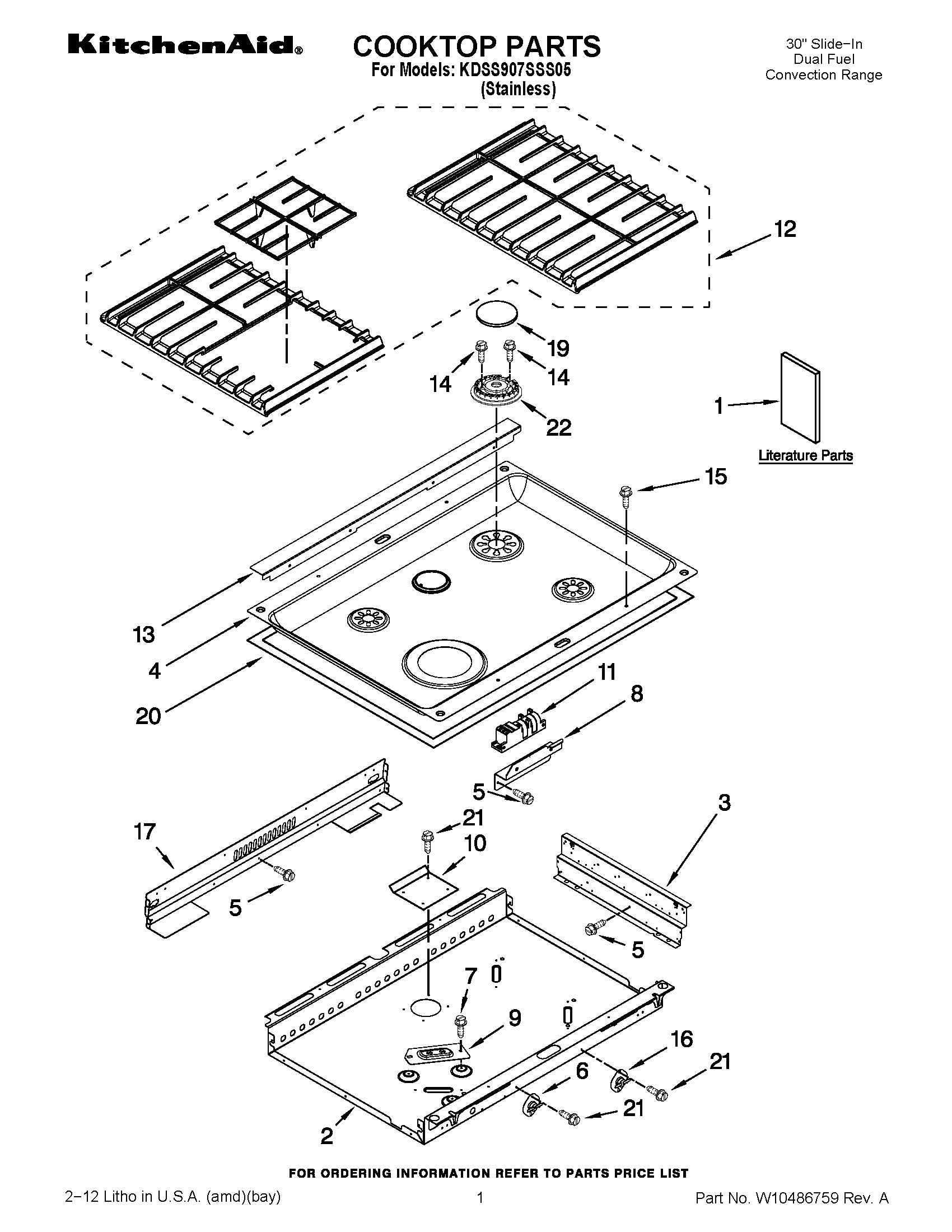

KDSS907SSS05 01 – COOKTOP PARTSadmin2025-04-26T10:30:11+00:00KDSS907SSS05 01 – COOKTOP PARTS ProductsPositionProduct1USE & CARE GUIDE1Easy Set Guide1Tech Sheet1Safer Cooking Tips (French)1SAFER COOKING TIPS (ENGLISH1INSTALLATION INSTRUCTIONS2BURNER BOX3Bracket, Mounting4Cooktop5WP3196557 Whirlpool Screw6WP9757807 Whirlpool High Limit Thermostat7WP12990527 Whirlpool Microwave Screw8Bracket, Spark Module9Bracket, Burner10Shield, Heat11WPW10110491 Whirlpool Spark Module12W10338795 Whirlpool Grate Kit Assembly13WP9763436 Whirlpool Rear Cover14WP3368921 Whirlpool Screw15W10129030 Whirlpool Screw16WP9759944 Whirlpool Thermostat17Cover, Cooktop Rear20Gasket21W10491985 Whirlpool Screw22WPW10406243 Whirlpool Burner Head Auxiliary 6K22WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
