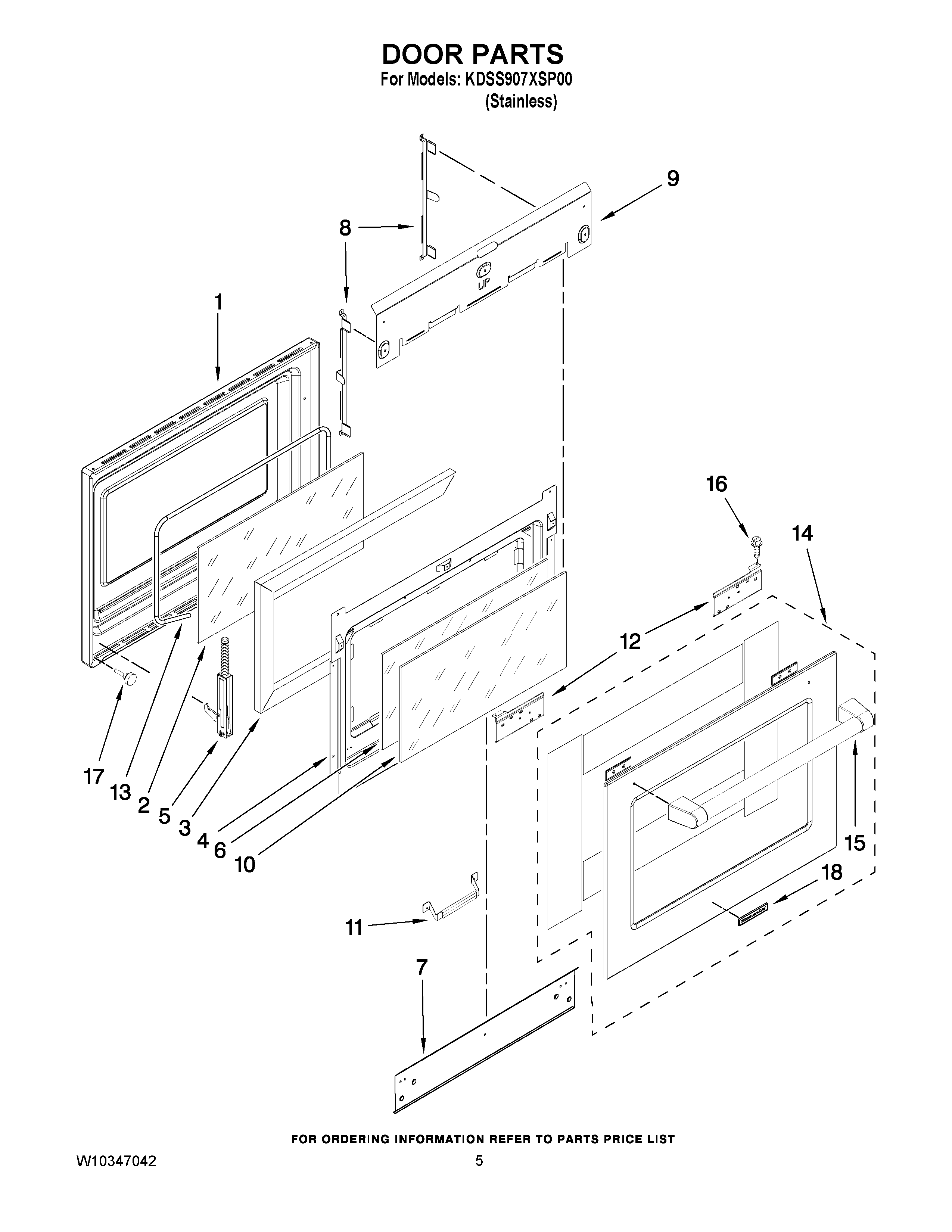

KDSS907XSP00 03 – DOOR PARTS

KDSS907XSP00 03 – DOOR PARTS

Written by

in

KDSS907XSP00 03 – DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9757706 Whirlpool Door Inner Glass
3WP4451722 Whirlpool Door Insulation Assembly
4WP4457132 Whirlpool Retainer
5HINGE-DOOR LH/SS DOOR SPRING
5WP9760579 Whirlpool Right Door Hinge
74457114 Whirlpool Oven Heat Shield
8WP9759229 Whirlpool Mounting Bracket
9SHIELD, HEAT TOP
10WP9759225 Whirlpool Inner Door Glass
11Bracket (3rd Glsss)
12BRACKET, HANDLE (RIGHT)
12BRACKET, HANDLE (LEFT)
138522415 Whirlpool Oven Wind Gasket
14DOOR ASSEMBLY, OUTER
15W10246102A Whirlpool Range Oven Door Handle
16WP3400074 Whirlpool Dishwasher Screw
174448520 Whirlpool Oven Bumper
18WPW10320959 Whirlpool Dishwasher Nameplate
