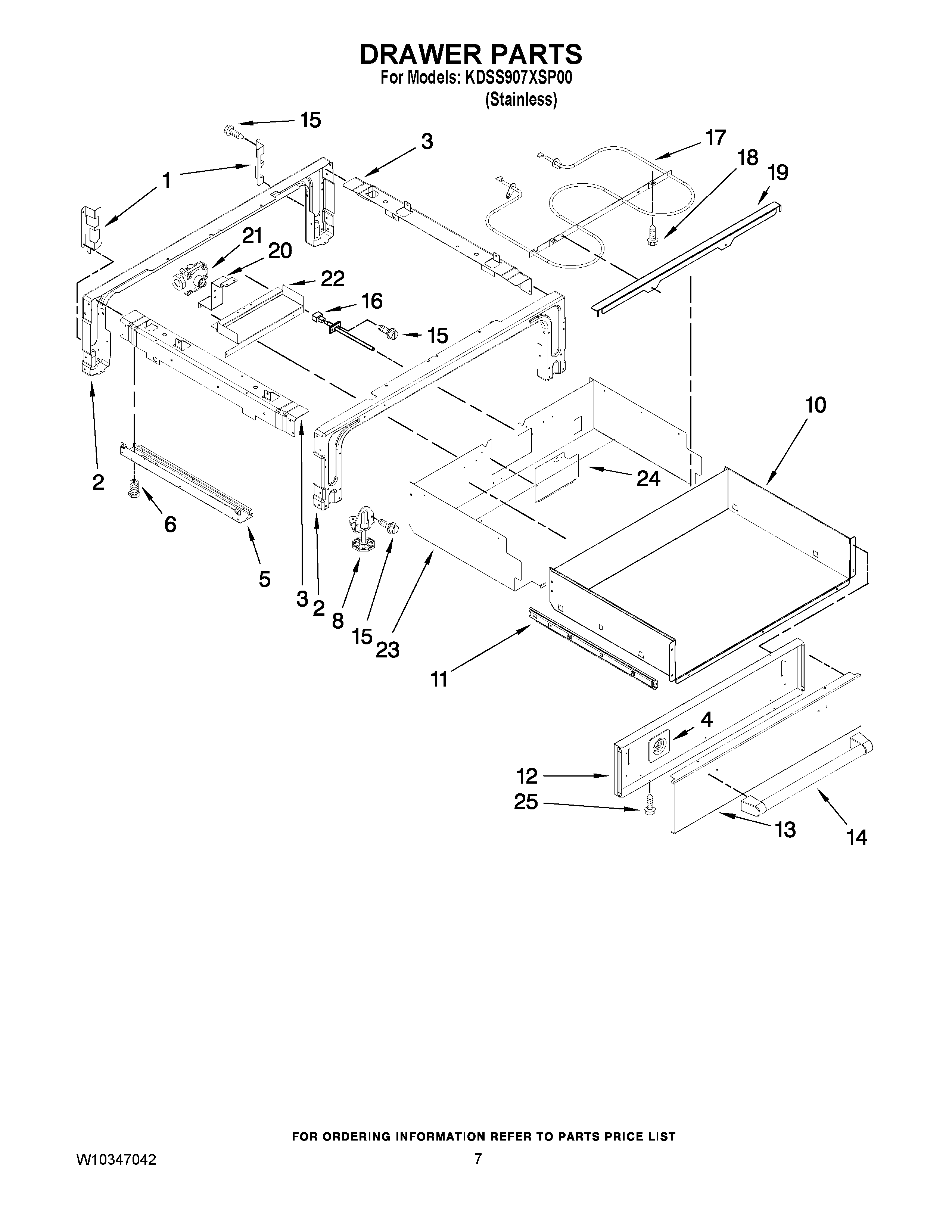

KDSS907XSP00 04 – DRAWER PARTS

Products

Position	Product
1	Support (L.Hand)
1	Support (R.Hand)
2	Support, Front & Rear
3	Brace, Drawer (Left)
3	Brace, Drawer (Right)
4	SPACER, HANDLE
5	Side, Base (R.Side)
5	Side, Base (L.Side)
6	WPW10058460 Whirlpool Appliance Levelling Leg
8	WP3196037 Whirlpool Leveling Foot
10	DRAWER
11	WPW10155633 Whirlpool Drawer Slide Rail
11	WPW10155632 Whirlpool Slide Drawer Assembly
12	PANEL, DRAWER
13	FRONT, DRAWER
14	W10246102A Whirlpool Range Oven Door Handle
15	Screw
16	WP8274149 Whirlpool Sensor Assembly
17	ELEMENT, WARMING DRAWER
18	WP4449809 Whirlpool Screw
19	Support, Element
20	Bracket, Regulator
21	Regulator
22	Cover, Terminal
23	Enclosure, Warming Drawer
24	Cover, Access
25	WP3196557 Whirlpool Screw
