KDSS907XSP00 08 – TRIPLE CROWN BURNER

KDSS907XSP00 08 – TRIPLE CROWN BURNER

Written by

in

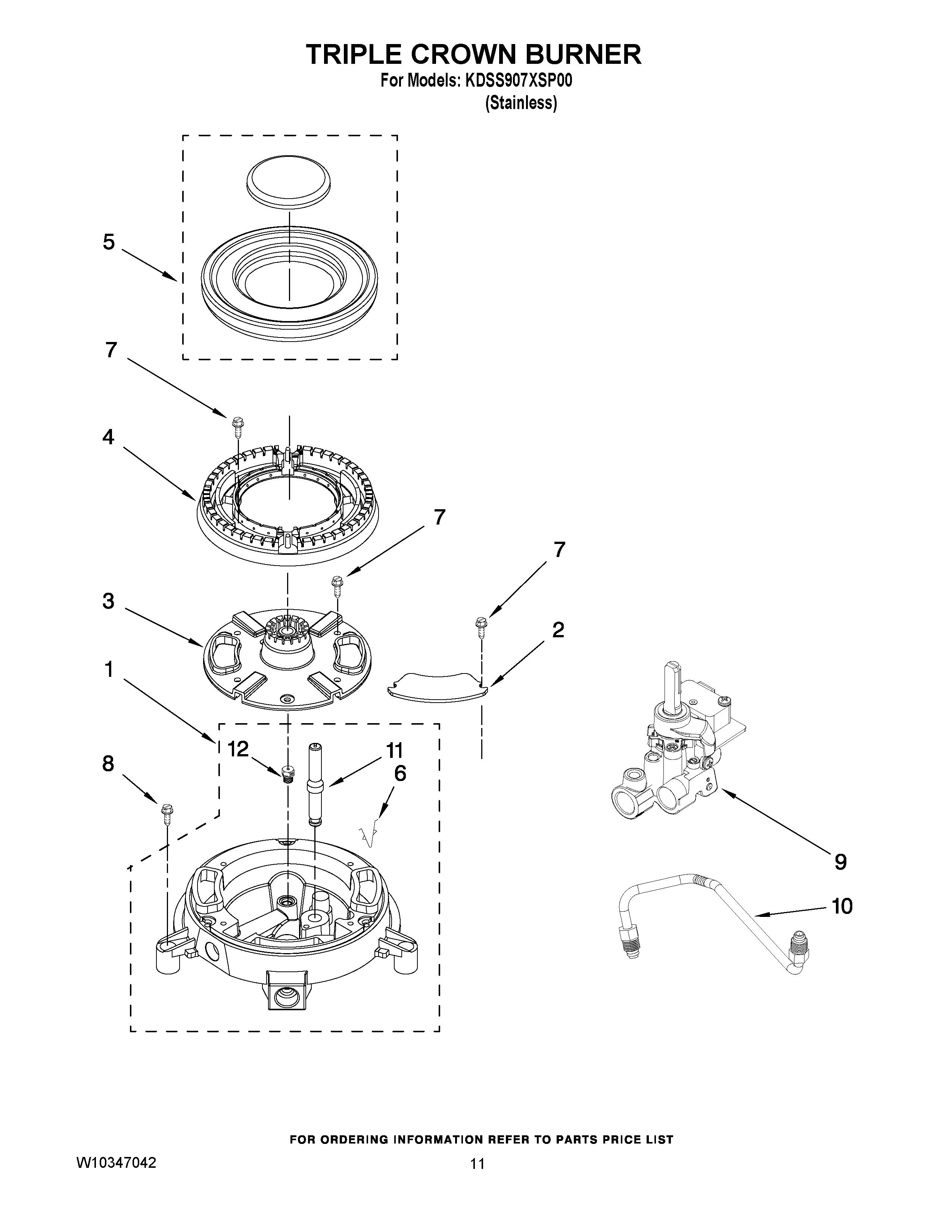

KDSS907XSP00 08 – TRIPLE CROWN BURNER

Products

PositionProduct
1WP9761639 Whirlpool Orifice Holder
28285250 Whirlpool Oven Cover Plate
3WP8285255 Whirlpool Burner Head
4WP8285256 Whirlpool Burner Head
5WPW10065280 Whirlpool Burner Cap
6CLIP, SPRING IGNITER
7WP3400702 Whirlpool Screw
8WP12990527 Whirlpool Microwave Screw
9VALVE, TCB
10TUBE, T.C.B. GAS (INNER)
109761072 Whirlpool Oven Gas Tubing
11WP9763494 Whirlpool Surface Igniter
129762443 Whirlpool Oven Orifice Spud
12Orifice (External)
