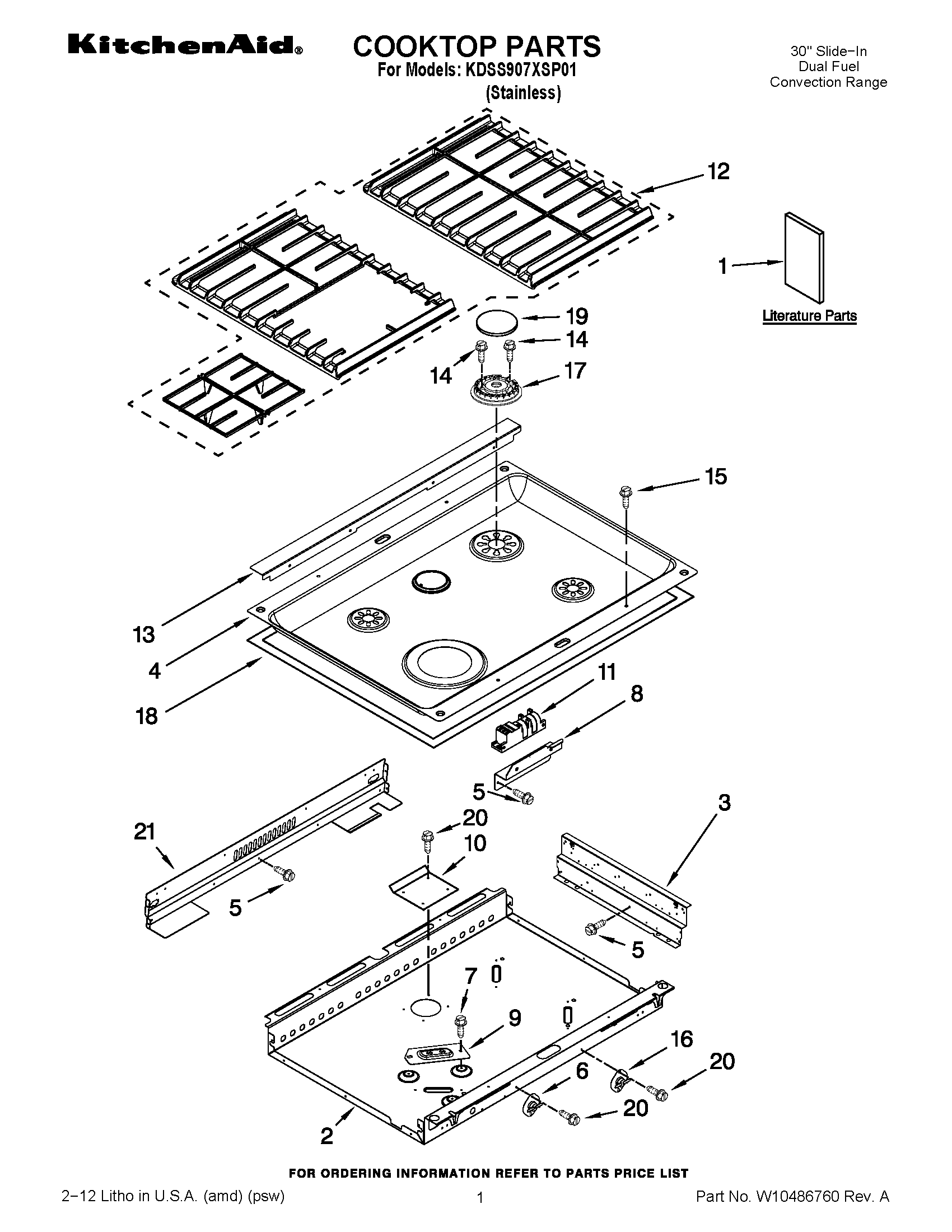

KDSS907XSP01 01 – COOKTOP PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Easy Set Guide
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet
2	BURNER BOX
3	Bracket, Mounting
4	Cooktop
5	WP3196557 Whirlpool Screw
6	WP9757807 Whirlpool High Limit Thermostat
7	WP12990527 Whirlpool Microwave Screw
8	Bracket, Spark Module
9	Bracket, Burner
10	Shield, Heat
11	WPW10110491 Whirlpool Spark Module
12	W10338795 Whirlpool Grate Kit Assembly
13	WP9763436 Whirlpool Rear Cover
14	WP3368921 Whirlpool Screw
15	W10129030 Whirlpool Screw
16	WP9759944 Whirlpool Thermostat
17	WPW10406243 Whirlpool Burner Head Auxiliary 6K
17	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
18	Gasket
20	W10491985 Whirlpool Screw
21	Cover, Cooktop Rear
