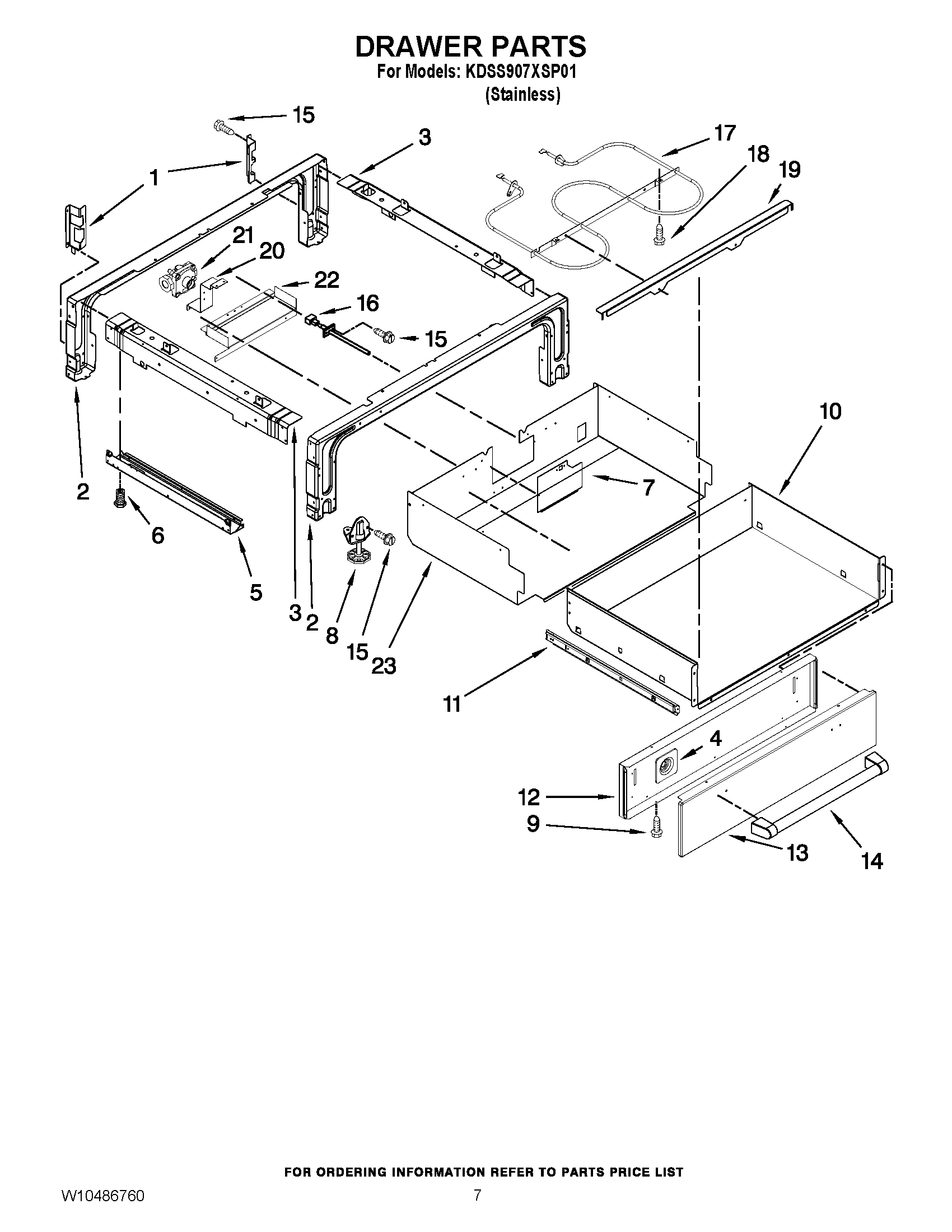

KDSS907XSP01 04 – DRAWER PARTS

Products

PositionProduct
1Support (R.Hand)
1Support (L.Hand)
2Support, Front & Rear
3Brace, Drawer (Left)
3Brace, Drawer (Right)
4SPACER, HANDLE
5Side, Base (R.Side)
5Side, Base (L.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7Cover, Access
8WP3196037 Whirlpool Leveling Foot
9WP3196557 Whirlpool Screw
10DRAWER
11WPW10155633 Whirlpool Drawer Slide Rail
11WPW10155632 Whirlpool Slide Drawer Assembly
12PANEL, DRAWER
13FRONT, DRAWER
14W10246102A Whirlpool Range Oven Door Handle
15Screw
16WP8274149 Whirlpool Sensor Assembly
17ELEMENT, WARMING DRAWER
18SCREW
19Support, Element
20Bracket, Regulator
21Regulator
22Cover, Terminal
23Enclosure, Warming Drawer
