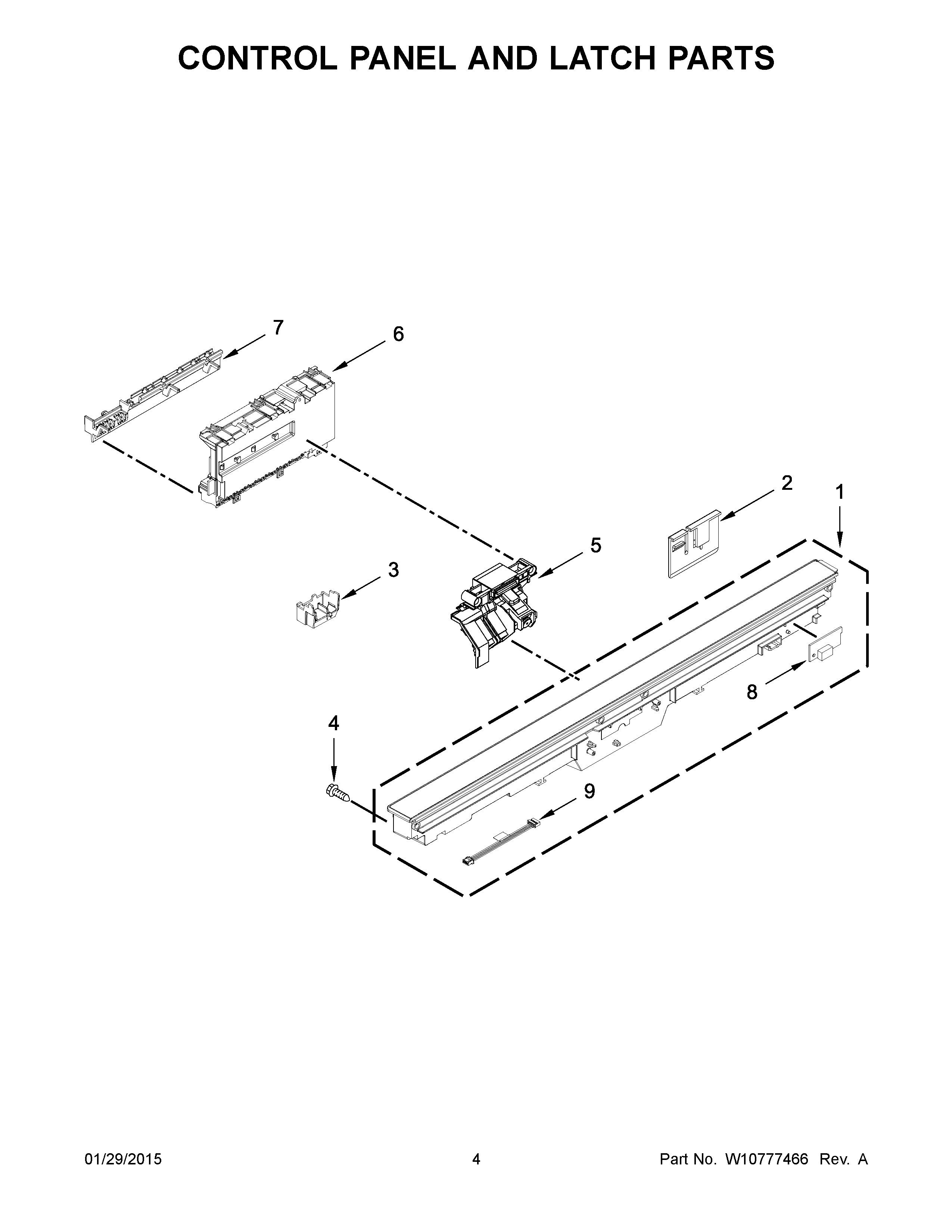

KDTE104DBL1 03 – CONTROL PANEL AND LATCH PARTS

KDTE104DBL1 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTE104DBL1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1AW10537411 Whirlpool Dishwasher Control Panel
1WPW10537410 Whirlpool Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10854215 Whirlpool Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10538035 Whirlpool Dishwasher Indicator Light
9W10528492 Whirlpool Dishwasher Wire
