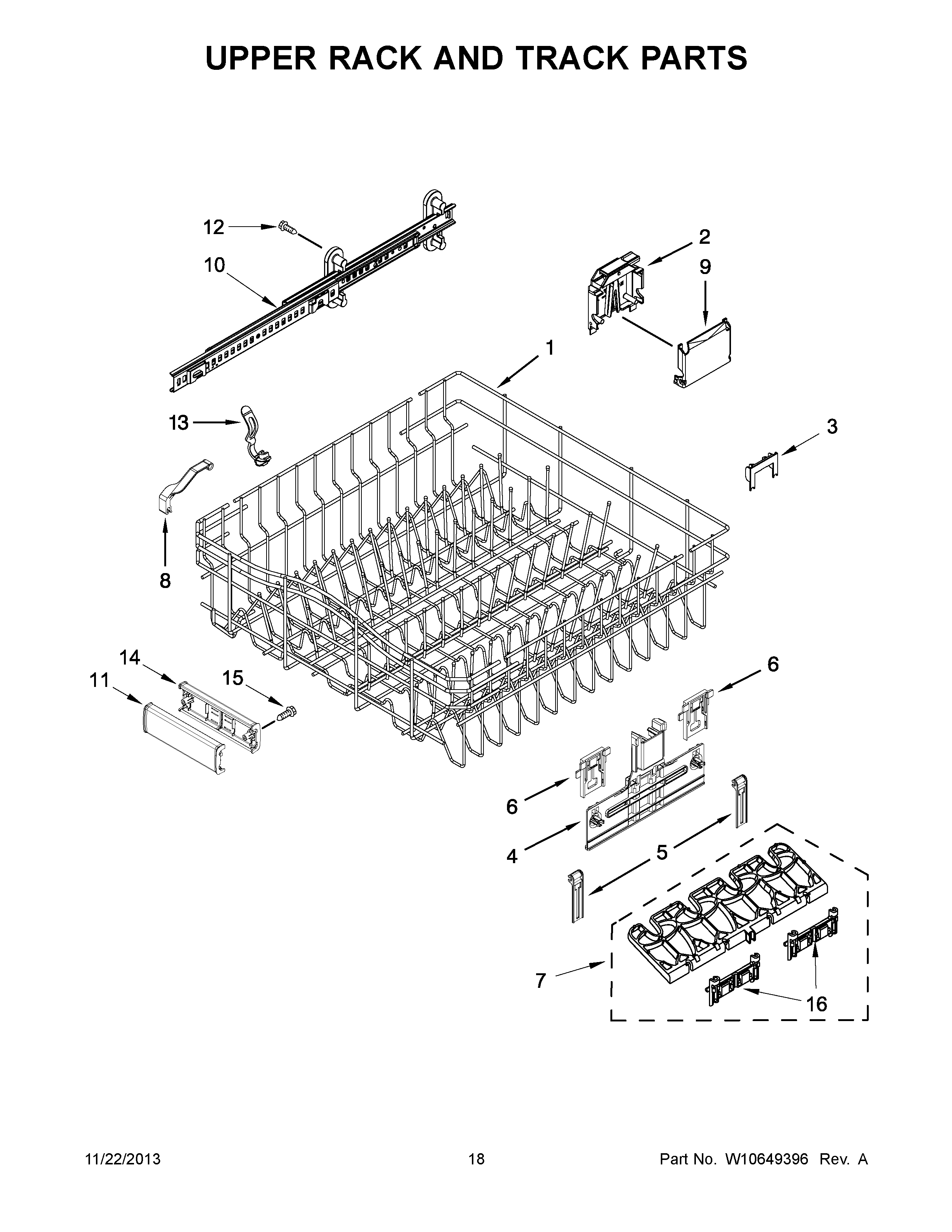

KDTE104DWH0 10 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	WPW10350382 Whirlpool Dishwasher Dishrack
2	WPW10588165 Whirlpool Adjuster Housing
2	WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3	WPW10250160 Whirlpool Clip
4	WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5	WPW10195839 Whirlpool Dishwasher Rack Adjuster
6	WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7	WPW10082649 Whirlpool Dishwasher Cup Shelf
8	WPW10267076 Whirlpool Guard Clip
9	COVER
10	W11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
10	W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
12	WPW10309090 Whirlpool Dishwasher Screw
13	WP8539101 Whirlpool Dishwasher Clip
14	W11110542 Whirlpool Dishwasher Handle
15	WP9741232 Whirlpool Dishwasher Screw
16	WPW10082848 Whirlpool Clip
