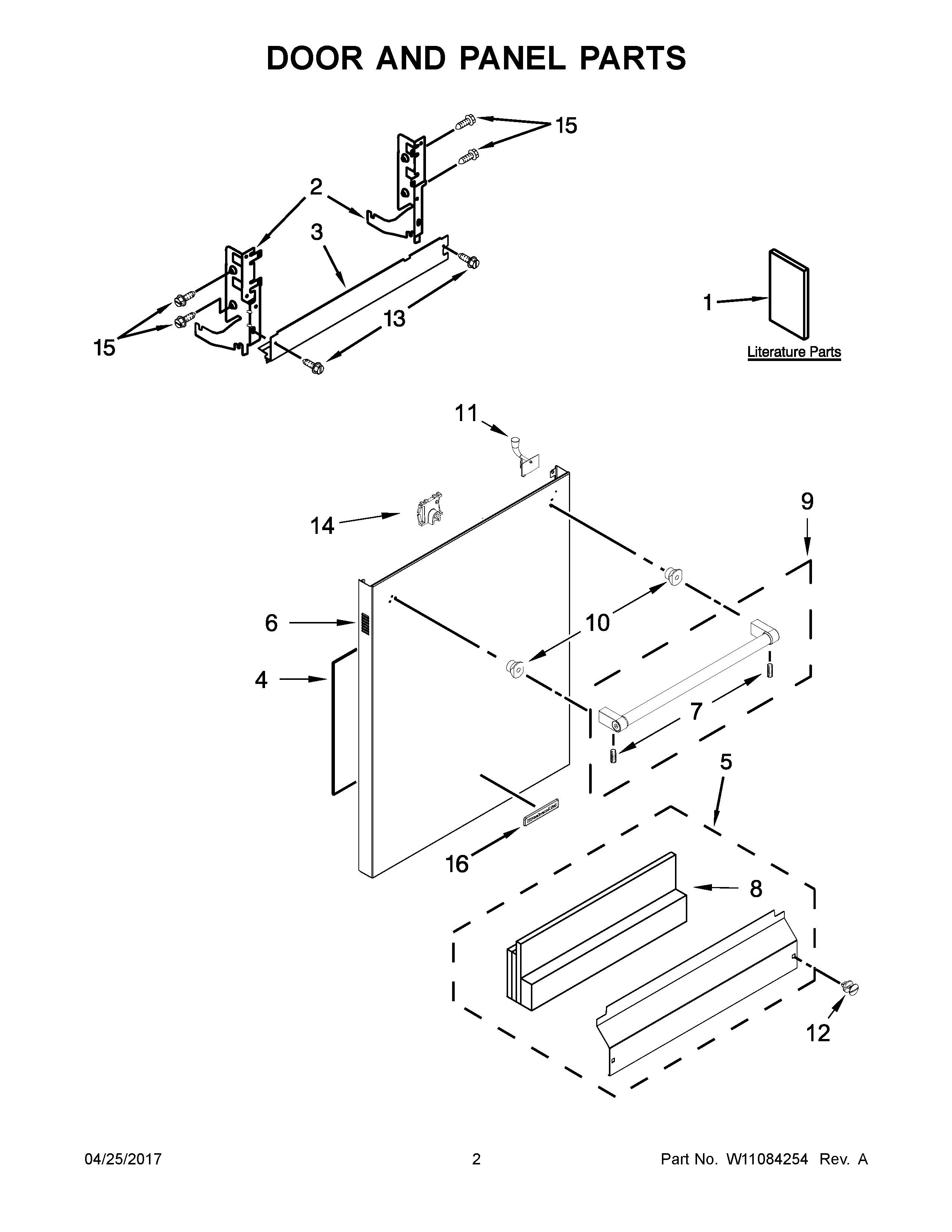

KDTE104EBL4 02 – DOOR AND PANEL PARTS

KDTE104EBL4 02 – DOOR AND PANEL PARTS

Written by

in

KDTE104EBL4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1CTECH SHEET
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5WPW10526114 Whirlpool Dishwasher Access Panel
5AWPW10526115 Whirlpool Dishwasher Panel
6CW10900373 Whirlpool Panel
6AW10901499 Whirlpool Dishwasher Control Panel
6BW10900374 Whirlpool Dishwasher Door Panel, Stainless
6W10901498 Whirlpool Dishwasher Panel
7W10917698 Whirlpool Dishwasher Screw
8SHIELD
9W10708004 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10901145 Whirlpool Dishwasher Indicator Light
12AWPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
13WP489069 Whirlpool Compactor Screw
14W10692757 Whirlpool Dishwasher Nut Assembly
15WP3400071 Whirlpool Screw
16W10839793 Whirlpool Refrigerator Nameplate
