KDTE104EWH0 02 – DOOR AND PANEL PARTS

KDTE104EWH0 02 – DOOR AND PANEL PARTS

Written by

in

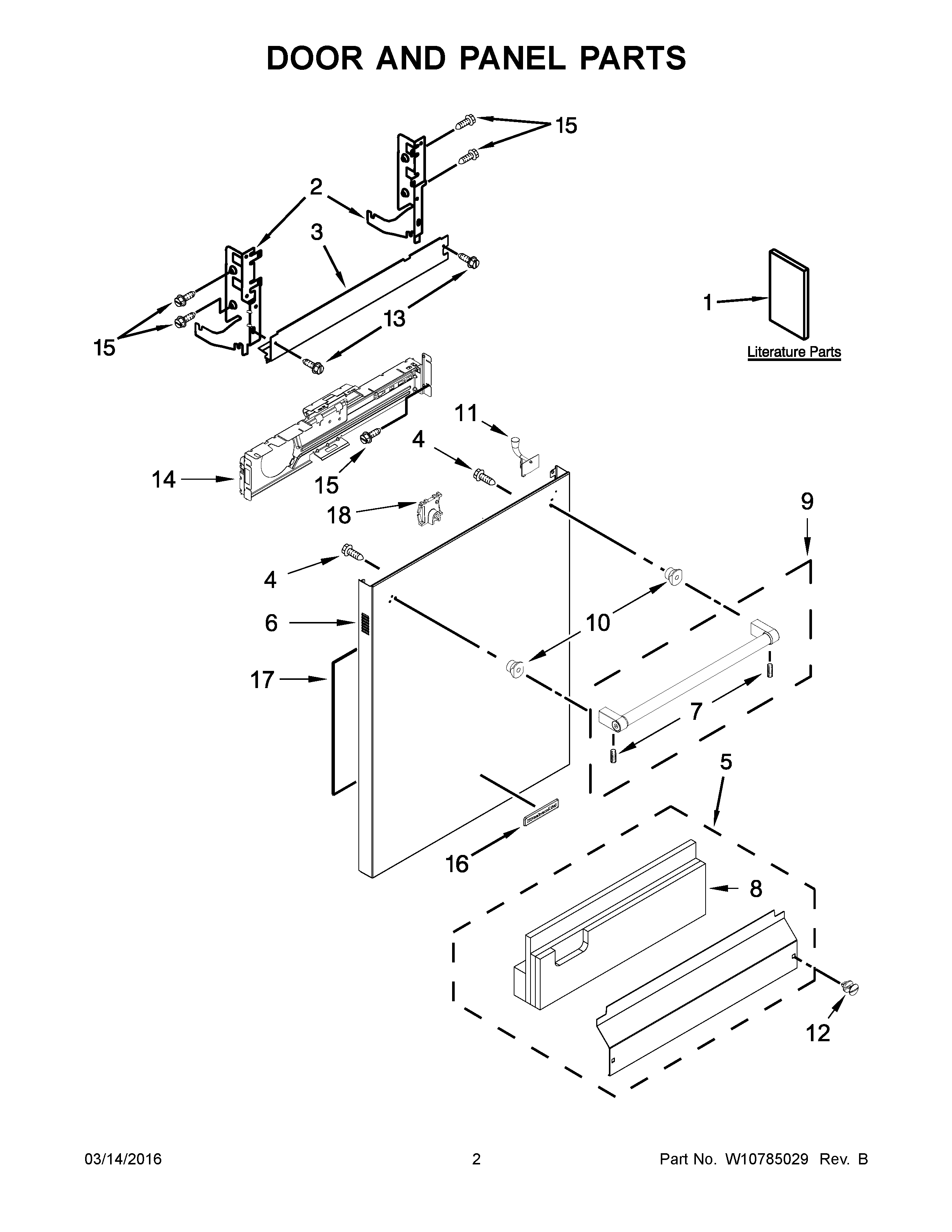

KDTE104EWH0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET, FRENCH
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1AENERGY GUIDE
1DTECH SHEET, ENGLISH
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10919287 Whirlpool Dishwasher Screw
5WPW10526115 Whirlpool Dishwasher Panel
5AWPW10526114 Whirlpool Dishwasher Access Panel
6W10901498 Whirlpool Dishwasher Panel
6AW10911301 Whirlpool Dishwasher Panel
6BW10900374 Whirlpool Dishwasher Door Panel, Stainless
7W10917698 Whirlpool Dishwasher Screw
8SHIELD
9W10708004 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10831645 Whirlpool Dishwasher Indicator Light
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12AWPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16W10839793 Whirlpool Refrigerator Nameplate
17WPW10073520 Whirlpool Dishwasher Insulation Pad
18W10692757 Whirlpool Dishwasher Nut Assembly
