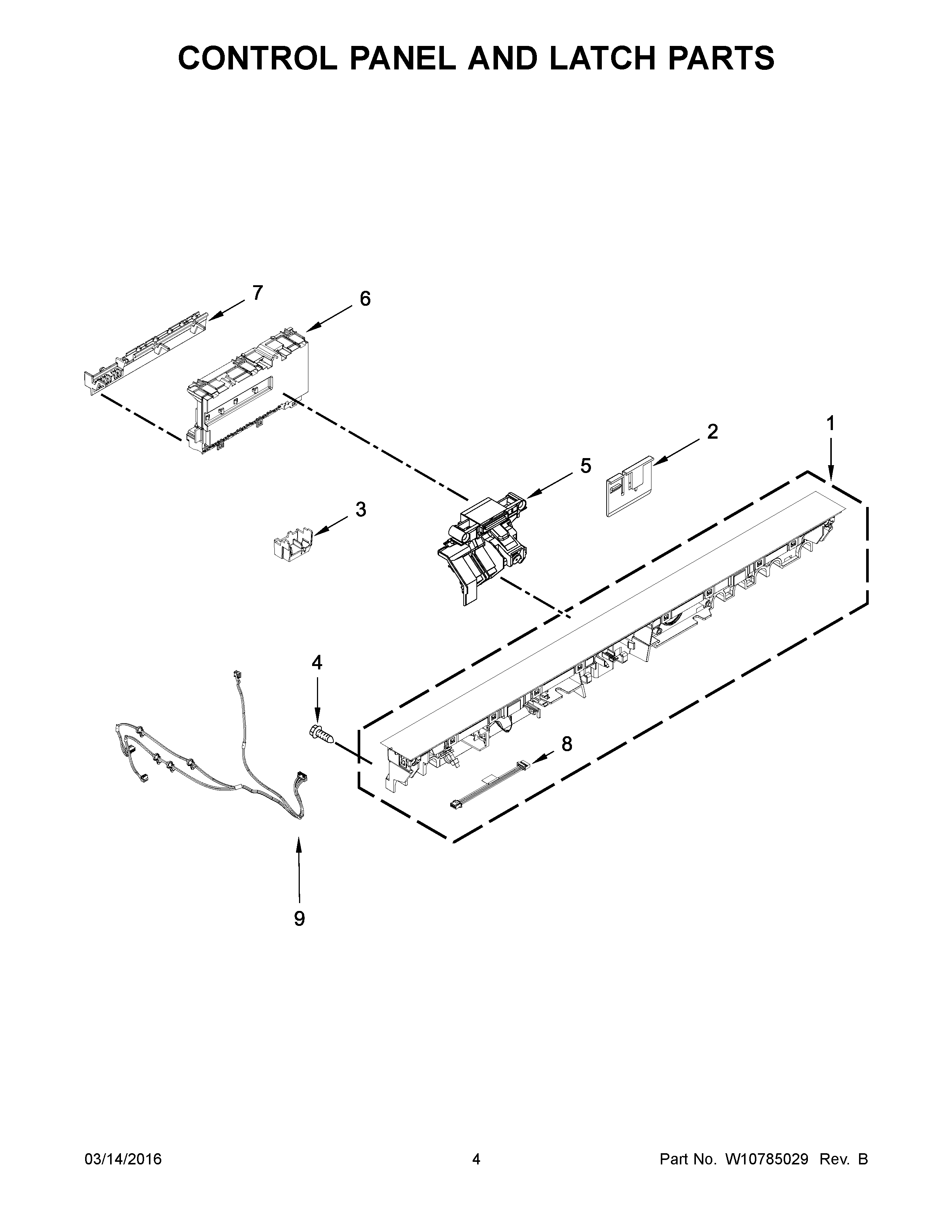

KDTE104EWH0 03 – CONTROL PANEL AND LATCH PARTS

KDTE104EWH0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTE104EWH0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1AW10903577 Whirlpool Dishwasher Control Panel
1W10903576 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10854225 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10566919 Whirlpool Dishwasher Wire
9W10751781 Whirlpool Dishwasher Wire
