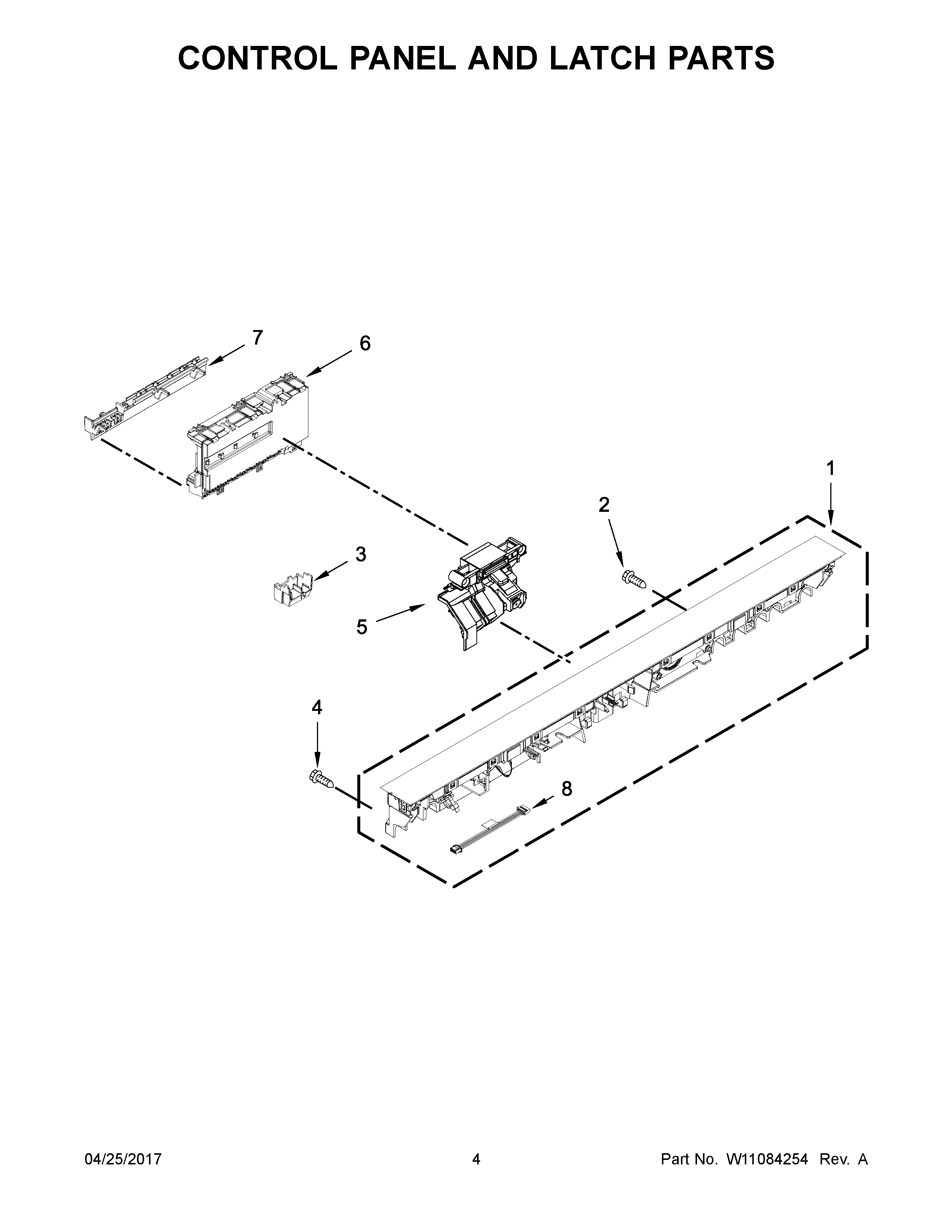

KDTE104EWH4 03 – CONTROL PANEL AND LATCH PARTS

KDTE104EWH4 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTE104EWH4 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11085681 Whirlpool Dishwasher Console + Core
1AW11085682 Whirlpool Dishwasher Console + Core
2WPW10213953 Whirlpool Screw
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W11305294 Whirlpool Dishwasher Electronic Control Board
7W11305293 Whirlpool Dishwasher Electronic Control Board
8W10792164 Whirlpool Dishwasher Wire
