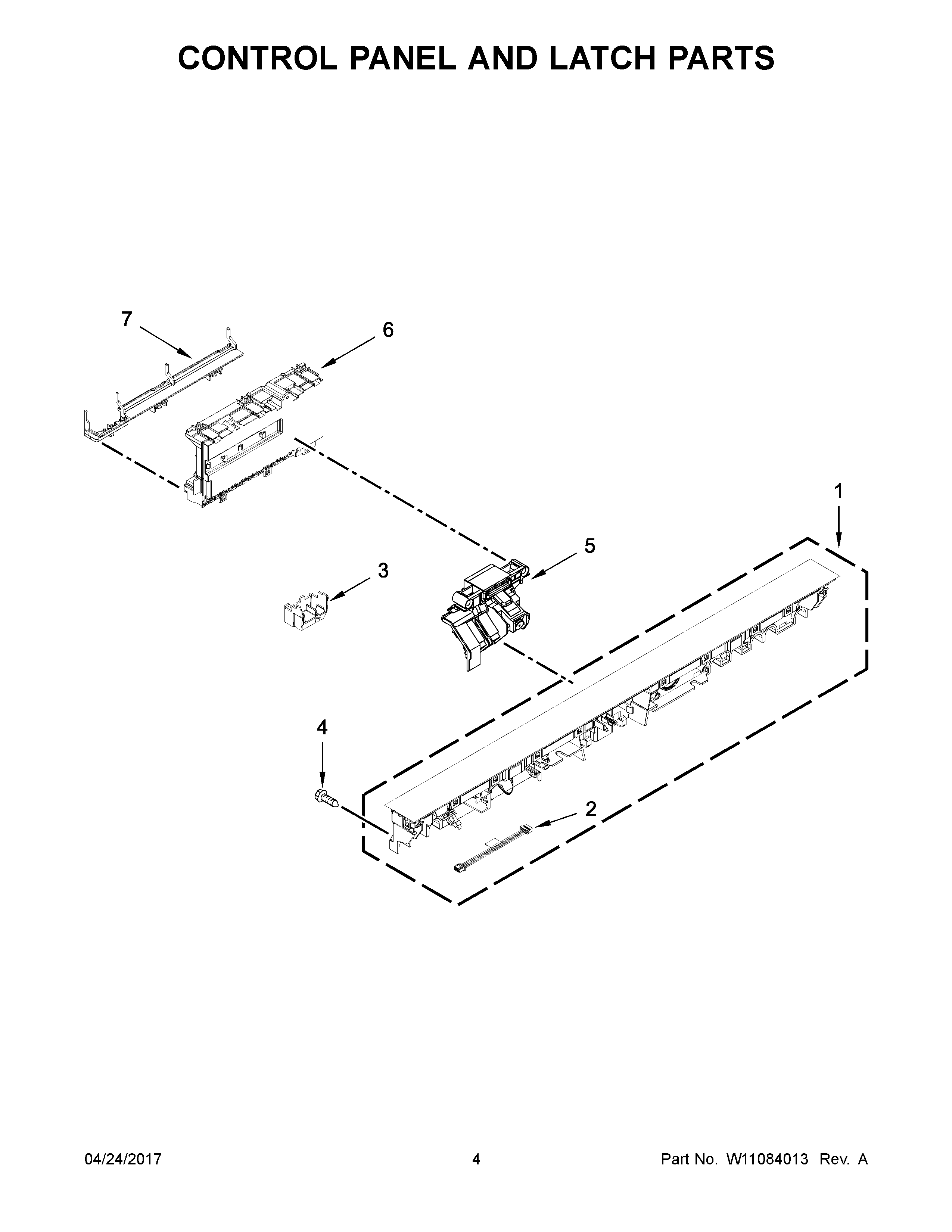

KDTE204EBL4 03 – CONTROL PANEL AND LATCH PARTS

KDTE204EBL4 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTE204EBL4 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11085572-includeCORE Whirlpool W11085572 Dishwasher Console and Core
1AW11085680 Whirlpool Dishwasher Console + Core
2W10792164 Whirlpool Dishwasher Wire
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W11305294 Whirlpool Dishwasher Electronic Control Board
7W11305293 Whirlpool Dishwasher Electronic Control Board
