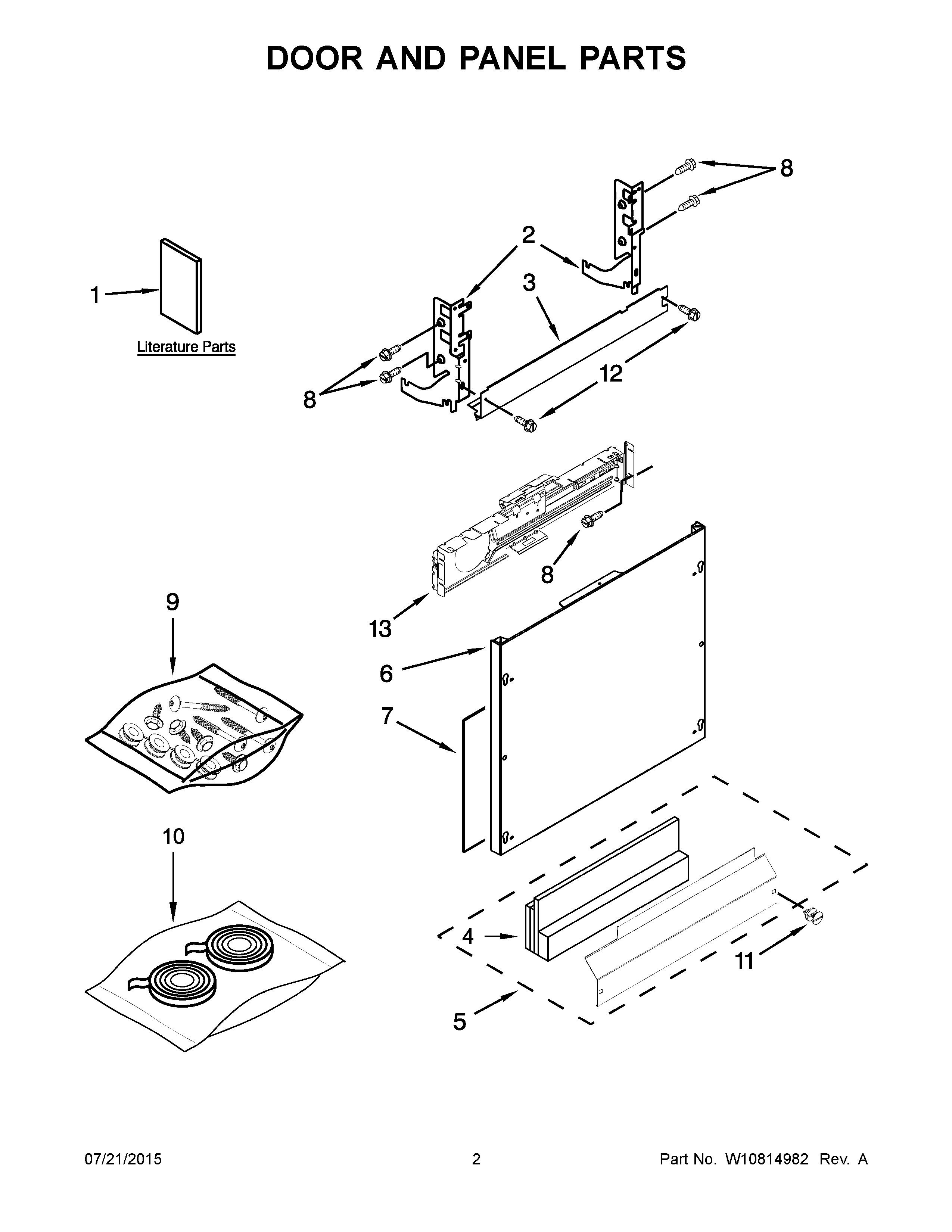

KDTE204EPA1 02 – DOOR PANEL PARTS

Products

Position	Product
1D	TECH SHEET, FRENCH
1C	TECH SHEET, ENGLISH
1E	TEMPLATE, 6" CUSTOM PANEL
1B	USE & CARE GUIDE
1A	ENERGY GUIDE
1	INSTALLATION INSTRUCTIONS
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	W11113792 Whirlpool Dishwasher Panel
7	W10234565 Whirlpool Dishwasher Insulation Pad
8	WP3400071 Whirlpool Screw
9	WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
10	WPW10366978 Whirlpool Dishwasher Seal
11	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WP302868 Whirlpool Screw
13	W11116870 Whirlpool Dishwasher Control Bracket
