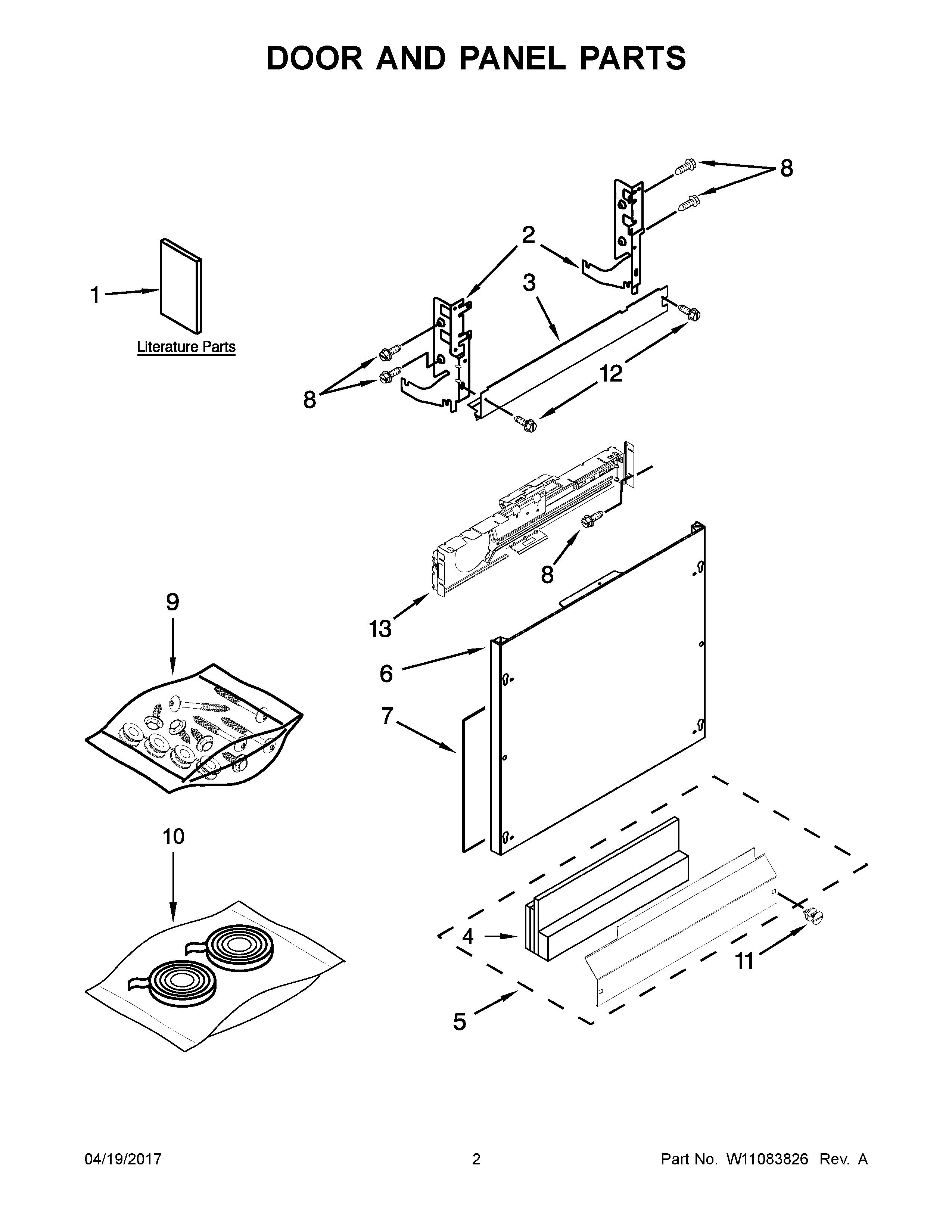

KDTE204EPA4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1AENERGY GUIDE
1ETEMPLATE, 6" CUSTOM PANEL
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526114 Whirlpool Dishwasher Access Panel
6W11113792 Whirlpool Dishwasher Panel
7W10234565 Whirlpool Dishwasher Insulation Pad
8WP3400071 Whirlpool Screw
9WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
10WPW10366978 Whirlpool Dishwasher Seal
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WP302868 Whirlpool Screw
13WPW10350242 Whirlpool Dishwasher Control Bracket
