KDTE204EPA4 03 – CONTROL PANEL AND LATCH PARTS

KDTE204EPA4 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

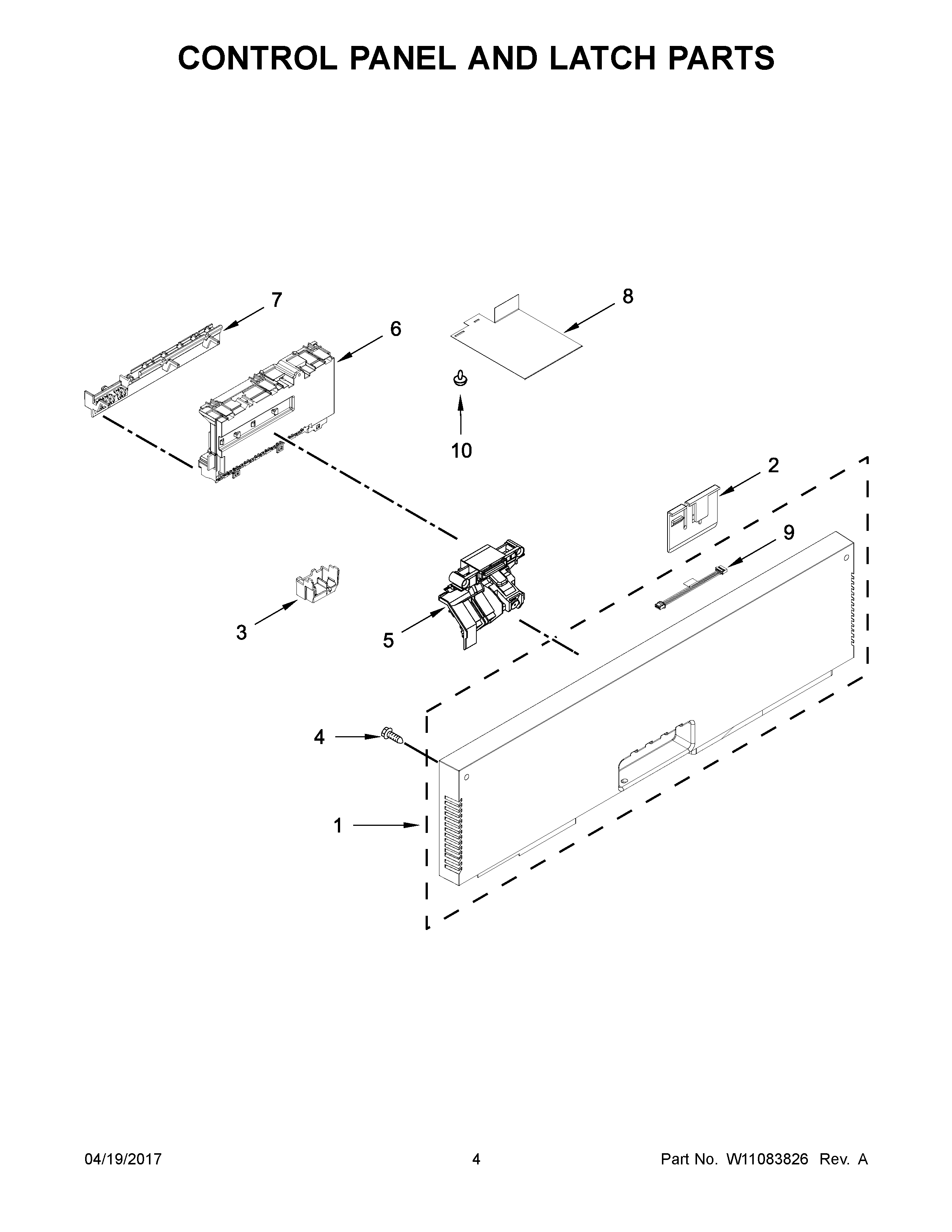

KDTE204EPA4 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11084650 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
4WPW10348409 Whirlpool Screw
5WPW10653840 Whirlpool Door Latch
7W11305293 Whirlpool Dishwasher Electronic Control Board
8SHIELD, CONTROL
9W10792164 Whirlpool Dishwasher Wire
10WP3400924 Whirlpool Dishwasher Retainer
