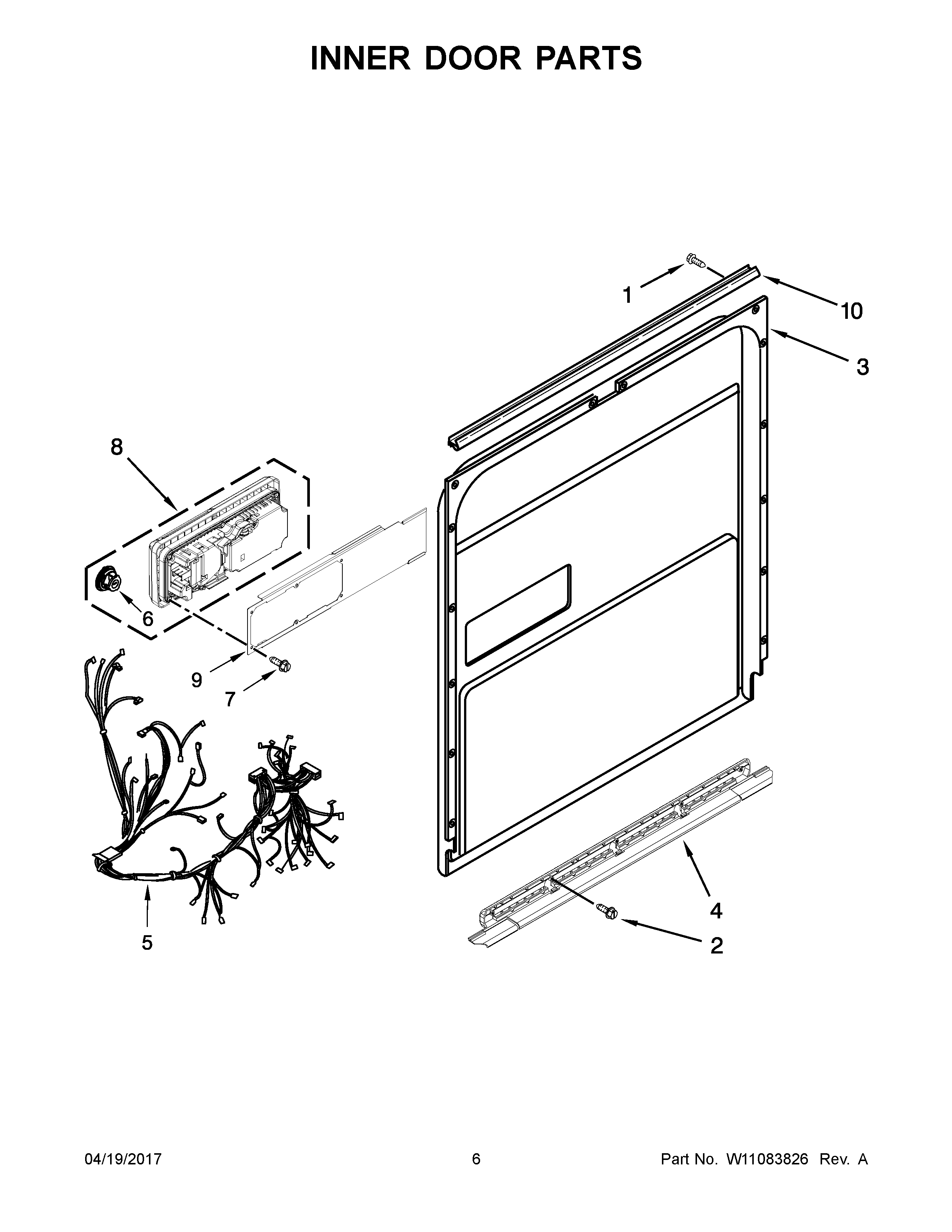

KDTE204EPA4 04 – INNER DOOR PARTS

KDTE204EPA4 04 – INNER DOOR PARTS

Written by

in

KDTE204EPA4 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5W10834764 Whirlpool Dishwasher Wire Harness
6WPW10524919 Whirlpool Dishwasher Dispenser Cap
7WPW10177098 Whirlpool Dishwasher Screw
8DISPENSER (DISHWASHER)
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10WPW10195007 Whirlpool Dishwasher Seal
