KDTE204ESS0 04 – INNER DOOR PARTS

KDTE204ESS0 04 – INNER DOOR PARTS

Written by

in

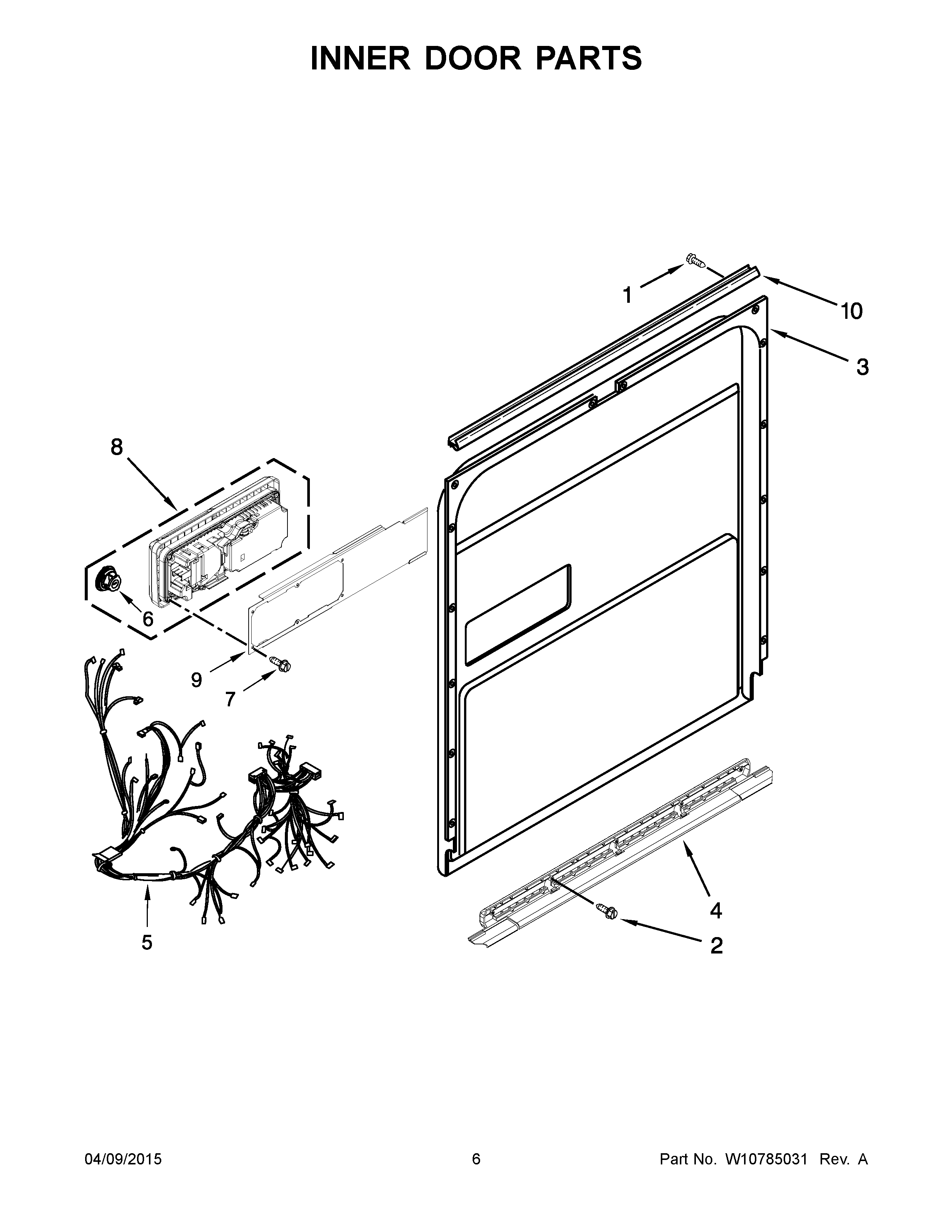

KDTE204ESS0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5W11027902 Whirlpool Dishwasher Wire Harness
6WPW10524919 Whirlpool Dishwasher Dispenser Cap
7WPW10177098 Whirlpool Dishwasher Screw
8DISPENSER (DISHWASHER)
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10W11213719 Whirlpool Dishwasher Seal
