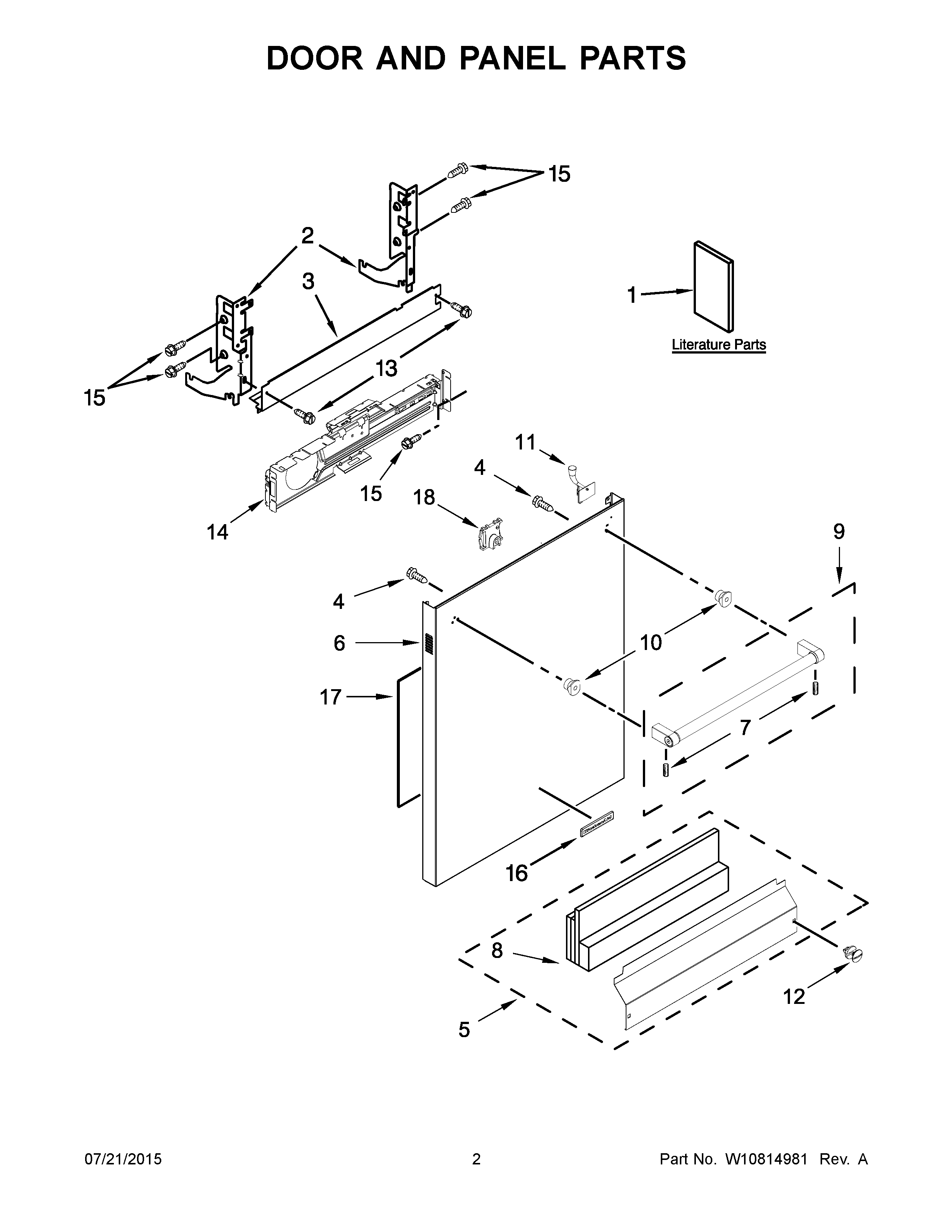

KDTE204ESS1 02 – DOOR PANEL PARTS

Products

Position	Product
1D	TECH SHEET, FRENCH
1B	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1A	ENERGY GUIDE
1C	TECH SHEET, ENGLISH
2A	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10919287 Whirlpool Dishwasher Screw
5A	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	W10901498 Whirlpool Dishwasher Panel
6A	W10911301 Whirlpool Dishwasher Panel
6B	W10900374 Whirlpool Dishwasher Door Panel, Stainless
7	W10917698 Whirlpool Dishwasher Screw
8	SHIELD
9	W10708004 Whirlpool Dishwasher Handle
10	W11157086 Whirlpool Dishwasher Door Handle Stud
11	W10831645 Whirlpool Dishwasher Indicator Light
12	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12A	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
14	W11116870 Whirlpool Dishwasher Control Bracket
15	WP3400071 Whirlpool Screw
16	W10839793 Whirlpool Refrigerator Nameplate
17	WPW10073520 Whirlpool Dishwasher Insulation Pad
18	W10692757 Whirlpool Dishwasher Nut Assembly
