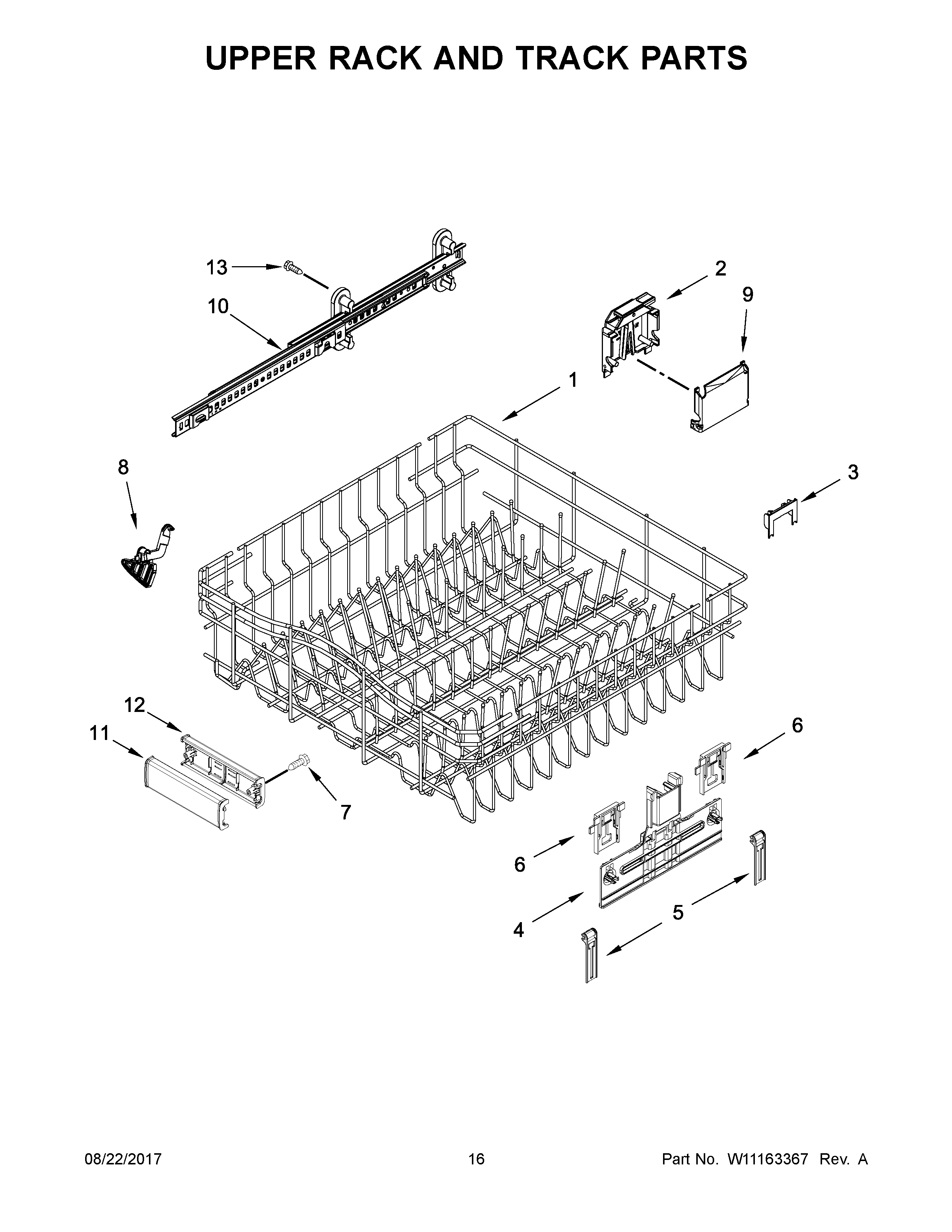

KDTE234GBS0 09 – UPPER RACK AND TRACK PARTS

KDTE234GBS0 09 – UPPER RACK AND TRACK PARTS

Written by

in

KDTE234GBS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10312792 Whirlpool Dishwasher Dishrack
2AWPW10588165 Whirlpool Adjuster Housing
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
3WPW10250160 Whirlpool Clip
4WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WP9741232 Whirlpool Dishwasher Screw
8W10919676 Whirlpool Dishwasher Dispenser Guard Clip
9COVER
10W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
10AW11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
12W11110542 Whirlpool Dishwasher Handle
13WPW10309090 Whirlpool Dishwasher Screw
